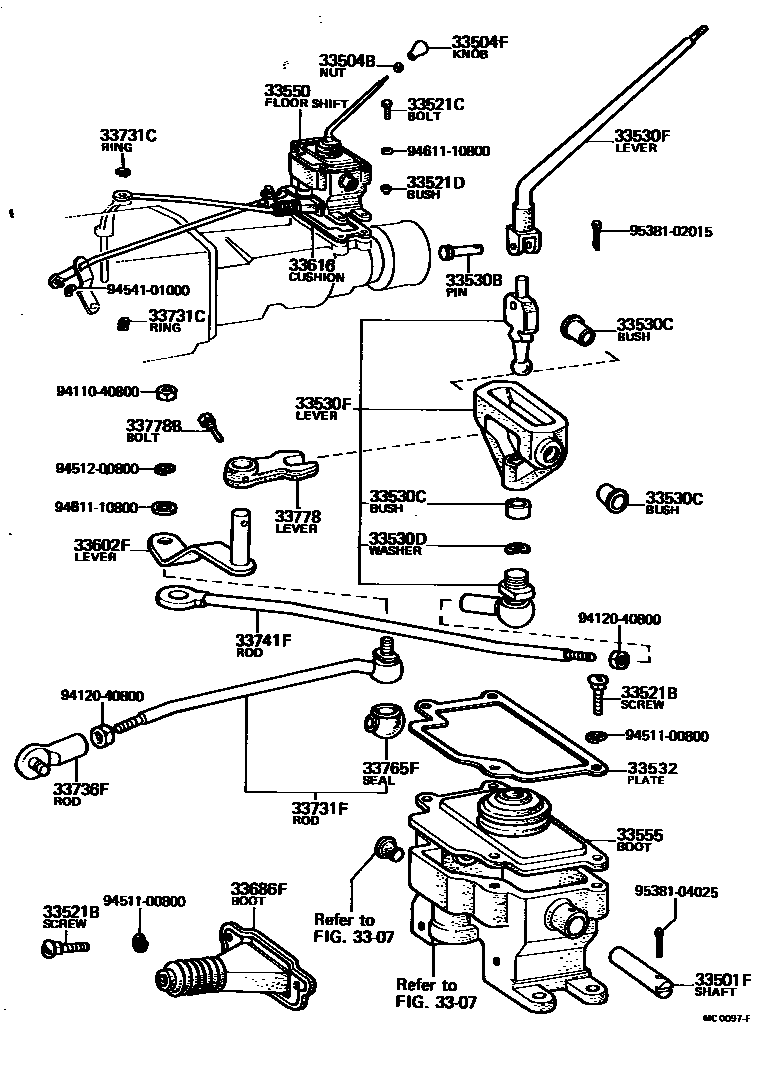

SHIFT LEVER & RETAINER
3307GEAR SHIFT FORK & LEVER SHAFT (MTM)
33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33504BNUT, HEXAGON
33504FKNOB SUB-ASSY, SHIFT LEVER
33521BSCREW (FOR SHIFT LEVER HOUSING)
33521CBOLT (FOR SHIFT LEVER HOUSING)
33521DBUSH (FOR SHIFT LEVER HOUSING)
33530BPIN, SLOTTED SPRING (FOR SHIFT LEVER)
33530CBUSH (FOR SHIFT LEVER)
OD=16.5,L=11
ID=13,L=11.5
33530DWASHER, WAVE (FOR SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
LWR
UPR
33532PLATE, DUST BOOT
33550FLOOR SHIFT ASSY, TRANSMISSION
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33616CUSHION, SHIFT LEVER RETAINER
33686FBOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)
33731CRING, SHAFT SNAP (FOR GEAR SELECTING ROD)
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33736FROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33765FSEAL, CONNECTING ROD END DUST (FOR FLOOR SHIFT)
33778LEVER, CROSS SHAFT, NO.1
33778BBOLT(FOR CROSS SHAFT LEVER, NO.1)
9411040800
main94110-40800
9412040800
main94120-40800
9451100800
main94511-00800
9451200800
main94512-00800
9454101000
main94541-01000
9461110800
main94611-10800
9538102015
main95381-02015
9538104025
main95381-04025
32 parts on this diagram · 4 diagrams in section
