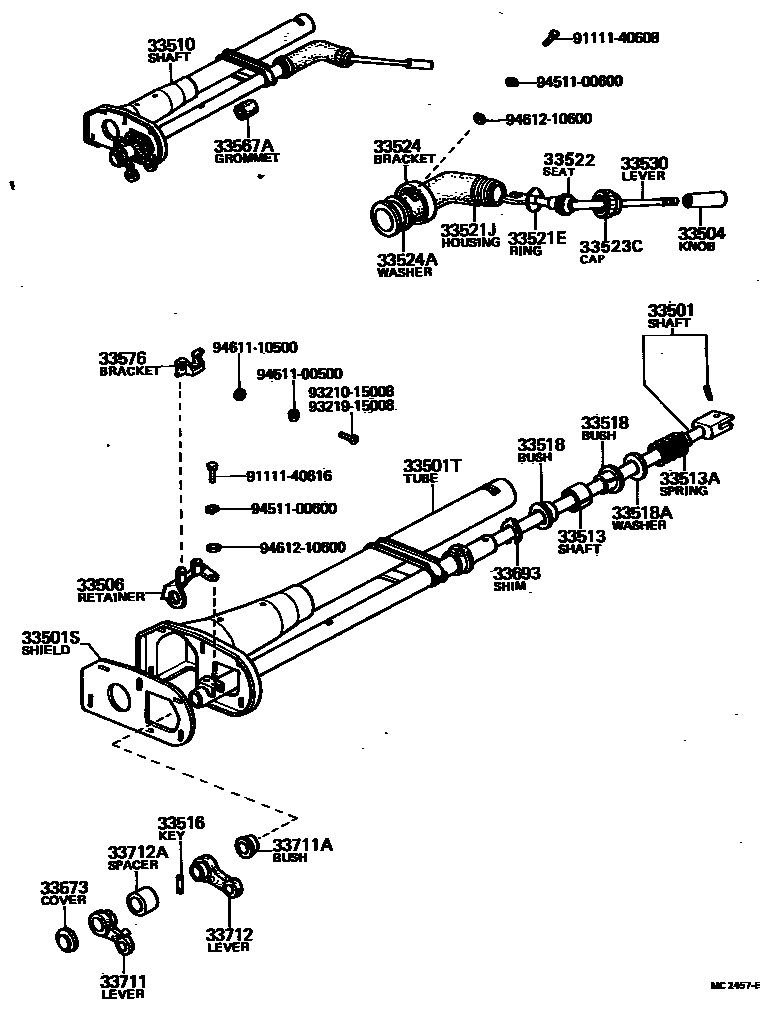

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-40040iVG2#,3#..B,C,D196711-198209

33501SSHIELD, CONTROL SHAFT TUBE

main45254-40010iVG20..B,C,D196711-196903

main45254-40020iVG20..B,C,D196903-197302

33501TTUBE SUB-ASSY, CONTROL SHAFT

main45204-40051iVG20..B,C,D196711-196903

main45204-40080iVG20..B,C,D196903-197302

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33542-40011iVG2#,3#..B,C,D196711-198209

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-40021iVG2#,30..ATM196711-197811

main33506-40022iVG35197811-198005

main33506-40040iVG35198005-198011

main33506-40041iVG35198011-198209

main33575-40030iVG20..B196711-196808

main33575-40031iVG2#..B196808-197405

33510SHAFT ASSY, CONTROL W/STEERING COLUMN

main33510-40010iVG20..ATM196711-196903

main33510-40020iVG20..B196711-196903

main33510-40030iVG20..ATM196903-197302

main33510-40040iVG20..B196903-196912

main33510-40041iVG20..B196912-197302

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main90386-26083iVG2#,3#..B,C,D196711-198209

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-16098iVG2#,3#..B,C,D196711-198209

33516KEY, CONTROL LEVER SELECTING

main33516-20020iVG2#..B196711-197405

33518BUSH, UPPER CONTROL SHAFT PIECE

main90386-18072iVG2#,3#..B,C,D196711-198209

UPR

main90386-26084iVG2#,3#..B,C,D196711-198209

LWR

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90201-19272iVG2#,3#..B,C,D196711-198209

33521ERING, O (FOR SHIFT LEVER HOUSING)

main90301-24033iVG2#,3#..B,C,D196711-198209

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-40010iVG2#..B196711-197405

main33521-40020iVG2#,3#..ATM196711-198209

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33597-40010iVG2#,3#..B,C,D196711-198209

33523CCAP, SHIFT LEVER (FOR COLUMN SHIFT)

main33554-40011iVG2#,3#..B,C,D196711-198209

33524BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR COLUMN SHIFT)

main33524-40010iVG2#,3#..B,C,D196711-198209

33524AWASHER, PLATE (FOR CONTROL LEVER HOUSING)

main90202-42054iVG2#,3#..B,C,D196711-198209

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-40020iVG2#,3#..B,C,D196711-198209

33567CLAMP, CONTROL SHAFT TUBE

main33567-40010iVG2#,3#..B,C,D196903-198209

UPR

main33568-40010iVG2#,3#..B,C,D196903-198209

LWR

33567AGROMMET (FOR CONTROL SHAFT TUBE)

main90480-34152iVG2#,3#..B,C,D196711-198209

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-20010iVG2#..B196711-197405

main33573-40020iVG2#,3#..ATM196711-198209

33576BRACKET, BACK-UP LAMP SWITCH

main33576-40010iVG2#..B196711-197405

33693SHIM, SHIFT LEVER ADJUSTING (FOR COLUMN SHIFT)

main33693-40011×2iVG2#,3#..B,C,D196711-198209

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33711-40010iVG2#,3#..ATM196711-198005

main33711-40020iVG20..B196711-196912

main33711-40021iVG2#..B196912-197405

main33711-40030iVG35198005-198209

33711ABUSH (FOR CONTROL SHAFT LEVER)

main90386-16071iVG2#,3#..B,C,D196711-198209

33712LEVER, CONTROL SHAFT

main33712-40010iVG20..B196711-196912

main33712-40011iVG2#..B196912-197405

33712ASPACER (FOR CONTROL SHAFT LEVER)

main90560-26089iVG20..B196711-196912

main90560-26267iVG2#..B196912-197405

9111140608

main91111-40608

9111140616

main91111-40616

9321015008

main93210-15008

9321915008

main93219-15008

9451100500

main94511-00500

9451100600

main94511-00600

9461110500

main94611-10500

9461210600

main94612-10600

35 parts on this diagram · 10 diagrams in section
