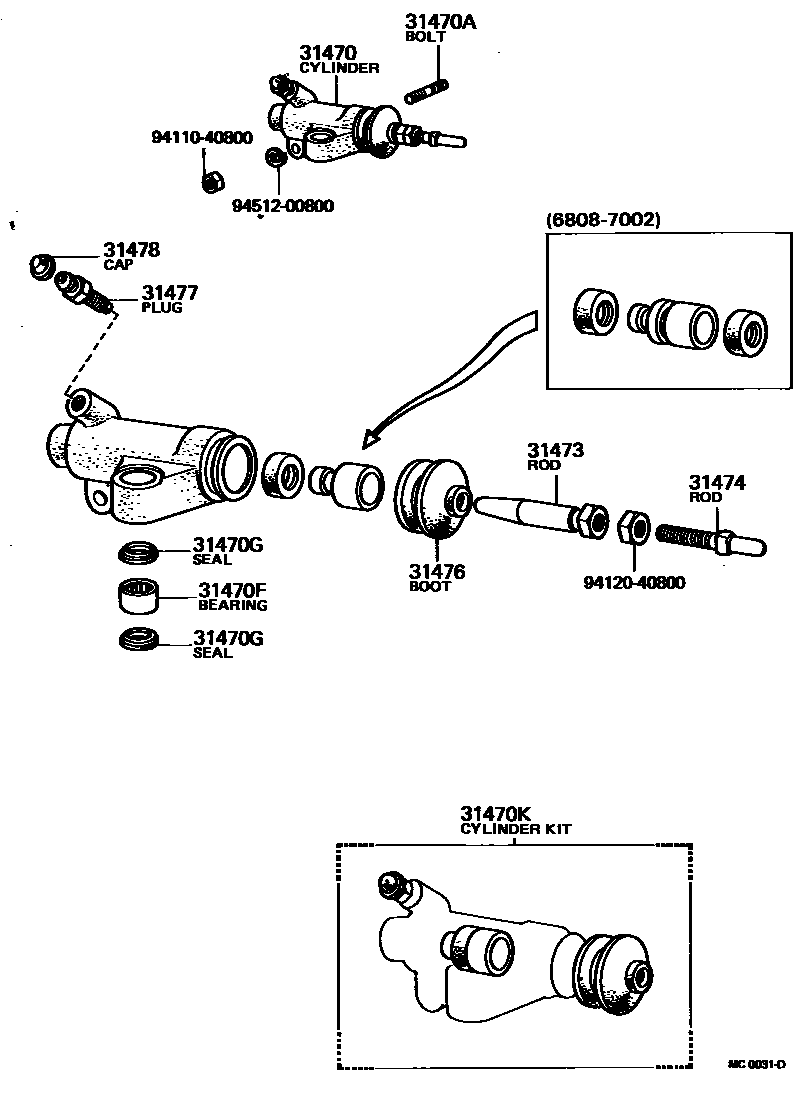

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-40011iVG20..MTM196711-196808

main31470-40012iVG20..MTM196808-197002

main31470-40013iVG2#..MTM197002-197405

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90116-08005iVG2#..MTM196711-197405

31470FBEARING, NEEDLE ROLLER(FOR CLUTCH RELEASE CYLINDER)

main90364-10023iVG2#..MTM196711-197405

31470GSEAL, OIL(FOR CLUTCH RELEASE CYLINDER)

main90313-10009iVG2#..MTM196711-197405

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22011iVG20..MTM196808-197002

main04313-40011iVG20..MTM196711-196808

main04313-40021iVG2#..MTM197002-197405

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iVG2#..MTM196711-197405

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31474-30020iVG2#..MTM196711-197405

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-30020iVG20..MTM196711-197002

main31476-40010iVG2#..MTM197002-197405

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-30020iVG2#..MTM196711-197405

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iVG2#..B197206-197405

main47548-20010iVG20..MTM196711-197206

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

13 parts on this diagram · 1 diagram in section
