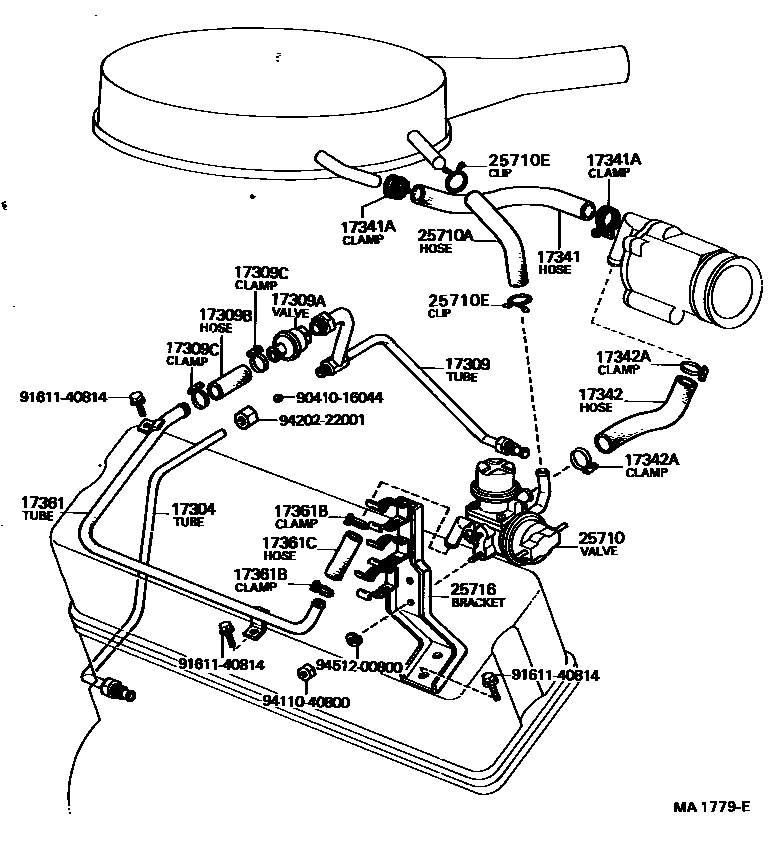

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1

17304TUBE SUB-ASSY, AIR, RH

main17304-52010i4VU..VG21,30197505-197811

17309TUBE SUB-ASSY, AIR, LH

main17309-52010i4VU..VG21,30197505-197811

17309AVALVE, CHECK

main90917-10003i4VU..VG21,30197505-197811

17309BHOSE(FOR CHECK VALVE)

main90445-33007i4VU..VG21,30197505-197811

17309CCLAMP(FOR CHECK VALVE)

main90467-28001×2i4VU..VG30197701-197811

main96111-10330×2i4VU..VG21197505-197701

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main90910-05103i4VU..VG21,30197505-197811

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96111-10360×2i4VU..VG21,30197505-197811

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-52010i4VU..VG21197505-197701

main17342-52011i4VU..VG30197701-197811

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-28001×2i4VU..VG30197701-197811

main96111-10330×2i4VU..VG21197505-197701

17361TUBE, AIR

main17361-52010i4VU..VG21,30197505-197811

17361BCLAMP OR CLIP(FOR AIR TUBE HOSE)

main90467-28001×2i4VU..VG30197701-197811

main96111-10330×2i4VU..VG21197505-197701

17361CHOSE(FOR AIR TUBE)

main90445-33006i4VU..VG21,30197505-197811

25710VALVE ASSY, AIR SWITCHING

main25710-52010i4VU..VG21197505-197701

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90910-05102i4VU..VG21197505-197701

25710ECLIP

main90467-23001×2i4VU..VG21197505-197701

25716BRACKET, AIR SWITCHING VALVE

main25716-52010i4VU..VG21197505-197701

9041016044

main90410-16044

9161140814

main91611-40814

9411040800

main94110-40800

9420222001

main94202-22001

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
