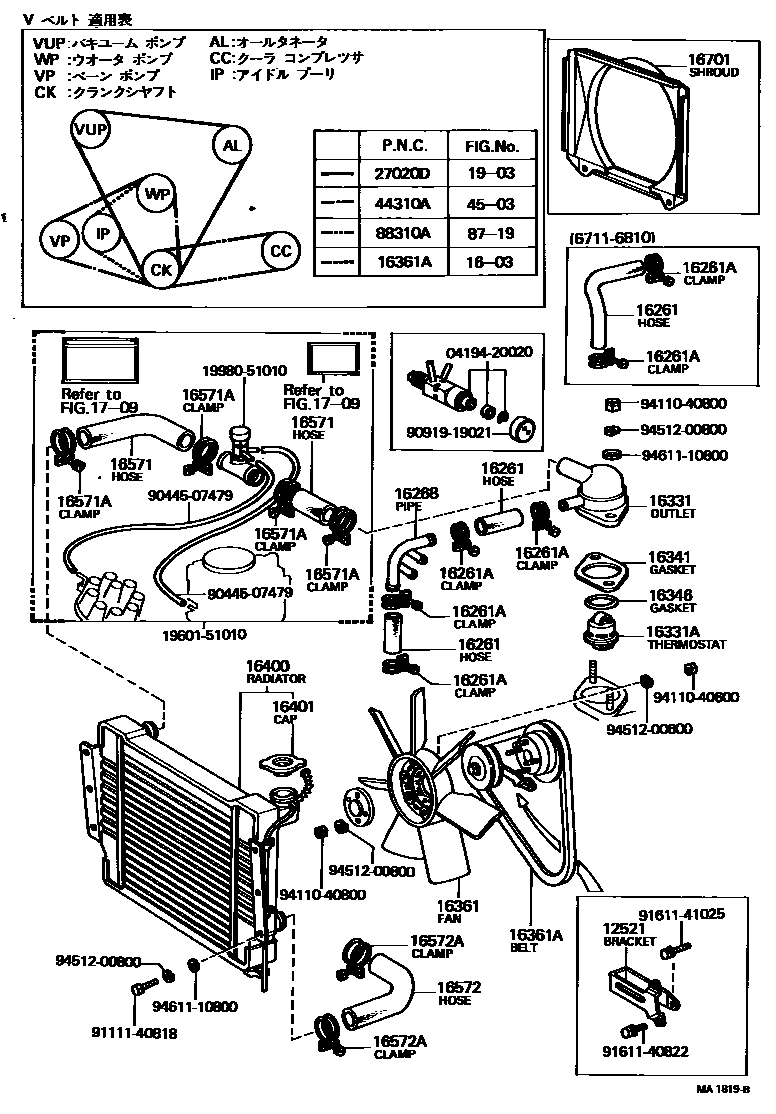

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

12521BRACKET, IDLE PULLEY

main12521-51010i3V..VG20196711-197302

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16261HOSE, WATER BY-PASS

main16261-51010i3V..VG20196711-196810

main90916-01082i3V,4V#..VG2#,30196810-197811

CHAIN COVER

main90916-01084i4VEU..VG35197901-198209

CHAIN COVER

main90916-01162×2i4VEU..VG35197811-197901

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-33020×4i3V..VG20196711-197104

main96112-10330×4i3V,4V#..VG2#,3#197104-198209

16268PIPE, WATER BY-PASS, NO.1

main16268-51010i3V..VG20196810-196906

main16268-51011i3V,4V#..VG2#,30196906-197811

main16268-52010i4VEU..VG35197811-197901

main16268-52011i4VEU..VG35197901-198209

16331OUTLET, WATER

main16331-51010i3V,4V..VG2#196711-197505

main16331-52010i4VU..VG21,30197505-197811

main16331-52020i4VEU..VG35197811-198209

16331ATHERMOSTAT

main90916-03017i3V..VG20196711-196810

*WAX 82-95,FUJI-THOMSON

main90916-03018i3V,4V#..VG2#,30196810-197811

*WAX 82-95,FUJI-THOMSON

main90916-03049i4VEU..VG35197811-198209

*WAX 82-95,FUJI-THOMSON

16341GASKET, WATER OUTLET

main16341-51010i3V,4V#..VG2#,30196711-197811

main16341-52010i4VEU..VG35197811-198111

main16341-52011i4VEU..VG35198111-198209

16346GASKET, THERMOSTAT

main90430-40058i3V,4V#..VG2#,3#196711-198209

16361FAN

main16361-51010i3V..VG20196711-196911

7 BLADES

main16361-51011i3V..VG20196911-197205

7 BLADES

main16361-51012i3V..VG20197205-197302

8 BLADES

main16361-52010i4V#..VG21,3#197303-198209

8 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main99522-11000i3V..VG20196711-197302

16400RADIATOR ASSY

main16400-51011i3V..VG20..ATM196711-197009

main16400-51012i3V..VG20..ATM197009-197302

main16400-51020i3V..VG20..MTM196711-197302

main16400-52010i4V..VG21..ATM197303-197402

main16400-52011i4V..VG21..ATM197402-197505

main16400-52020i4V..VG21..B197303-197402

main16400-52021i4V..VG21..B197402-197405

main16400-52030i4VU..VG21,30197505-197804

main16400-52031i4VU..VG30197804-197811

main16400-52032i4VEU..VG35197811-198209

16401CAP SUB-ASSY, RADIATOR

main16401-36011i4VEU..VG35197811-198209

main16401-50010i3V,4V#..VG2#,30196711-197811

16571HOSE, RADIATOR, INLET

main16572-52010i4V..VG21197303-197505

main16572-52020i4VU..VG21,30197505-197811

main16572-52030i4VEU..VG35197811-198209

main90916-01129i3V..VG20196711-197302

RADIATOR SIDE

main90916-01130i3V..VG20196711-197302

OUTLET SIDE

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016×4i3V..VG20196711-197104

main96111-10500×4i3V,4V#..VG2#,3#197104-198209

16572HOSE, RADIATOR, OUTLET

main16571-51010i3V..VG20196711-197302

main16571-52010i4V#..VG21,3#197303-198209

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016×2i3V..VG20196711-197104

WATER PUMP SIDE

main96111-10500×2i3V,4V#..VG2#,3#197104-198209

16701SHROUD SUB-ASSY, FAN

main16711-52010i4V..VG21197303-197402

main16711-52011i4V#..VG21,30197402-197811

main16711-52012i4VEU..VG35197811-198209

main88454-40030i3V..VG20196711-197109

main88454-40040i3V..VG20197103-197109

W/COOLER

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

1903ALTERNATOR

→ Go to FIG 19-03

27020DBELT, FAN(FOR ALTERNATOR)

main90916-02029i3V,4V..VG2#196711-197505

12V 65A,80A

main90916-02042i4VU..VG21,30197505-197803

12V 80A

main99332-01335i4V#..VG3#197803-198209

12V 80A

44310ABELT, V(FOR VANE PUMP)

main99522-11148iVG21197303-197505

main99522-11155iVG21,3#197505-198209

main99522-11164iVG20196711-197302

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99323-00890iVG35197811-198209

main99523-10875iVG20196711-196906

main99523-10894iVG2#,30196906-197811

0419420020

main04194-20020

1960151010

main19601-51010

1998051010

main19980-51010

9044507479

main90445-07479

9091919021

main90919-19021

9111140818

main91111-40818

9161140822

main91611-40822

9161141025

main91611-41025

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

9461110800

main94611-10800

38 parts on this diagram · 4 diagrams in section
