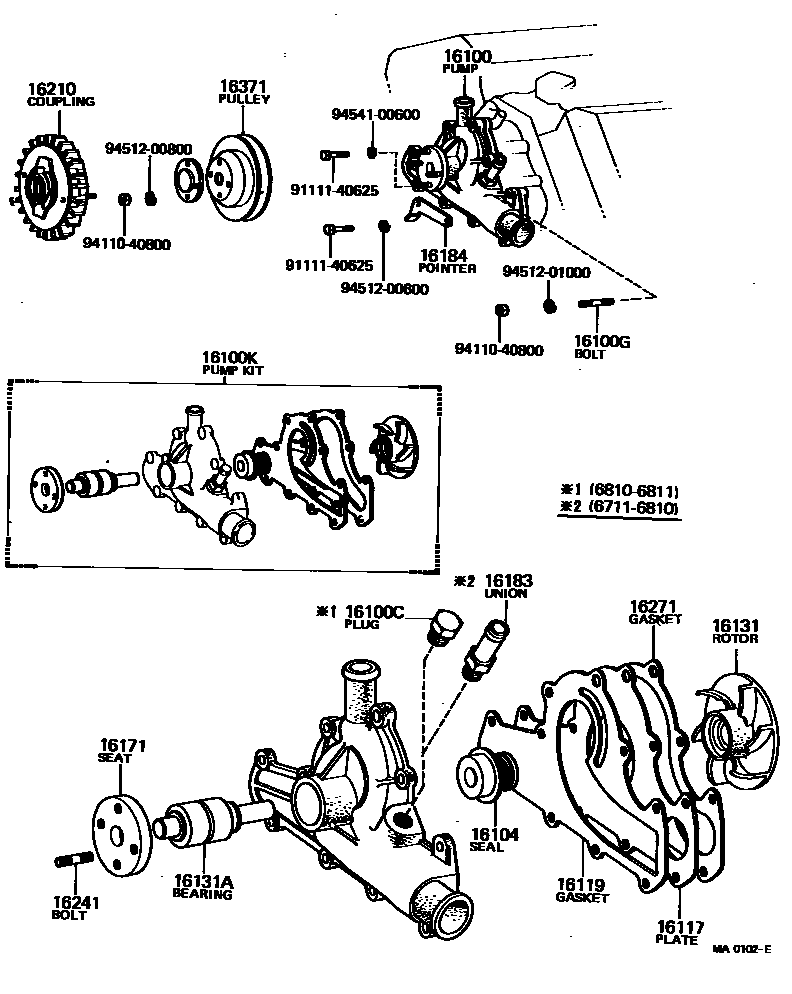

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-51011i3V..VG20196711-196811

main16100-51012i3V..VG20196811-197302

main16100-52010i4V#..VG21,30197303-197711

main16100-52011i4VU..VG30197711-197811

main16100-52013i4VEU..VG35197811-198111

main16100-52014i4VEU..VG35198111-198209

16100CPLUG, W/HEAD TAPER SCREW

main90345-54006i3V..VG20196810-196811

16100GBOLT, STUD(FOR WATER PUMP SET)

main16192-51010i3V,4V#..VG2#,3#196711-198209

L=61,S=18&18

main16193-51010×2i3V,4V#..VG2#,3#196711-198209

L=44,S=16&16

main16194-51010i4V#..VG21,3#197303-198209

L=48,S=16&16

main90116-08063i3V,4V#..VG2#,3#196711-198209

L=51,S=14&14

16100KPUMP KIT, WATER

main04161-51010i3V..VG20196711-197302

main04161-52010i4VU..VG21,30197303-197811

main04161-52011i4VEU..VG35197811-198209

16104SEAL SET, WATER PUMP

main16104-51010i3V,4V..VG2#196711-197304

main16104-52010i4V#..VG21,30197304-197811

main16104-52011i4VEU..VG35197811-198006

main16104-52012i4VEU..VG35198006-198209

16117PLATE, WATER PUMP

main16117-51010i3V,4V#..VG2#,3#196711-198209

16119GASKET, WATER PUMP BODY

main16119-51010i3V,4V#..VG2#,3#196711-198111

main16119-51011i4VEU..VG35198111-198209

16131ROTOR, WATER PUMP

main16131-51010i3V..VG20196711-197302

main16131-52010i4V#..VG21,3#197303-198209

16131ABEARING, WATER PUMP

main16140-52010i4VEU..VG35197908-198209

main90369-30010i4V#..VG3#197711-197908

WPB16111-RRS

main90369-30026i3V,4V#..VG2#,30196711-197711

WPB16112ARS

16171SEAT, WATER PUMP PULLEY

main16171-51010i3V..VG20196711-197302

main16171-52010i4V#..VG21,3#197303-198209

16183UNION, WATER PUMP

main16183-51010i3V..VG20196711-196810

16184POINTER, TIMING

main16184-51010i3V,4V#..VG2#,3#196711-198209

16210COUPLING ASSY, FLUID

main16210-51011i3V..VG20196711-196911

main16210-51012i3V..VG20196911-197205

main16210-51013i3V..VG20197205-197302

main16210-52010i4V#..VG21197303-197507

main16210-52011i4VU..VG21,30197507-197811

main16210-52012i4VEU..VG35197811-198112

main16210-52013i4VEU..VG35198112-198209

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-51010×4i3V,4V#..VG2#,3#196711-198209

L=28.5,S=12&12

16271GASKET, WATER PUMP

main16129-52010i3V,4V#..VG2#,3#196711-198108

main16129-52011i4VEU..VG35198108-198209

16371PULLEY, FAN

main16371-51010i3V..VG20196711-197302

main16371-52010i4V#..VG21,3#197303-198209

9111140625

main91111-40625

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

9454100600

main94541-00600

22 parts on this diagram · 2 diagrams in section
