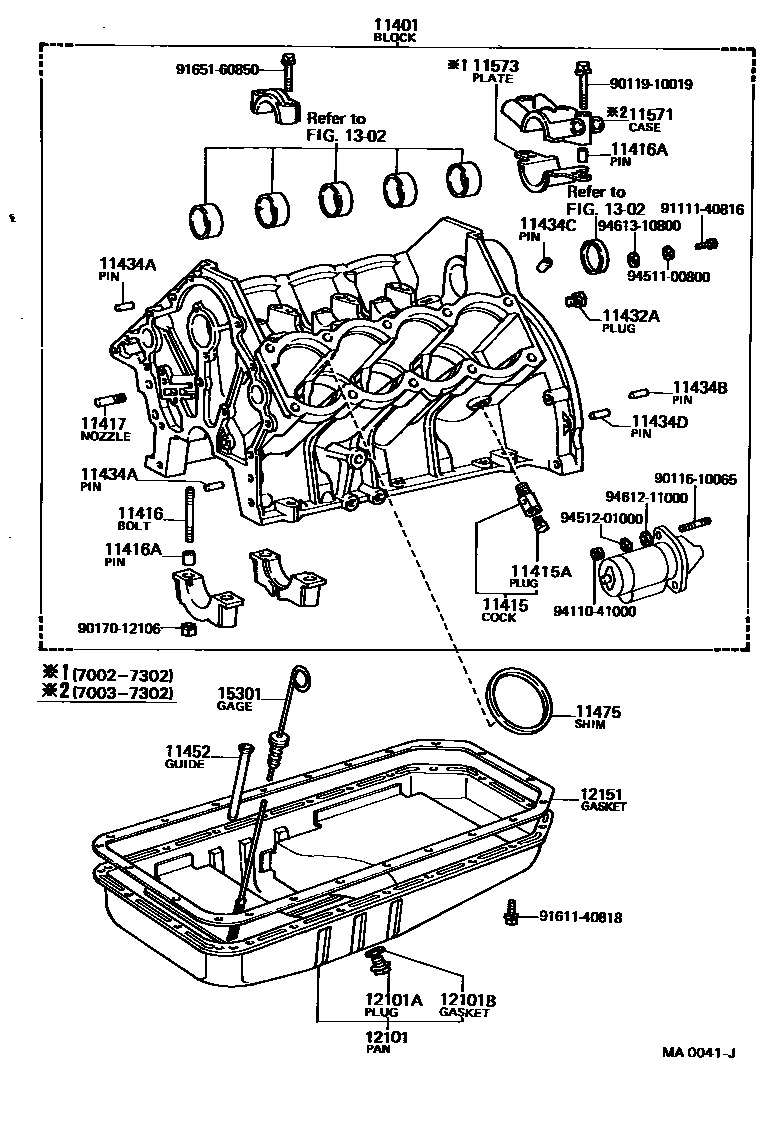

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59015i3V..VG20196711-197302

main11401-59035i4V#..VG21,3#197303-198209

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09028×2i3V..VG20196711-196909

main96431-03833×2i3V,4V#..VG2#,3#196909-198209

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09029×2i3V..VG20196711-196909

main96431-23814×2i3V,4V#..VG2#,3#196909-198209

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90116-12138×10i3V,4V#..VG2#,3#196711-198209

L=110.7,S=33&16

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13008×8i3V,4V#..VG2#,3#196711-198209

L=13,OD=12.5

main90253-16014×10i3V,4V#..VG2#,3#196711-198209

L=10,OD=15.5

11417NOZZLE, OIL

main90915-01010i3V,4V#..VG2#,3#196711-198209

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14032i3V,4V#..VG2#,3#196711-198209

L=9.5,OD=14

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-10113×6i3V..VG20196711-197007

main90250-10192×6i3V,4V#..VG2#,3#197007-198103

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i3V..VG20196711-197007

main90250-10192×2i3V,4V#..VG2#,3#197007-198103

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-16014×4i3V,4V#..VG2#,3#196711-198209

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-10113×2i4VEU..VG35198103-198209

main90250-10192×3i3V,4V#..VG2#,3#196711-198103

11452GUIDE, OIL LEVEL GAGE

main11452-41010i3V,4V#..VG2#,3#196711-198209

11475SHIM, CYLINDER LINER

main11475-51010i3V..VG20196711-197302

main11475-52010i4V#..VG21,3#197303-198209

11571CASE, VALVE LIFTER

main11571-51011×4i3V,4V#..VG2#,3#197003-198209

11573PLATE, OIL REFLECTOR

main11573-51010×4i3V,4V#..VG2#,3#197002-198209

12101PAN SUB-ASSY, OIL

main12101-59015i3V..VG20196711-197302

main12101-59035i4V#..VG21197303-197611

main12101-59036i4VU..VG21,30197611-197811

main12101-59037i4VEU..VG35197811-198209

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i4V#..VG21,3#197611-198209

main90341-25010i3V..VG20196711-196908

main90341-25054i3V,4V#..VG2#196908-197611

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i4V#..VG21,3#197611-198209

main90430-25013i3V,4V#..VG2#196711-197611

12151GASKET, OIL PAN

main12151-51010i3V,4V#..VG2#,3#196711-198209

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-51010i3V..VG20196711-196910

main15301-51011i3V,4V#..VG2#,3#196910-198209

9011610065

main90116-10065

9011910019

main90119-10019

9017012106

main90170-12106

9111140816

main91111-40816

9161140818

main91611-40818

9165160850

main91651-60850

9411041000

main94110-41000

9451100800

main94511-00800

9451201000

main94512-01000

9461211000

main94612-11000

9461310800

main94613-10800

32 parts on this diagram · 2 diagrams in section
