CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

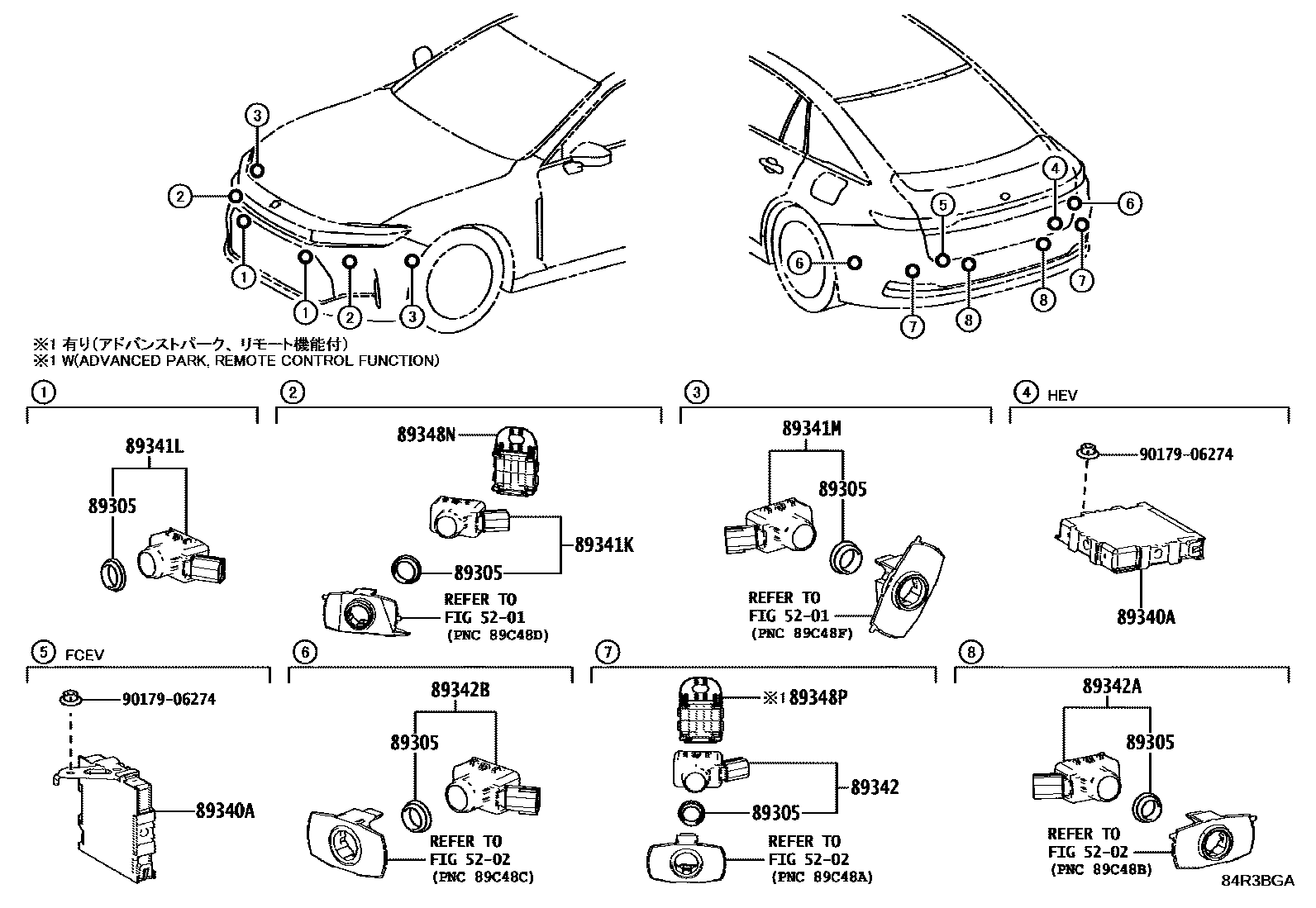

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iAZSH32,KZSM30202311

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-30360supersedes 89340-30370iAZSH32..G202311

main89340-30490supersedes 89340-30460iKZSM30202311-202506

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A7×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090 ,M75

main89341-K0060-B3×2iAZSH32,KZSM30202311

PRECIOUS SILVER,1J6

main89341-K0060-C6×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS BLACK,219; PRECIOUS BLACK,219 ,M77

main89341-K0060-L4×2iAZSH32,KZSM30202311

PRECIOUS BRONZE,4Y6

main89341-K0060-P8×2iAZSH32,KZSM30202311

PRECIOUS METAL,1L5

main89341-K0060-S0×2iAZSH32,KZSM30202311

MASSIVE GRAY,1L6

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0×2iAZSH32,KZSM30202311

DUMMY-MAT BLACK

89341MSENSOR, ULTRASONIC, FRONT SIDE

main89341-K0070-A6×2iAZSH32,KZSM30..Z202311

PRECIOUS WHITE PEARL,090 ,M75

main89341-K0070-B1×2iAZSH32,KZSM30..Z202311

PRECIOUS SILVER,1J6

main89341-K0070-C1×2iAZSH32,KZSM30..Z202311

PRECIOUS BLACK,219 ,M77

main89341-K0070-E8×2iAZSH32,KZSM30..Z202311

PRECIOUS BRONZE,4Y6

main89341-K0070-P0×2iAZSH32,KZSM30..Z202311

PRECIOUS METAL,1L5

main89341-K0070-P2×2iAZSH32,KZSM30..Z202311

MASSIVE GRAY,1L6

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A7×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090 ,M75

main89341-K0060-B3×2iAZSH32,KZSM30202311

PRECIOUS SILVER,1J6

main89341-K0060-C6×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS BLACK,219; PRECIOUS BLACK,219 ,M77

main89341-K0060-L4×2iAZSH32,KZSM30202311

PRECIOUS BRONZE,4Y6

main89341-K0060-P8×2iAZSH32,KZSM30202311

PRECIOUS METAL,1L5

main89341-K0060-S0×2iAZSH32,KZSM30202311

MASSIVE GRAY,1L6

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-K0060-A7×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090 ,M75

main89341-K0060-B3×2iAZSH32,KZSM30202311

PRECIOUS SILVER,1J6

main89341-K0060-C6×2iAZSH32,KZSM30..Z; AZSH32..G202311

PRECIOUS BLACK,219; PRECIOUS BLACK,219 ,M77

main89341-K0060-L4×2iAZSH32,KZSM30202311

PRECIOUS BRONZE,4Y6

main89341-K0060-P8×2iAZSH32,KZSM30202311

PRECIOUS METAL,1L5

main89341-K0060-S0×2iAZSH32,KZSM30202311

MASSIVE GRAY,1L6

89342BSENSOR, ULTRASONIC, REAR SIDE

main89341-K0070-A6×2iAZSH32,KZSM30..Z202311

PRECIOUS WHITE PEARL,090 ,M75

main89341-K0070-B1×2iAZSH32,KZSM30..Z202311

PRECIOUS SILVER,1J6

main89341-K0070-C1×2iAZSH32,KZSM30..Z202311

PRECIOUS BLACK,219 ,M77

main89341-K0070-E8×2iAZSH32,KZSM30..Z202311

PRECIOUS BRONZE,4Y6

main89341-K0070-P0×2iAZSH32,KZSM30..Z202311

PRECIOUS METAL,1L5

main89341-K0070-P2×2iAZSH32,KZSM30..Z202311

MASSIVE GRAY,1L6

89348NCLIP, ULTRASONIC SENSOR, NO.1

main89348-50220×2iAZSH32,KZSM30202311

89348PCLIP, ULTRASONIC SENSOR, NO.2

main89348-50220×2iAZSH32,KZSM30..Z202311

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
