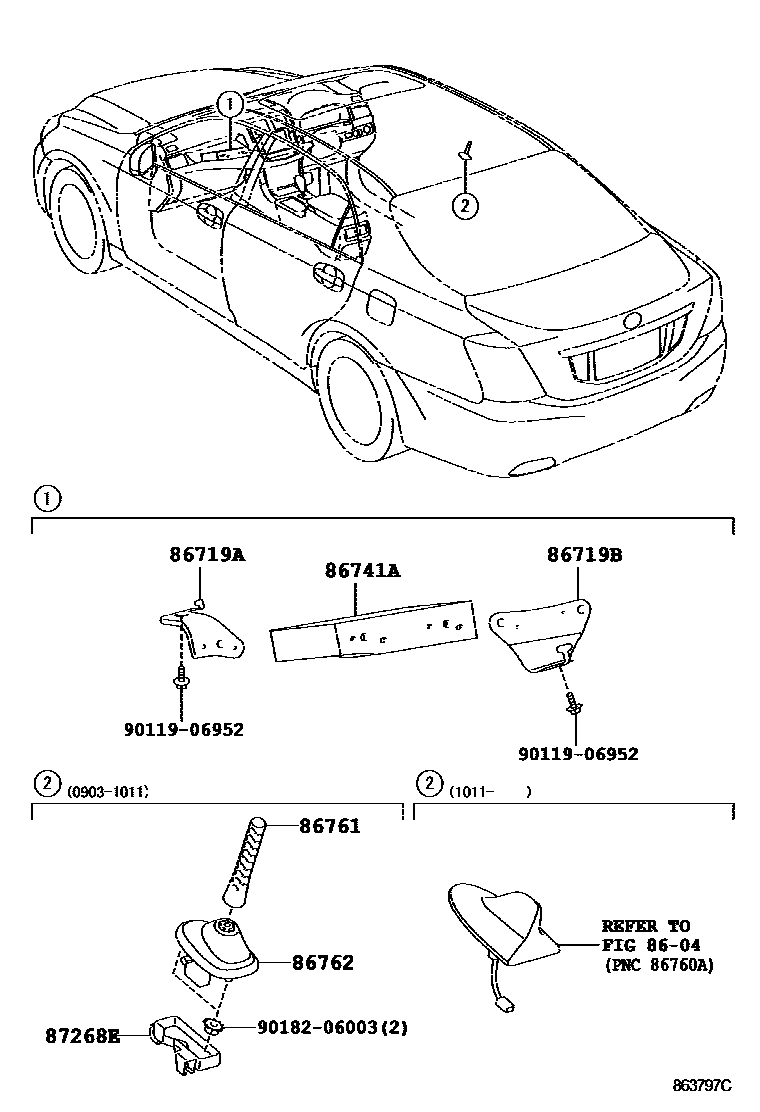

TELEPHONE & MAYDAY

8604ANTENNA

→ Go to FIG 86-04

86719ABRACKET, TELEPHONE NO.1

main86719-30290iURS206,UZS207200903-201011

main86719-30350iURS206,UZS207; URS206..C201011-201307

86719BBRACKET, TELEPHONE NO.2

main86719-30300iURS206,UZS207200903-201011

main86719-30360iURS206,UZS207; URS206..C201011-201307

86741ATRANSCEIVER, TELEMATICS

main86741-30040iURS206,UZS207200903-201201

main86741-30041iURS206,UZS207201202-201204

main86741-30042iURS206,UZS207201205

86761ROD, TELEPHONE ANTENNA

main86761-50041iURS206,UZS207; URS206..C200903-201012

86762BASE, TELEPHONE ANTENNA

main86762-30010iURS206,UZS207; URS206..C200903-201012

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50011iURS206,UZS207; URS206..C200903-201012

9011906952

main90119-06952

9018206003

main90182-06003

9 parts on this diagram · 1 diagram in section
