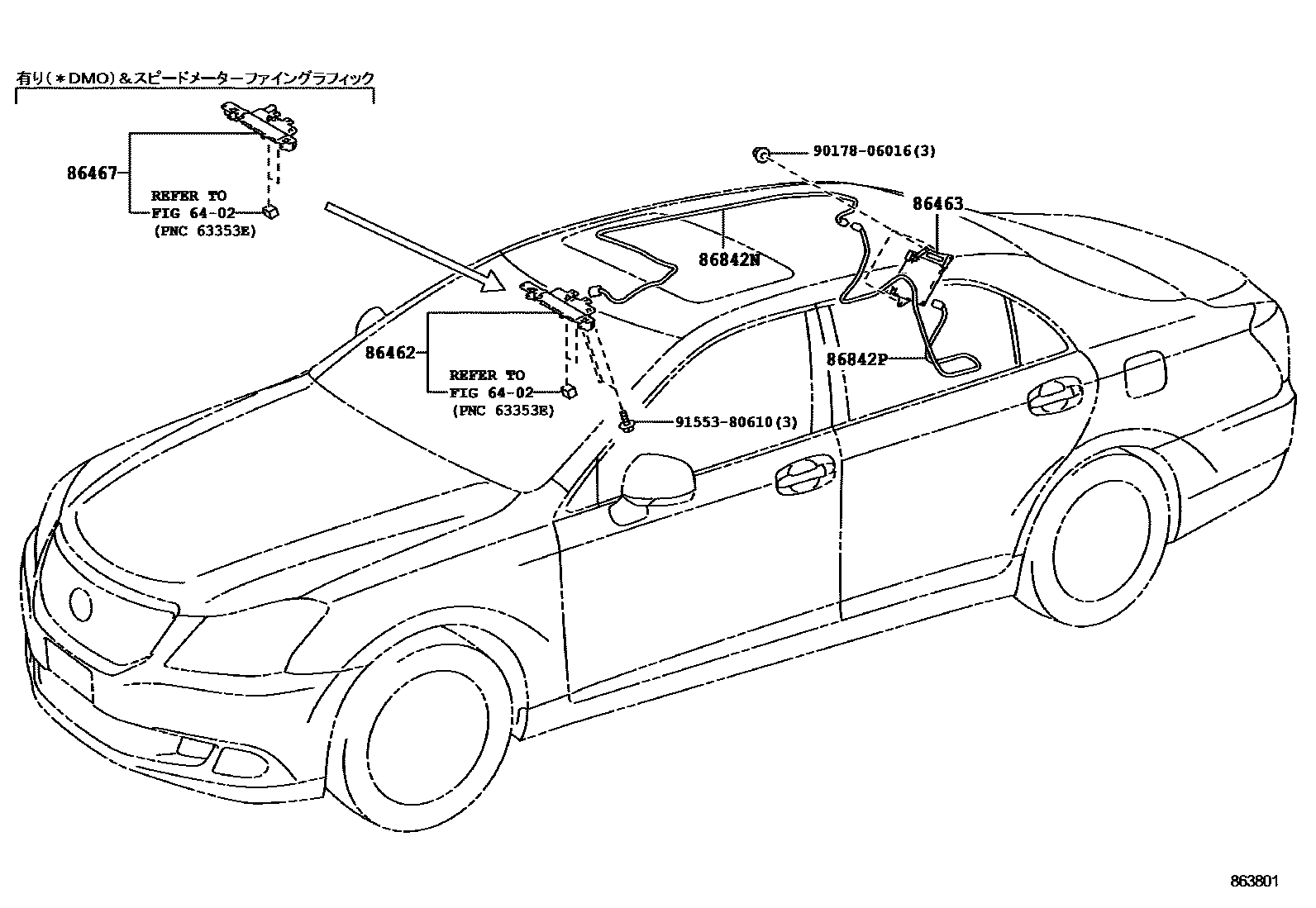

LANE-KEEPING ASSIST

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

86462CAMERA, OBJECT RECOGNITION

main86462-30010iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903

86463COMPUTER, OBJECT RECOGNITION

main86460-30060iURS206..C,G; URS206..G201011

main86460-30070iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G201011

main86463-30010iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201010

86467CAMERA, OBJECT RECOGNITION W/NIGHT VIEW

main86467-30010iURS206..C,G; URS206..G200903

86842NWIRE, NAVIGATION, NO.1

main86842-30280iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

86842PWIRE, NAVIGATION, NO.2

main86842-30270iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

9017806016

main90178-06016

9155380610

main91553-80610

8 parts on this diagram · 1 diagram in section
