WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8604ANTENNA

→ Go to FIG 86-04

86101GCORD SUB-ASSY, ANTENNA

main86101-30D60iURS206,UZS207200903-201307

89741RECEIVER, DOOR CONTROL

main89740-30070iURS206,UZS207200903

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30180iURS206,UZS207200903

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30190iURS206,UZS207200903

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main82157-30020iURS206,UZS207200903

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main82158-30020iURS206,UZS207200903

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURS206,UZS207200903

89990ACOMPUTER ASSY, SMART KEY

main89990-30150iURS206,UZS207200903

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30050iURS206,UZS207200903

main89992-30060iURS206,UZS207200903

main89992-30070iURS206,UZS207200903

89997ANTENNA, ELECTRICAL KEY

main89997-30070iURS206,UZS207200903

9017906274

main90179-06274

91631J0612

main91631-J0612

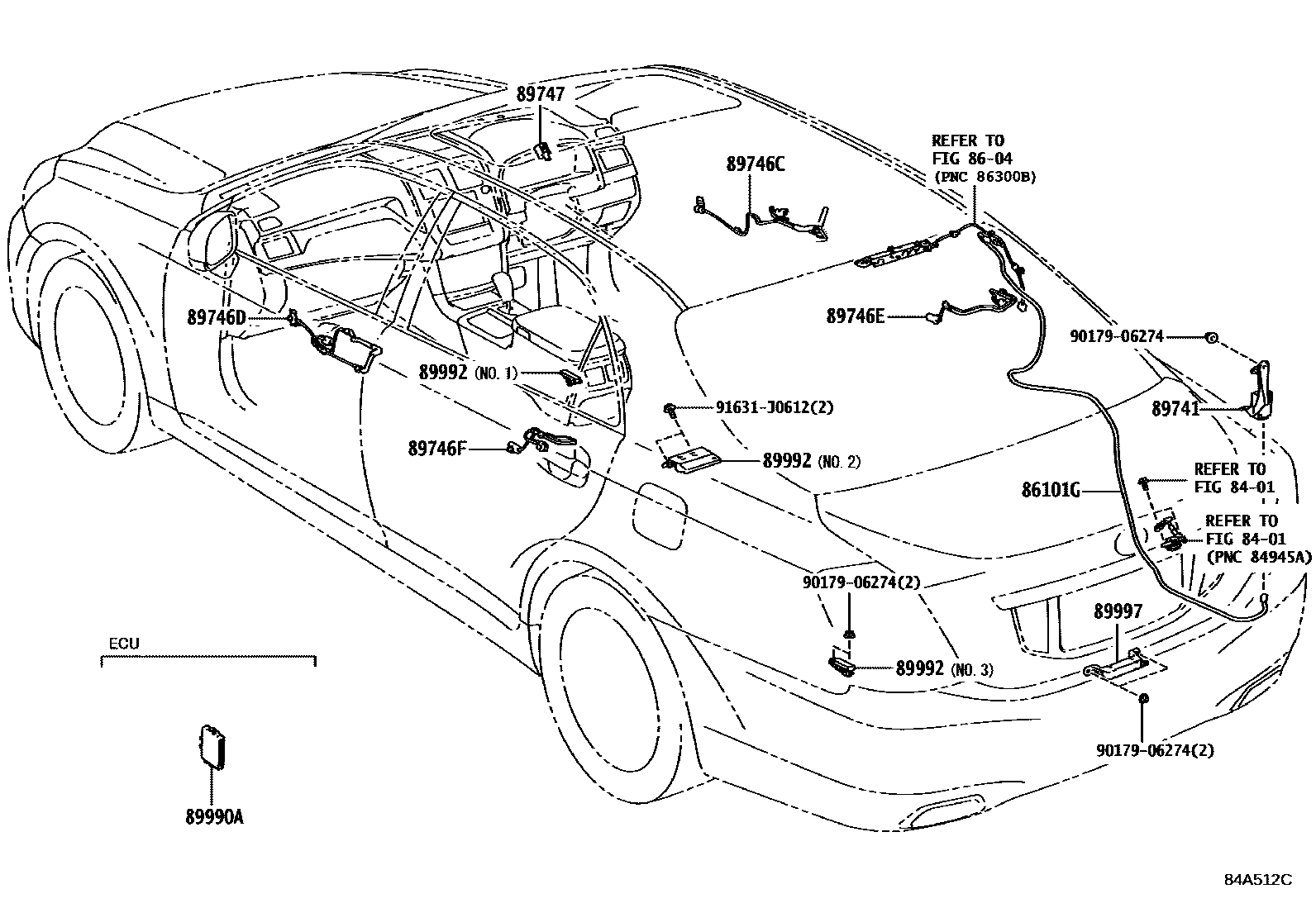

14 parts on this diagram · 1 diagram in section
