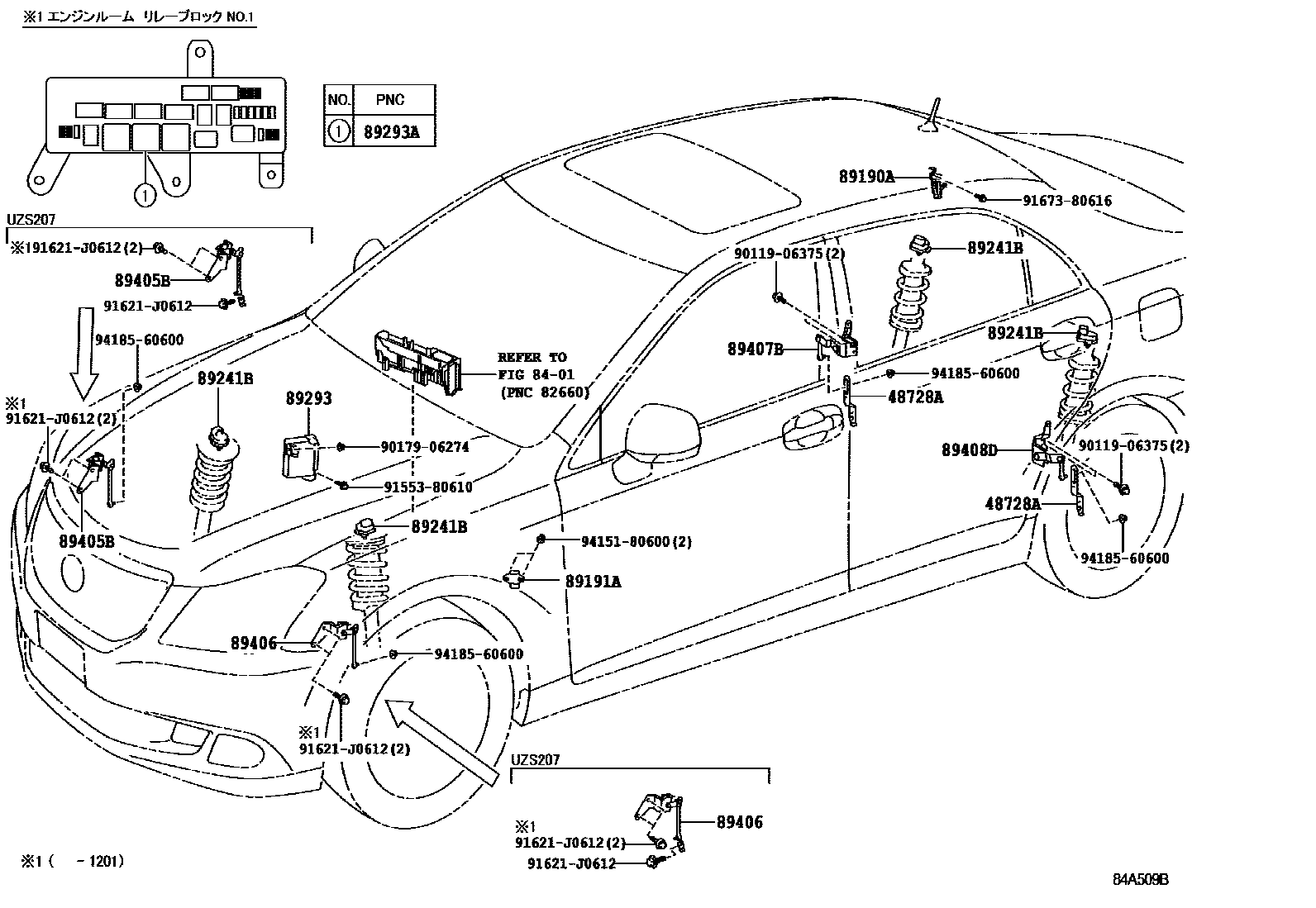

ELECTRONIC MODULATED SUSPENSION

48728ABRACKET, LOAD SENSING VALVE SENSOR

main48728-30040×2iURS206,UZS207200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-30050iURS206,UZS207200903

89191ASENSOR, ACCELERATION

main89191-22020iURS206,UZS207200909

main89191-50020iURS206,UZS207200903-200908

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iURS206,UZS207200903-201102

main89241-30041×4iURS206,UZS207201103

89293COMPUTER, SUSPENSION CONTROL

main89293-30230iURS206,UZS207200903

89293ARELAY, SUSPENSION CONTROL

main90987-02025iURS206,UZS207200903

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-30110iURS206200903

main89405-30130iUZS207200903-201208

main89405-30131iUZS207201209

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-30140iURS206200903

main89406-30160iUZS207200903-201208

main89406-30161iUZS207201209

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-30070iURS206,UZS207200903

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-30130iURS206,UZS207200903

9011906375

main90119-06375

9017906274

main90179-06274

9155380610

main91553-80610

91621J0612

main91621-J0612

9167380616

main91673-80616

9415180600

main94151-80600

9418560600

main94185-60600

18 parts on this diagram · 1 diagram in section
