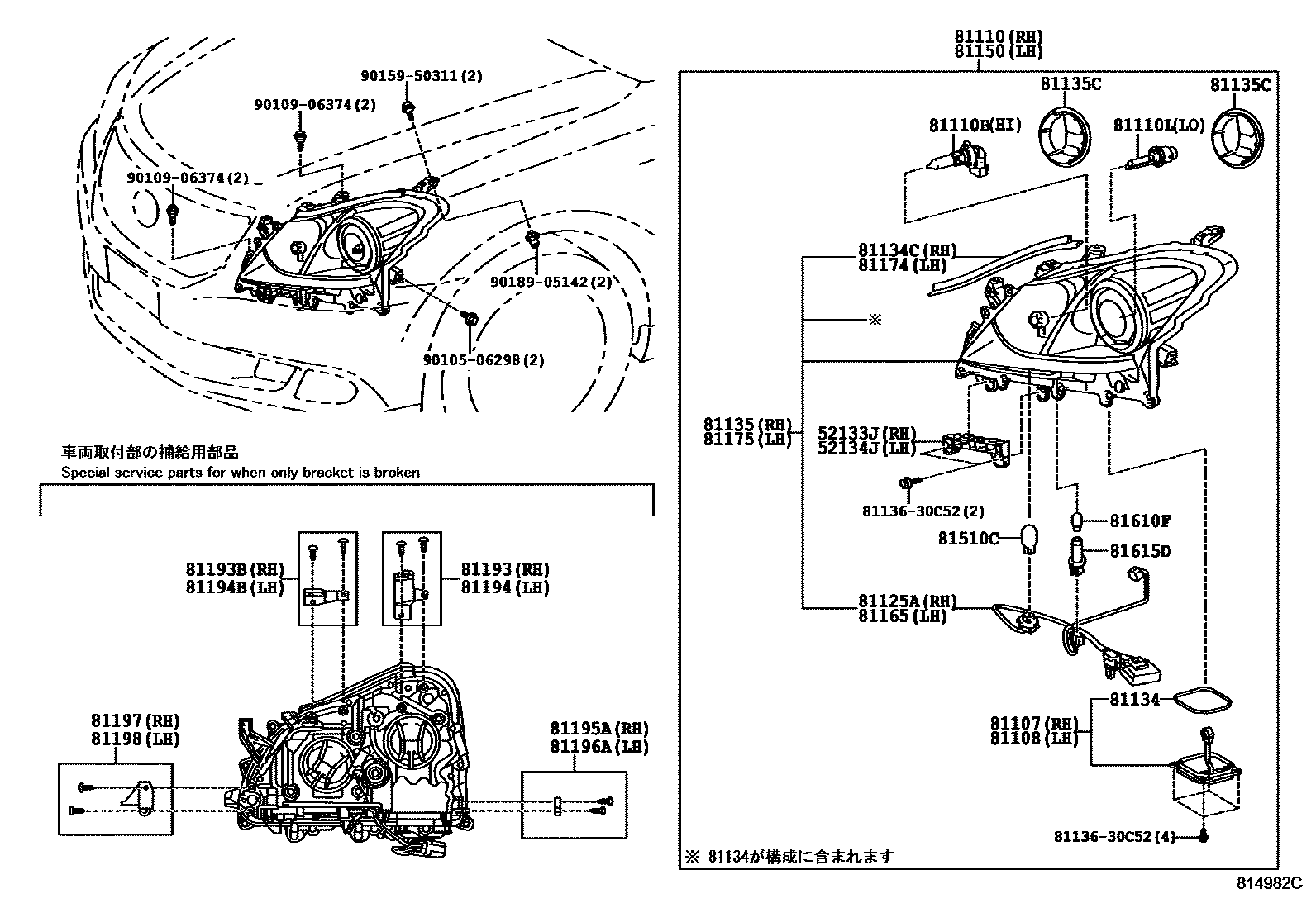

HEADLAMP

0001 1 0002 1��(������������)

52133JREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-30140iURS206,UZS207200903

52134JREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-30120iURS206,UZS207200903

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-22A10iURS206,UZS207200903-201008

main81107-33761iURS206,UZS207201008

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-22A10iURS206,UZS207200903-201008

main81107-33761iURS206,UZS207201008

81110HEADLAMP ASSY, RH

main81110-30A90iURS206,UZS207200903

main81110-30E10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iURS206,UZS207200903

main90981-13081×2iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81110LBULB, DISCHARGE HEADLAMP

main90981-20026×2iURS206,UZS207200903-200906

main90981-20027×2iURS206,UZS207200906

81125ACORD, HEADLAMP, RH

main81125-30A90iURS206,UZS207200903

main81125-30E10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81134GASKET, HEADLAMP

main90075-68007iURS206,UZS207200903

81134CGASKET, HEADLAMP BODY, RH

main81134-30A90iURS206,UZS207200903

81135UNIT ASSY, HEADLAMP, RH

main81145-30A90iURS206,UZS207200903

main81145-30E10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81135CCOVER, HEADLAMP BACK, NO.1

main81135-30A60×4iURS206,UZS207200903

81150HEADLAMP ASSY, LH

main81150-30B00iURS206,UZS207200903

main81150-30B10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81165CORD, HEADLAMP, LH

main81165-30B00iURS206,UZS207200903

main81165-30B10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81174GASKET, HEADLAMP BODY, LH

main81174-30B00iURS206,UZS207200903

81175UNIT ASSY, HEADLAMP, LH

main81185-30B00iURS206,UZS207200903

main81185-30B10iURS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30070iURS206,UZS207200903

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-30080iURS206,UZS207200903

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30060iURS206,UZS207200903

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-30070iURS206,UZS207200903

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-30040iURS206,UZS207200903

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-30040iURS206,UZS207200903

81197BRACKET, HEADLAMP, LOWER RH

main81197-30040iURS206,UZS207200903

81198BRACKET, HEADLAMP, LWR LH

main81198-30040iURS206,UZS207200903

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iURS206,UZS207200903

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iURS206,UZS207200903

81615DSOCKET, CLEARANCE LAMP

main81138-22680×2iURS206,UZS207200903

8113630C52PROTECTOR, HEADLAMP, NO.1 RH

main81136-30C52

9010506298

main90105-06298

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

32 parts on this diagram · 2 diagrams in section
