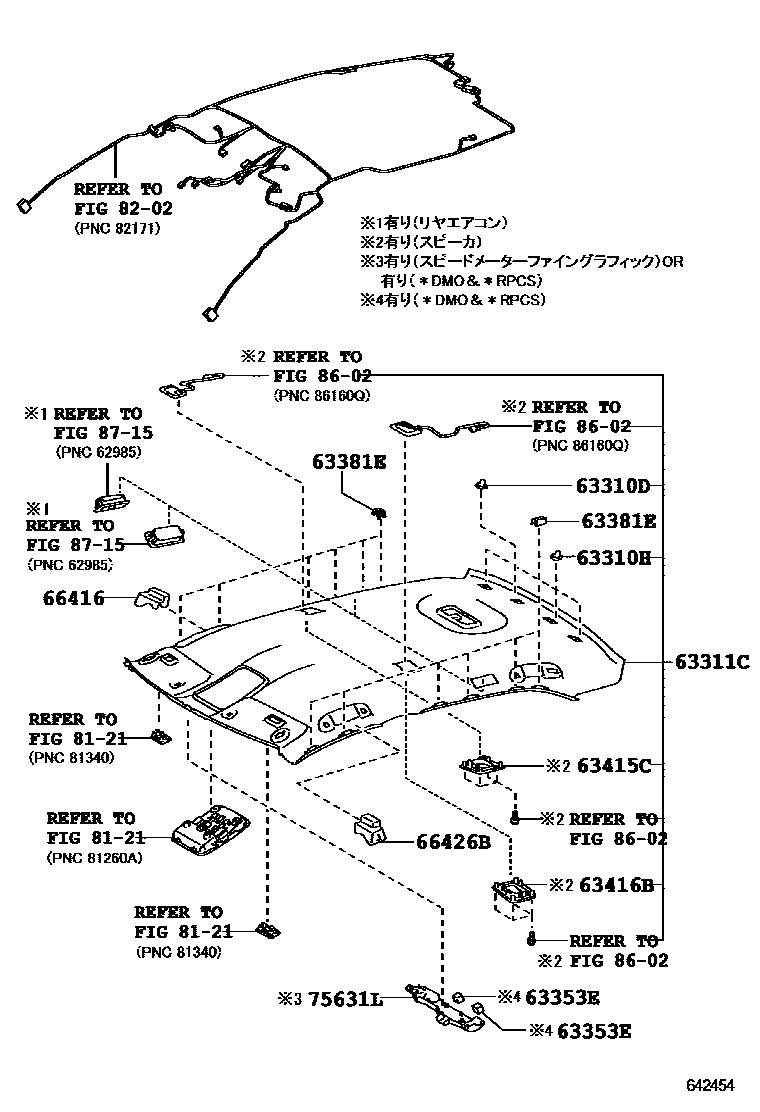

ROOF HEADLINING & SILENCER PAD

0001 1��� ���������� 0002 1����� ����� 0003 1��(��� ���)

63310DCLIP, ROOF HEADLINING

main90467-10181iURS206,UZS207200903

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126×3iURS206,UZS207200903

63311CHEADLINING, ROOF

main63311-30360-A0iURS206..C200903-201004

main63311-30360-B0iURS206..C200903-201004

main63311-30B00-A0supersedes 63311-30B20-A0iURS206..G200903-201307

main63311-30B00-B0iURS206..C200903-201004

main63311-30B20-A0supersedes 63311-30B10-A0iURS206..A200903-201011

main63311-30B20-B0iURS206,UZS207..C,IFOUR200903-201004

main63311-30B30-A0supersedes 63311-30B20-A0iURS206..G200903-201307

main63311-30B30-B0supersedes 63311-30B20-B0iURS206..G200903-201307

main63311-30B70-A0supersedes 63311-30B10-A0iURS206..A200903-201307

main63311-30B70-B0supersedes 63311-30B20-B0iURS206,UZS207..C,IFOUR200903-201004

main63311-30B80-A0supersedes 63311-30B20-A0iURS206..G200903-201307

main63311-30B80-B0supersedes 63311-30B20-B0iURS206,UZS207..C,IFOUR201004-201307

main63311-30C10-A0supersedes 63311-30B20-A0iURS206..G200903-201011

main63311-30C10-B0supersedes 63311-30B20-B0iURS206..G200903-201011

main63311-30C20-A0supersedes 63311-30B20-A0iURS206..G200903-201307

main63311-30C20-B0supersedes 63311-30B20-B0iURS206..G200903-201307

main63311-30C30-A0supersedes 63311-30B20-A0iURS206..G200903-201011

main63311-30C30-B0supersedes 63311-30B20-B0iURS206..G200903-201011

63353EPAD, ROOF HEADLINING, CENTER

main63353-30070×2iURS206..G200903-201307

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30200×12iURS206,UZS207200903

63415CGRILLE, ROOF SPEAKER, RH

main63415-30010-A0supersedes 63415-30110-A0iURS206..G200903-201307

main63415-30010-B0supersedes 63415-30110-B0iURS206..G200903-201307

main63415-30110-A0iURS206,UZS207..C,IFOUR; URS206..C200903-201004

main63415-30110-B0iURS206,UZS207..C,IFOUR; URS206..C200903-201004

63416BGRILLE, ROOF SPEAKER, LH

main63416-30010-A0iURS206..A200903-201011

main63416-30010-B0iURS206..A200903-201011

main63416-30110-A0iURS206,UZS207..C,IFOUR; URS206..C200903-201004

main63416-30110-B0iURS206,UZS207..C,IFOUR; URS206..C200903-201004

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-30020iURS206,UZS207200903

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-30020iURS206,UZS207200903

75631LGARNISH, ROOF TOP, FRONT

main75631-30140-A0iURS206..G200903-201011

main75631-30140-B0iURS206..G200903-201307

main75631-30150-A0iURS206..G200903-201307

main75631-30150-B0iURS206..G200903-201011

main75631-30160-A0iURS206..C; URS206..G200903-201307

main75631-30160-B0iURS206..C200903-201004

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8602SPEAKER

→ Go to FIG 86-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

14 parts on this diagram · 3 diagrams in section
