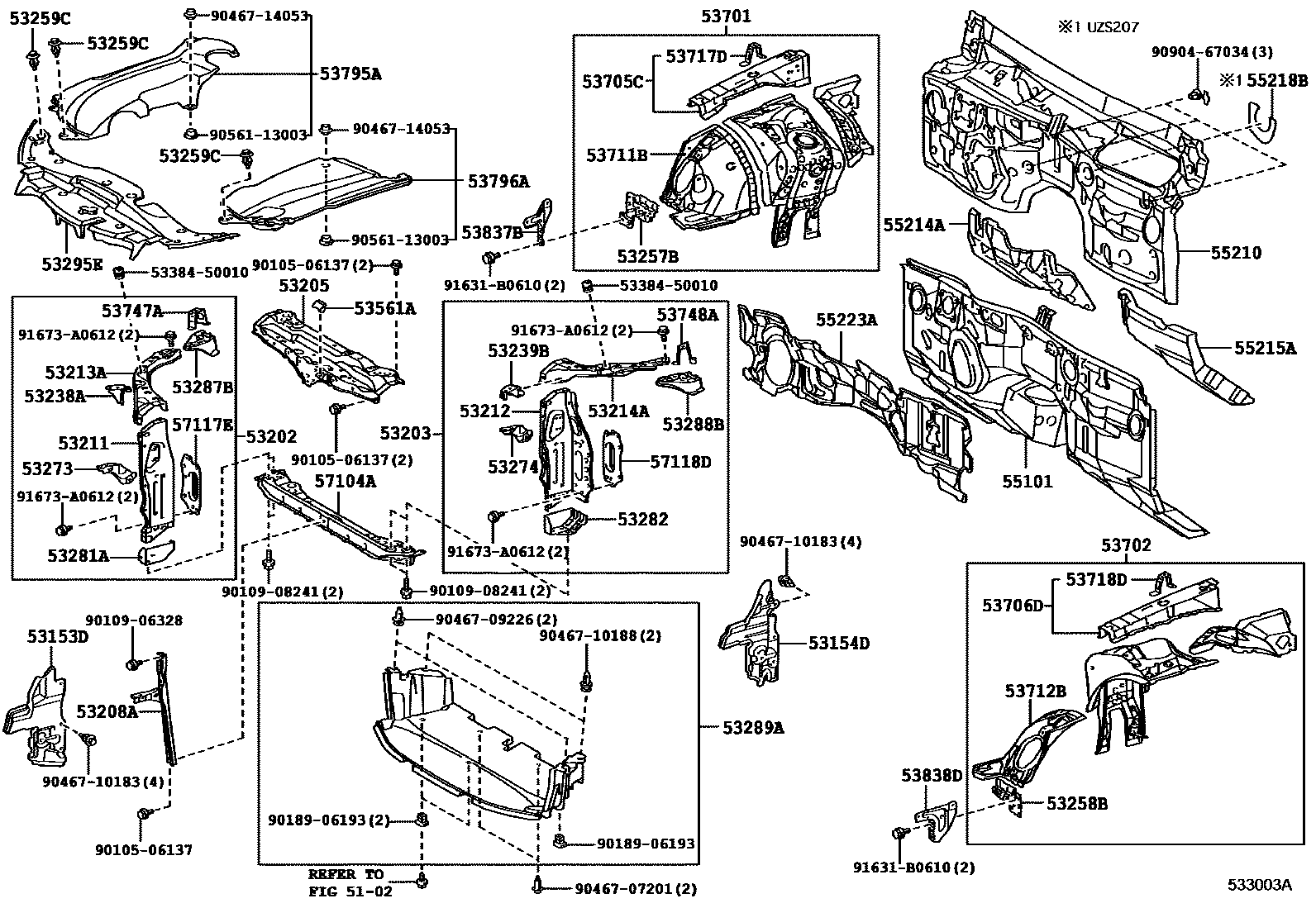

FRONT FENDER APRON & DASH PANEL

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30150iURS206,UZS207200903

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30140iURS206,UZS207200903

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30070iURS206,UZS207200903

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30080iURS206,UZS207200903

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-30070iURS206,UZS207200903

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-30060iURS206,UZS207200903

53211SUPPORT, RADIATOR, RH

main53211-30310iURS206,UZS207200903

53212SUPPORT, RADIATOR, LH

main53212-30250iURS206,UZS207200903

53213ASUPPORT, RADIATOR, UPPER RH

main53213-30120iURS206,UZS207200903

53214ASUPPORT, RADIATOR, UPPER LH

main53214-30090iURS206,UZS207200903

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-30040iURS206,UZS207200903

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53239-30040iURS206,UZS207200903

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-30100iURS206,UZS207200903

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-30070iURS206,UZS207200903

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×15iURS206,UZS207200903-201207

main90467-07217×15iURS206,UZS207201208

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-30080iURS206,UZS207200903

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-30060iURS206,UZS207200903

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-30050iURS206,UZS207200903

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-30030iURS206,UZS207200903

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30070iURS206,UZS207200903

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30060iURS206,UZS207200903

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30060iURS206,UZS207200903

53295ESEAL, COOL AIR INTAKE DUCT

main53295-30130iURS206200903

main53295-30140iUZS207200903

53561AGUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010iURS206,UZS207200903

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30A40iURS206200903-201205

main53701-30A41iURS206201205

main53701-30A50iUZS207200903-201205

main53701-30A51iUZS207201205

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30830iURS206200903

main53702-30840iUZS207200903

53705CBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main53705-30080iURS206,UZS207200903

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-30080iURS206,UZS207200903

53711BAPRON, FRONT FENDER, FRONT RH

main53711-3A030iURS206,UZS207200903-201205

main53711-3A031iURS206,UZS207201205

53712BAPRON, FRONT FENDER, FRONT LH

main53712-30640iURS206,UZS207200903

53717DGUSSET, FENDER APRON, RH

main53717-30110iURS206,UZS207200903

53718DGUSSET, FENDER APRON, LH

main53717-30110iURS206,UZS207200903

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-30070iURS206,UZS207200903

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-30050iURS206,UZS207200903

53795ACOVER, ENGINE ROOM, SIDE

main53795-30050iURS206,UZS207200903

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-30020iURS206,UZS207200903

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-30030iURS206,UZS207200903

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-30070iURS206,UZS207200903

55101PANEL SUB-ASSY, DASH

main55101-30A01iURS206200903

main55101-30A21iUZS207200903

55210INSULATOR ASSY, DASH PANEL

main55210-30430iURS206,UZS207200903-200907

main55210-30431iURS206,UZS207200908

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-30100iURS206,UZS207200903

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-30200iURS206200903

main55215-30210iUZS207200903

55218BSEAL, DASH PANEL INSULATOR

main55218-30020iUZS207200903

55223AINSULATOR, DASH PANEL, OUTER

main55223-30240iURS206,UZS207200903

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-30080iURS206,UZS207200903

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050iURS206,UZS207200903

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050iURS206,UZS207200903

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010

9010506137

main90105-06137

9010906328

main90109-06328

9010908241

main90109-08241

9018906193

main90189-06193

9046707201

main90467-07201

9046709226

main90467-09226

9046710183

main90467-10183

9046710188

main90467-10188

9046714053

main90467-14053

9056113003

main90561-13003

9090467034

main90904-67034

91631B0610

main91631-B0610

91673A0612

main91673-A0612

62 parts on this diagram · 1 diagram in section
