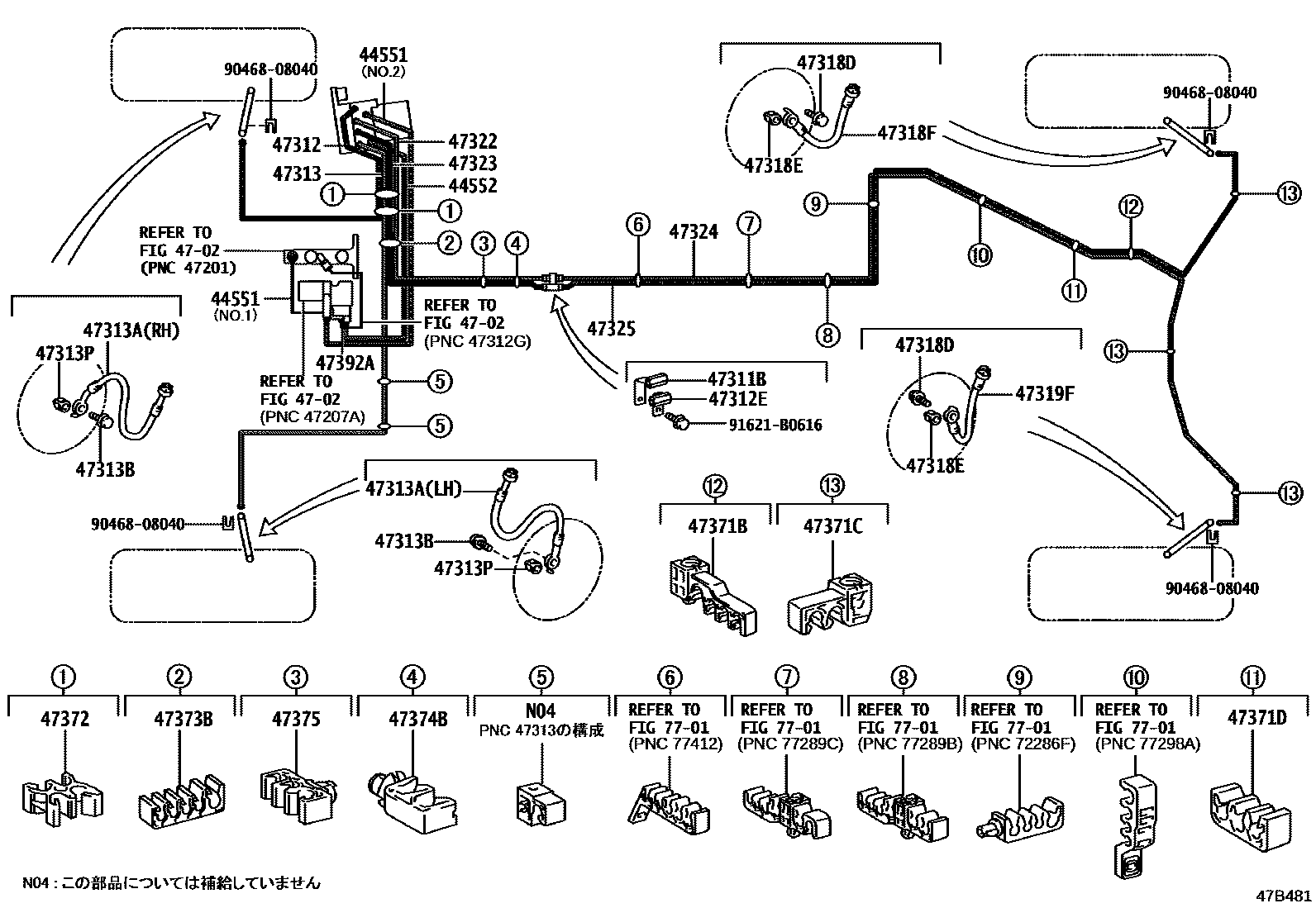

BRAKE TUBE & CLAMP
44552TUBE, BRAKE ACTUATOR, NO.2
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47392AWAY, BRAKE TUBE, NO.2
7701FUEL TANK & TUBE
9046808040
main90468-08040
91621B0616
main91621-B0616
30 parts on this diagram · 4 diagrams in section
