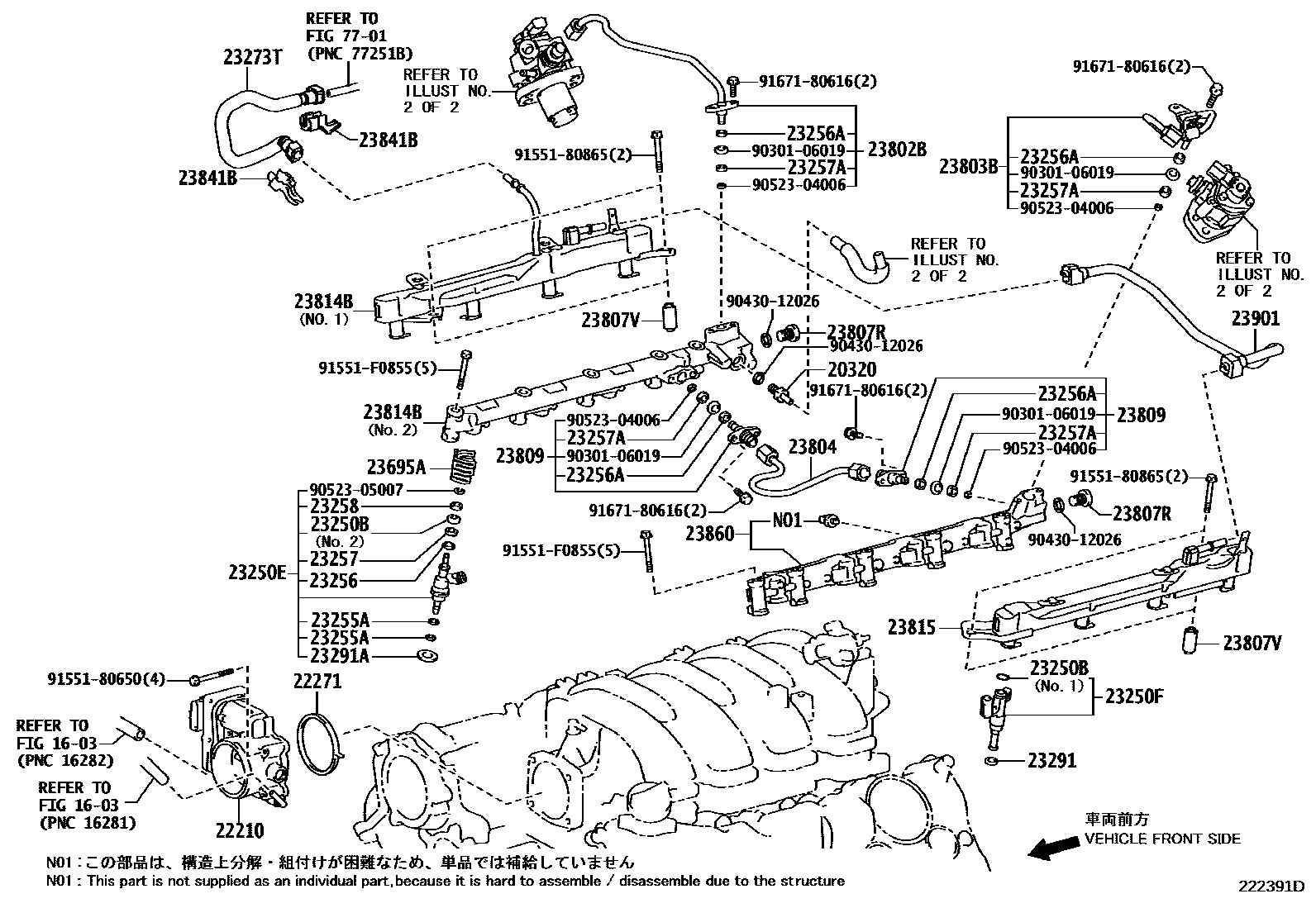

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

20320VALVE ASSY, FUEL RELIEF

main20320-31010i1URFSE..URS206200903

22210BODY ASSY, THROTTLE

main22030-38010i1URFSE..URS206200903

main22030-50180i3UZFE..UZS207200903

22271GASKET, THROTTLE BODY

main22271-50042i3UZFE..UZS207200903

main22271-50050i1URFSE..URS206200903

23250INJECTOR ASSY, FUEL

main23209-50030×4i3UZFE..UZS207200903-201307

main23209-50050×4i3UZFE..UZS207200903-201307

23250BRING, O(FOR FUEL INJECTOR)

main90301-06018×8i1URFSE..URS206200903

main90301-07024×8i3UZFE..UZS207200903

main90301-07037×8i1URFSE..URS206; 3UZFE..UZS207200903

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-39155-A0×8i1URFSE..URS206200903-201307

MARK YELLOW

main23209-39155-B0×8i1URFSE..URS206200903-201307

MARK BLACK

main23209-39155-C0×8i1URFSE..URS206200903-201307

MARK BROWN

main23209-39155-D0×8i1URFSE..URS206200903-201307

MARK GREEN

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-38060×8i1URFSE..URS206200903-201307

23255ASEAL, FUEL INJECTOR

main23255-31010×16i1URFSE..URS206200903

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×8i1URFSE..URS206200903

23256ARING, FUEL PIPE, NO.1

main23256-38010×4i1URFSE..URS206200903

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×8i1URFSE..URS206200903

23257ARING, FUEL PIPE, NO.2

main23257-38010×4i1URFSE..URS206200903

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×8i1URFSE..URS206200903

23273THOSE, FUEL, NO.3

main23274-38040i1URFSE..URS206200903

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i3UZFE..UZS207200903

main23291-23010×8i1URFSE..URS206200903

23291AINSULATOR, INJECTOR VIBRATION

main23291-31011×8i1URFSE..URS206200903

23695ACLAMP, NOZZLE HOLDER

main23695-31010×8i1URFSE..URS206200903

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-38011i1URFSE..URS206200903

main23802-50080i3UZFE..UZS207200903

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-38010i1URFSE..URS206200903

23804PIPE SUB-ASSY, FUEL, NO.4

main23804-38010i1URFSE..URS206200903

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-50031i3UZFE..UZS207200903

23807RPLUG, FUEL DELIVARY PIPE

main90341-12030×2i1URFSE..URS206200903

main90341-14032×2i3UZFE..UZS207200903

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020×4i1URFSE..URS206200903

main90561-08029×4i3UZFE..UZS207200903

23809SUPPORT SUB-ASSY, FUEL PIPE

main23809-38010×2i1URFSE..URS206200903

23814BPIPE, FUEL DELIVERY

main23814-38040i1URFSE..URS206200903-201204

main23814-38041i1URFSE..URS206201204

main23814-38051i1URFSE..URS206200903

23815PIPE, FUEL DELIVERY, NO.2

main23815-38020i1URFSE..URS206200903-201204

main23815-38021i1URFSE..URS206201204

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1URFSE..URS206; 3UZFE..UZS207200903

23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH

main23860-38010i1URFSE..URS206200903

23901TUBE SUB-ASSY, FUEL

main23901-38020i1URFSE..URS206200903

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9030106019

main90301-06019

9043012026

main90430-12026

9052304006

main90523-04006

9052305007

main90523-05007

9155180650

main91551-80650

9155180865

main91551-80865

91551F0855

main91551-F0855

9167180616

main91671-80616

39 parts on this diagram · 3 diagrams in section
