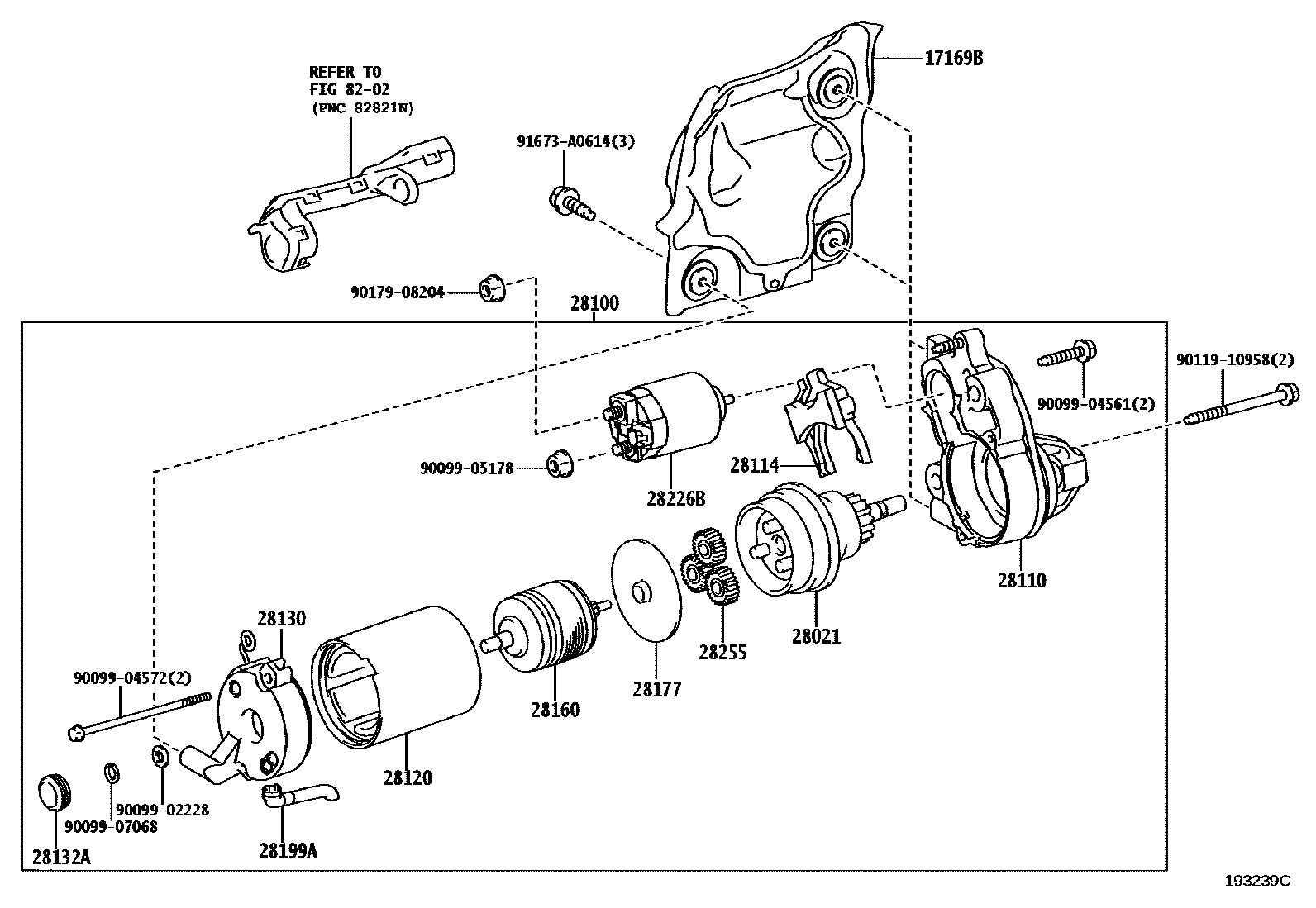

STARTER
17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28114PIN, STARTER DRIVE LEVER SET
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
28226BSTARTER KIT, REPAIR SERVICE
28255GEAR, PLANET
8202WIRING & CLAMP
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
9009907068
main90099-07068
9011910958
main90119-10958
9017908204
main90179-08204
91673A0614
main91673-A0614
23 parts on this diagram · 4 diagrams in section
