Toyota 105110 — FRONT BUMPER & BUMPER STAY

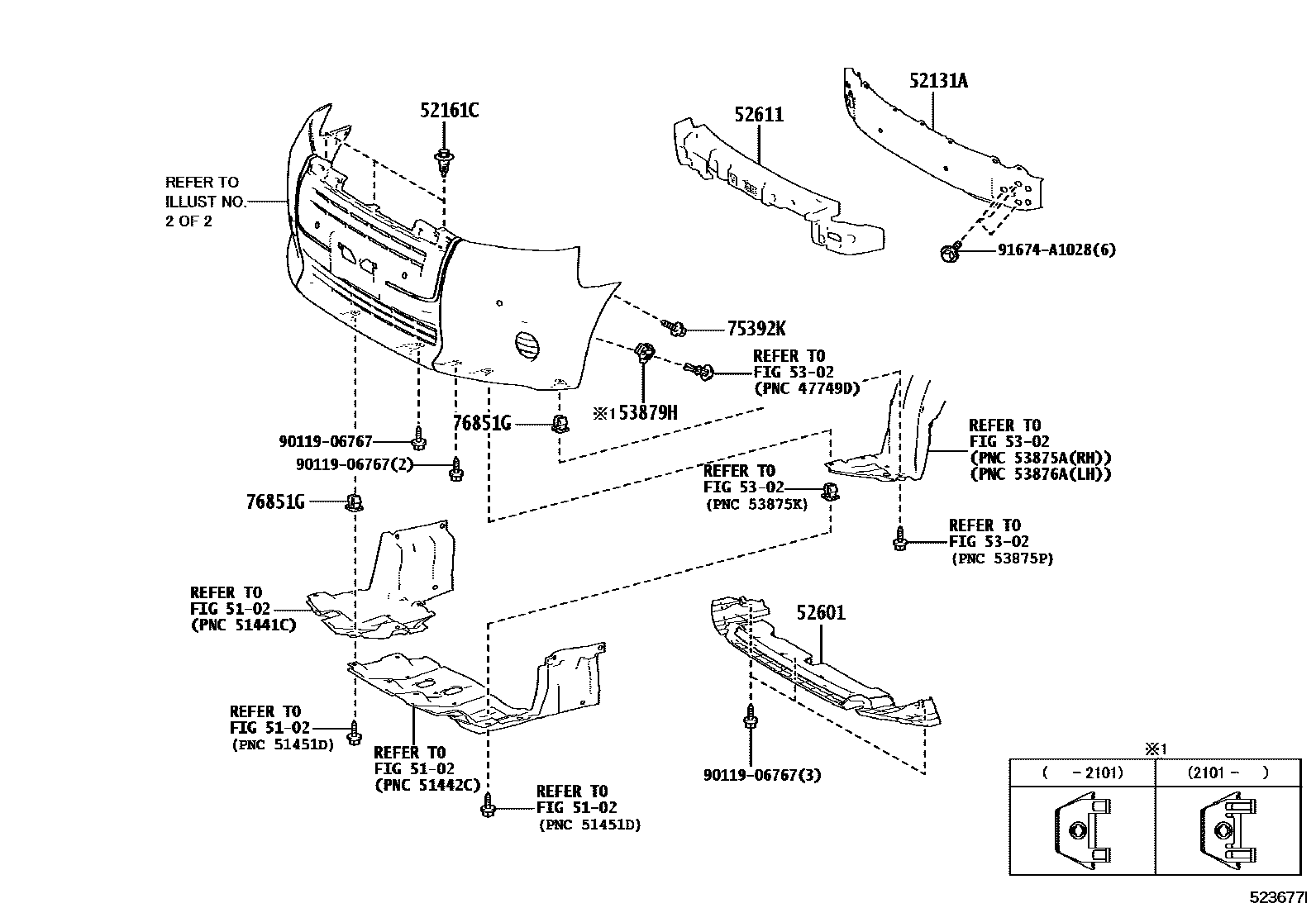

Parts diagram

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52131AREINFORCEMENT, FRONT BUMPER

52161CPIECE, FRONT BUMPER

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

52611ABSORBER, FRONT BUMPER ENERGY

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

75392KRETAINER, OUTSIDE MOULDING, NO.2

76851GGROMMET, SCREW, NO.1

9011906767

91674A1028

11 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 105110

This section contains 33 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 105110. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE.
