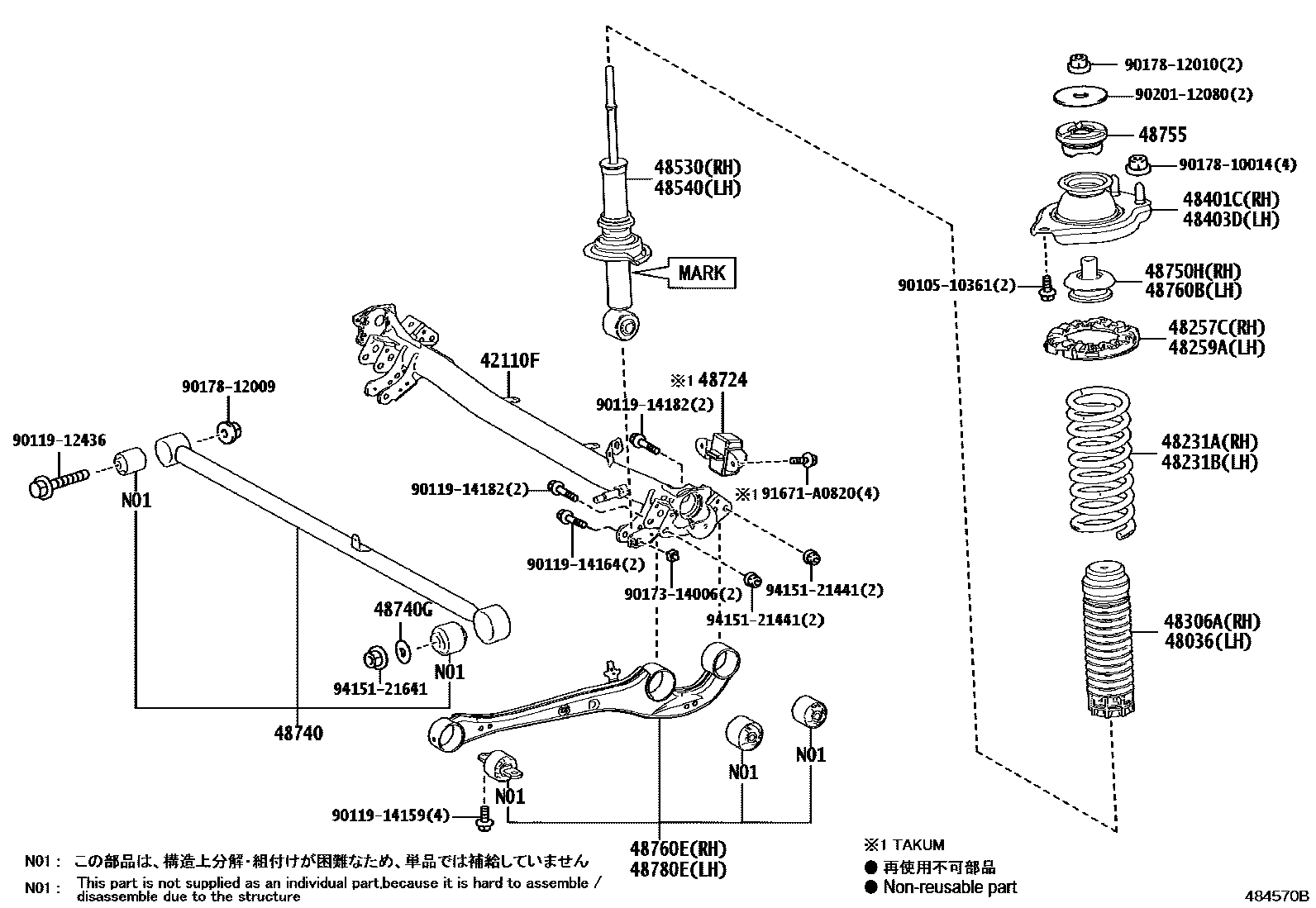

Toyota 105110 — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48036BUMPER SUB-ASSY, REAR SPRING, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48306ABUMPER SUB-ASSY, REAR SPRING, RH
48401CBRACKET SUB-ASSY, REAR SPRING, RH
48403DBRACKET SUB-ASSY, REAR SPRING, LH
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48724DAMPER, LWR CONTROL ARM DYNAMIC
48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760EARM ASSY, TRAILING, REAR RH
48780EARM ASSY, TRAILING, REAR LH
9010510361
9011912436
9011914159
9011914164
9011914182
9017314006
9017810014
9017812009
9017812010
9020112080
91671A0820
9415121441
9415121641
32 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota 105110
This section contains 32 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota 105110. Key components include: BEAM ASSY, REAR AXLE, BUMPER SUB-ASSY, REAR SPRING, LH, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, INSULATOR, REAR COIL SPRING, UPPER RH.
