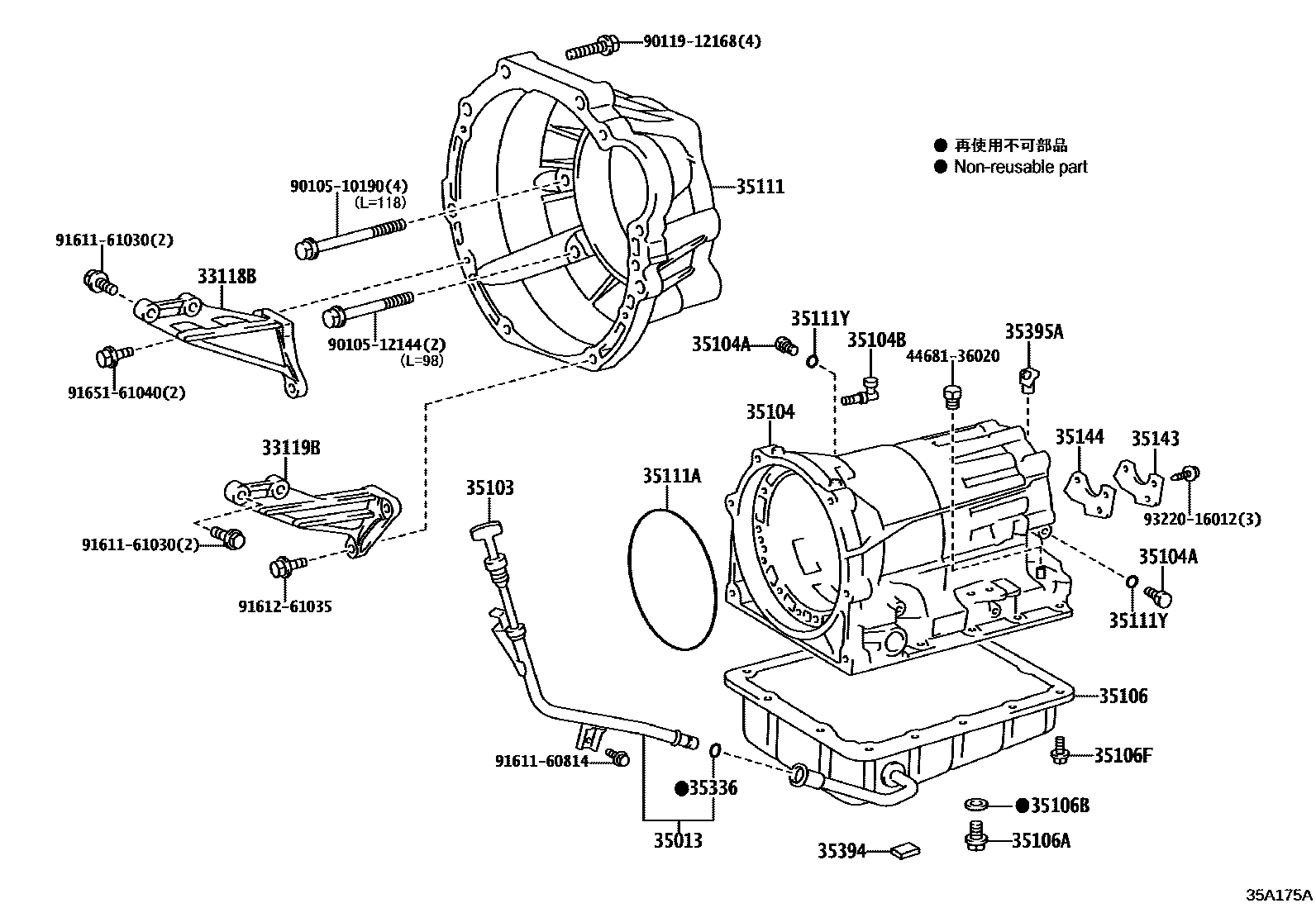

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A43D 0002 1A43D 0003 1A43D 0004 1A42D 0005 1A42DE 0006 1A340E 0007 1A340E 0008 1A340E

33118BPLATE, STIFFENER, RH(ATM)

main33118-14033iSXS13..4FC200108-200707

main33118-22051iGXS10199512-200102

main33118-25020iLXS11..4FC199512-199908

main33118-36031iYXS10..CRW..4HC; YXS10..SED..4HC200210-200706

33119BPLATE, STIFFENER, LH(ATM)

main33119-14050iSXS11..4FC199604-200108

main33119-22042iGBS12200108

main33119-25020iLXS11..4FC199512-199908

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22440iSXS13..4FC200108-200707

main35013-22480iSXS11..4FC199604-200108

main35013-22530iGXS12200108-200708

main35013-43010iGXS10199512-200102

main35013-43020iYXS1#..ATM199512-200108

main35013-43030iLXS11..4FC199512-199908

main35013-43040iGBS12200210

main35013-43050iTSS13..4FC200709

main35013-43060iTSS10,11..4FC200808

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22340iSXS13..4FC200108-200707

main35103-22420iGXS12200108-200708

main35103-43010iGXS10199512-200102

main35103-43020iYXS1#..4FC;YXS10..CRW..4HC200108

main35103-43030iLXS11..4FC199512-199908

main35103-43040iGBS12200210

main35103-43050iTSS13..4FC200709

main35103-43060iTSS10,11..4FC200808-200809

main35103-43061iTSS10,11..4FC200809-201008

main35103-43070iTSS10,11..4FC201008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iGXS12200108-200708

main35104-22070iTSS11,13..4FC..DLX200709

main35104-26021iGXS10,SXS11..ATM199512-200108

main35104-30160iYXS10..CRW..4HC200108-200706

main35104-43010iGBS12200210-200808

main35104-43020iTSS10,11..(CRW,SED,TAX)..4FC200808

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iGXS12200108-200708

main90930-03108iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main90930-03168iGXS12200108-200708

main90930-03173iGBS12200210

main90930-03195iTSS1#..4FC200709

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22090iSXS11..4FC199604-200108

main35106-22101iGXS12200108-200708

main35106-30061iSXS13..4FC200108-200707

main35106-30091iGXS10,LXS11..ATM199512-200102

main35106-30210iTSS1#..4FC200709

main35106-43010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35106-43020iGBS12200210

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

main90341-10011iTSS1#..4FC; YXS10..4HC200709

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGXS12200304-200708

main35178-50010iGBS12,GXS12200108-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iSXS13..4FC200108-200707

main90119-06410×14iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main90119-06513×19iTSS1#..4FC200709

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22071iSXS11..4FC199604-200108

main35111-24010iGXS10200110-200210

main35111-26030iLXS11..4FC199512-199908

main35111-28080iSXS13..4FC200108-200707

main35111-30120iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35111-43010iGBS12200210

main35111-43020iTSS1#..4FC200709

main35111-53010iGXS12200108-200708

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGXS10200108-200210

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iTSS1#..4FC; YXS10..4HC200709

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iGXS10200108-200210

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×5iSXS13..4FC200108-200707

35395ASTRAINER, GOVERNOR OIL

main35395-40010iYXS10..4HC200709

4468136020PLUG, BOOSTER

main44681-36020

9010510190

main90105-10190

9010512144

main90105-12144

9011912168

main90119-12168

9161160814

main91611-60814

9161161030

main91611-61030

9161261035

main91612-61035

9165161040

main91651-61040

9322016012

main93220-16012

28 parts on this diagram · 8 diagrams in section
