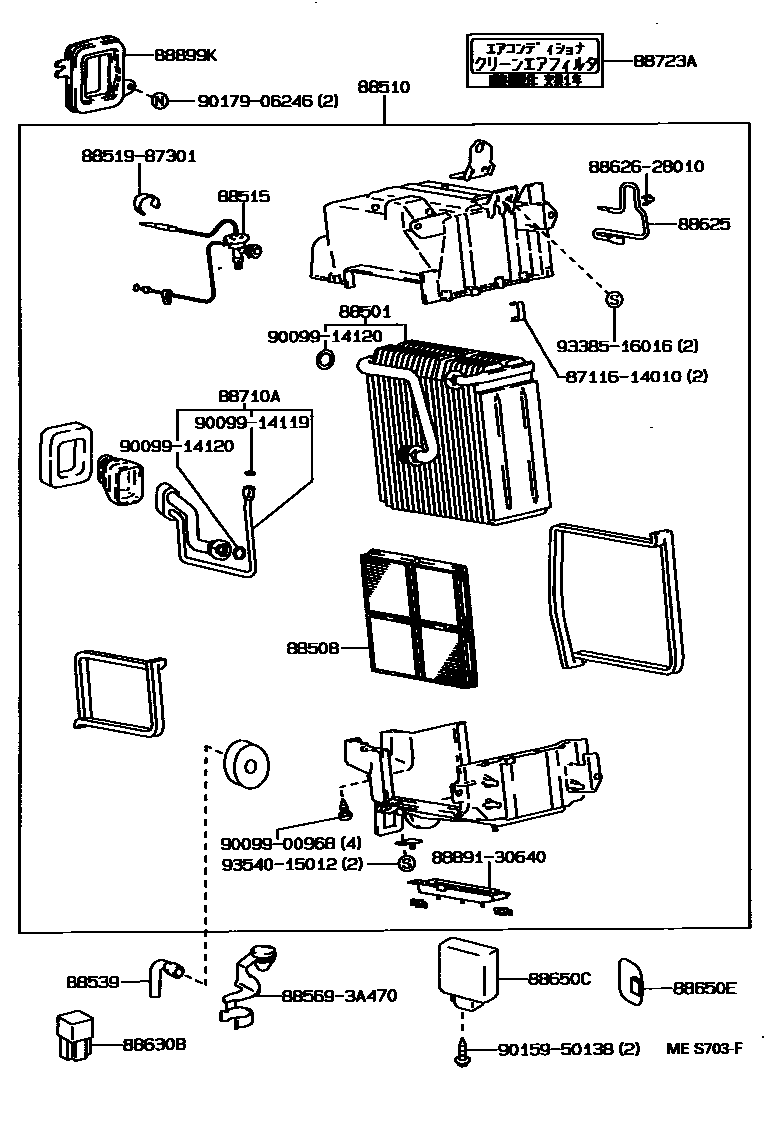

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30700iJZS147,UZS143199110-199505

main88501-30701iJZS147,UZS143199505-199708

88508FILTER SUB-ASSY, CLEAN AIR

main88508-30020×2iJZS147,UZS143199110-199308

88510UNIT ASSY, COOLER

main88510-3A510iJZS147,UZS143199110-199708

main88510-3A740iJZS147,UZS143199110-199308

main88510-3F160iJZS147,UZS143199308-199708

88515VALVE, COOLER EXPANSION

main88515-30430iJZS147,UZS143199110-199708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30650iJZS147199110-199708

main88539-30720iUZS143199210-199708

88625THERMISTOR, COOLER, NO.1

main88625-3A020iJZS147,UZS143199110-199708

88630BRELAY ASSY, COOLER

main90987-02009iJZS147,UZS143199308-199708

main90987-02010iJZS147,UZS143199110-199308

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-30740iJZS147..V199110-199708

main88650-30750iJZS147..Q199110-199708

main88650-30800iUZS143199210-199708

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-30790iJZS147,UZS143199110-199708

88710ATUBE ASSY, AIR CONDITIONER

main88710-30530iJZS147,UZS143199110-199708

88723ALABEL, COOLER SERVICE CAUTION

main88723-30070iJZS147,UZS143199110-199308

88899KPLATE, COVER

main88899-30750iJZS147,UZS143199110-199708

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8851987301HOLDER, REMOTE BULB

main88519-87301

885693A470CLAMP (FOR COOLER RELAY)

main88569-3A470

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8889130640PACKING (FOR COOLER)

main88891-30640

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9015950138

main90159-50138

9017906246

main90179-06246

9338516016

main93385-16016

9354015012

main93540-15012

24 parts on this diagram · 3 diagrams in section
