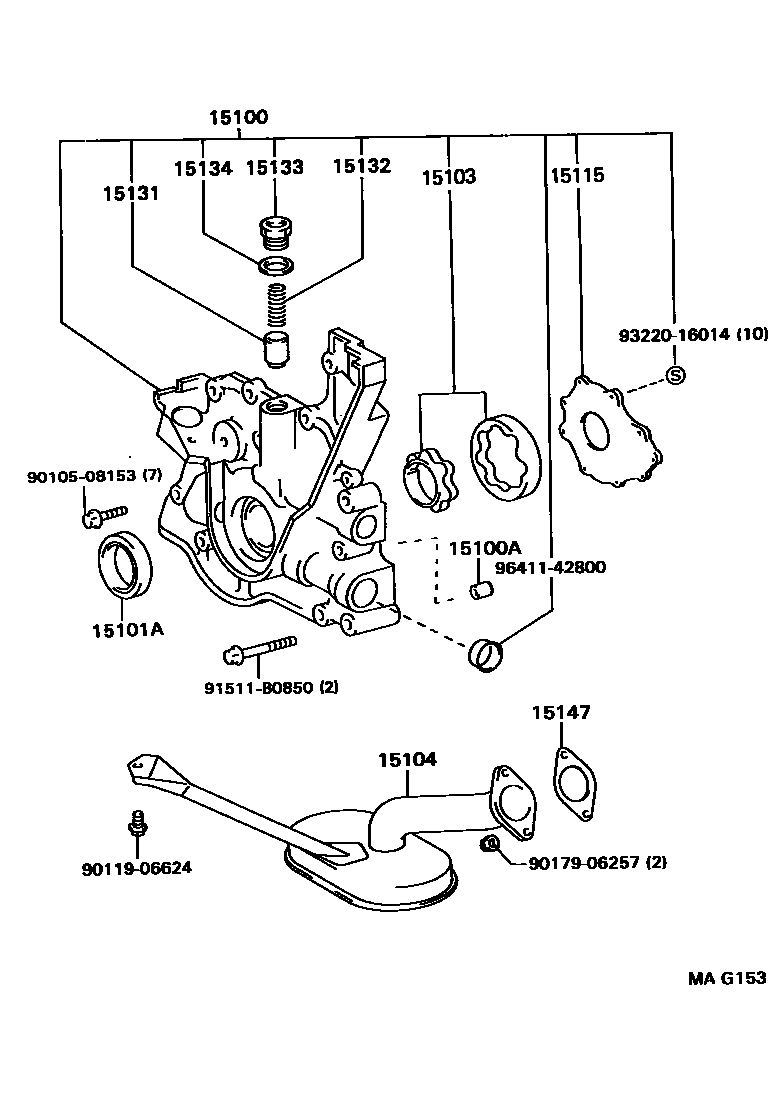

ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15101BODY SUB-ASSY, OIL PUMP
15101ASEAL(FOR CRANKSHAFT)
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15134GASKET, OIL PUMP RELIEF VALVE
15147GASKET, OIL STRAINER
9010508153
main90105-08153
9011906624
main90119-06624
9017906257
main90179-06257
91511B0850
main91511-B0850
9322016014
main93220-16014
9641142800
main96411-42800
18 parts on this diagram · 3 diagrams in section
