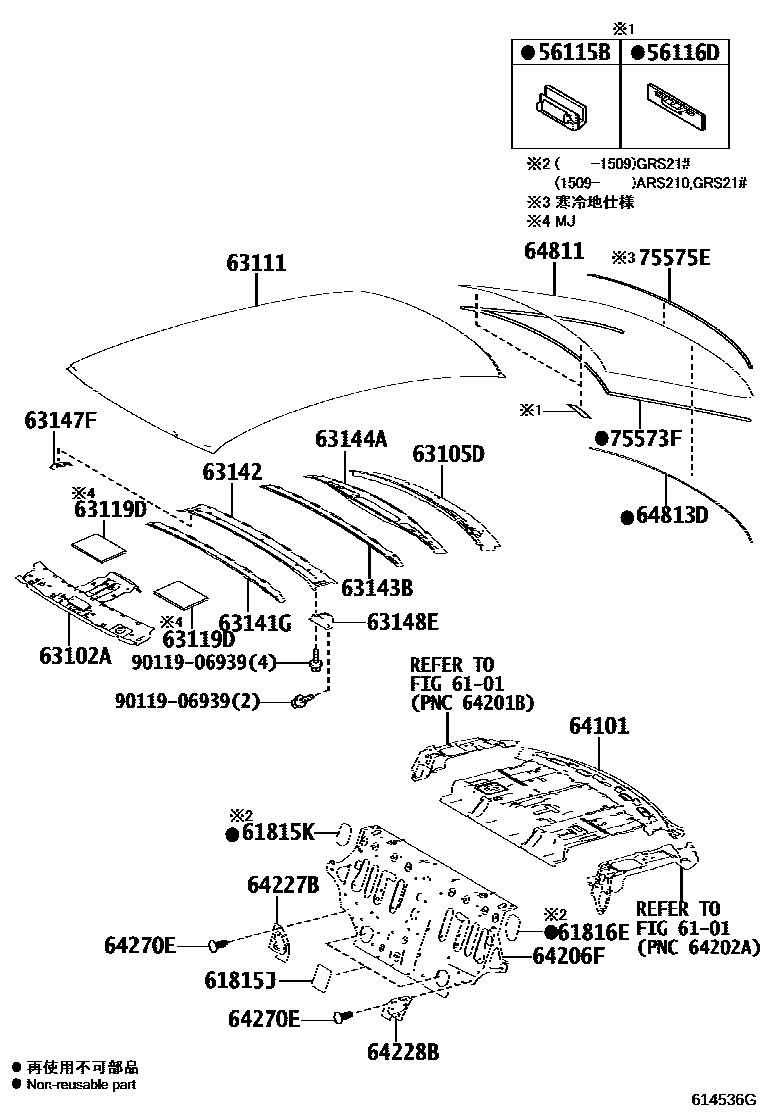

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(��� ���) ��� ���� 0003 1��(��� ���) ��������� ��� 0004 1��(��� ���) ��������� ���

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110×2iAWS21#,GRS21#,GWS214201212-201509

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iARS210,AWS21#,GRS21#,GWS214201509-201804

6101SIDE MEMBER

→ Go to FIG 61-01

61815JCOVER, ROOF SIDE, INNER UPPER

main61815-30120×2iARS210,AWS21#,GRS21#,GWS214201509-201804

61815KCOVER, ROOF SIDE, INNER UPPER RH

main61815-30130iARS210,GRS21#201509-201804

61816ECOVER, ROOF SIDE, INNER UPPER LH

main61816-30120iARS210,GRS21#201509-201804

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30905iARS210,AWS21#,GRS21#,GWS214201509-201804

main63102-30906iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-30100iARS210,AWS21#,GRS21#,GWS214201509-201804

63111PANEL, ROOF

main63111-30860iAWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201509

main63111-30870iAWS210,211,GRS21#..ATHS,ROY201212-201509

main63111-30880iAWS210,211,GRS21#..ATHG,ROYG; AWS210,211,GRS21#..ATHS,ROY201212-201509

main63111-30890iAWS210,211,GRS21#..ATHG,ROYG; AWS210,211,GRS21#..ATHS,ROY201212-201509

main63111-30A10supersedes 63111-30A00iAWS215,GWS214201309-201509

main63111-30A30iARS210,AWS210,211,GRS21#..ATHG,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main63111-30A40iARS210,AWS210,211,GRS21#..ATHG,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

main63111-30A60supersedes 63111-30A50iAWS215,GWS214201509-201804

63119SUPPORT, ROOF PANEL, LH

main63118-30140iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

63119DPAD, ROOF PANEL, NO.1

main63119-22050×2iAWS215,GWS214201309-201509

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-30310iAWS21#,GRS21#,GWS214201212-201509

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-30240iARS210,AWS21#,GRS21#,GWS214201509-201804

main63142-30200iAWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,GRS21#..ATHS,ROY201212-201407

main63142-30201iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; AWS210,211,GRS21#..ATHS,ROY201408-201509

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-30230iARS210,AWS210,211,GRS21#201509-201804

main63144-30240iAWS215,GWS214201309-201509

main63148-30210iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG; ARS210,AWS210,211,GRS21#..ATHS,ROY201509-201804

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63128-30110iAWS210,211,GRS21#201212-201509

main63128-30120iAWS215,GWS214201309-201509

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63146-30120iAWS21#,GRS21#,GWS214201212-201509

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-30050iARS210,AWS21#,GRS21#,GWS214201509-201804

64101PANEL SUB-ASSY, UPPER BACK

main64101-30A70iAWS21#,GRS21#,GWS214201212-201509

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30110iAWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL201212-201509

main64206-30150iAWS21#,GRS210,211..MJ,ROYG; AWS210,211,GRS210,211..ROY201212-201509

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30130iARS210,AWS21#,GRS21#,GWS214201509-201804

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30110iAWS21#,GRS21#,GWS214201212-201509

64270ECLIP

main90467-08186-C0×6iAWS21#,GRS21#,GWS214201212-201509

BLACK

main90467-08186-C3×6iARS210,AWS21#,GRS21#,GWS214201610-201804

BLACK

64811GLASS, BACK WINDOW

main64801-30929iAWS210,211,GRS210,211..ATH,ROYAL; AWS210,211,GRS210,211..ATHS,ROY201212-201509

main64801-30932iARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG201509-201804

main64801-30937iAWS215,GWS214201309-201509

main64801-30930iAWS210,211,GRS210,211..ATHS,ROY201212-201509

main64801-30931iAWS210,211,GRS210,211..ATHS,ROY201212-201509

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iARS210,AWS21#,GRS21#,GWS214201509-201804

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-30410iAWS21#,GRS21#,GWS214201212-201509

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-30320iAWS21#,GRS21#,GWS214; AWS210,211,GRS210,211..ATHS,ROY201212-201509

9011906939

main90119-06939

27 parts on this diagram · 4 diagrams in section
