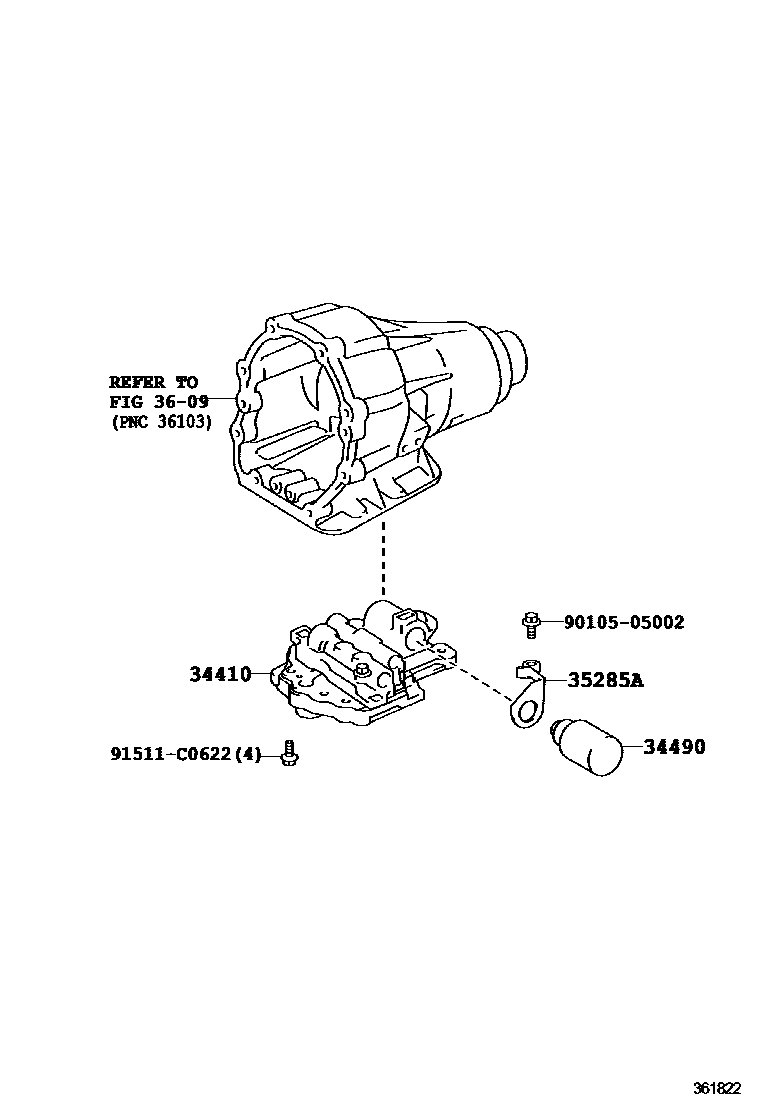

TRANSFER VALVE BODY & VALVE LEVER

34410BODY ASSY, TRANSFER CONTROL VALVE

main34410-30010iGRS211201212-201509

34490SOLENOID ASSY, TRANSFER CONTROL

main34490-30020iGRS211201212-201509

35285APLATE, SOLENOID LOCK

main35285-30050iGRS211201212-201509

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9010505002

main90105-05002

91511C0622

main91511-C0622

6 parts on this diagram · 1 diagram in section
