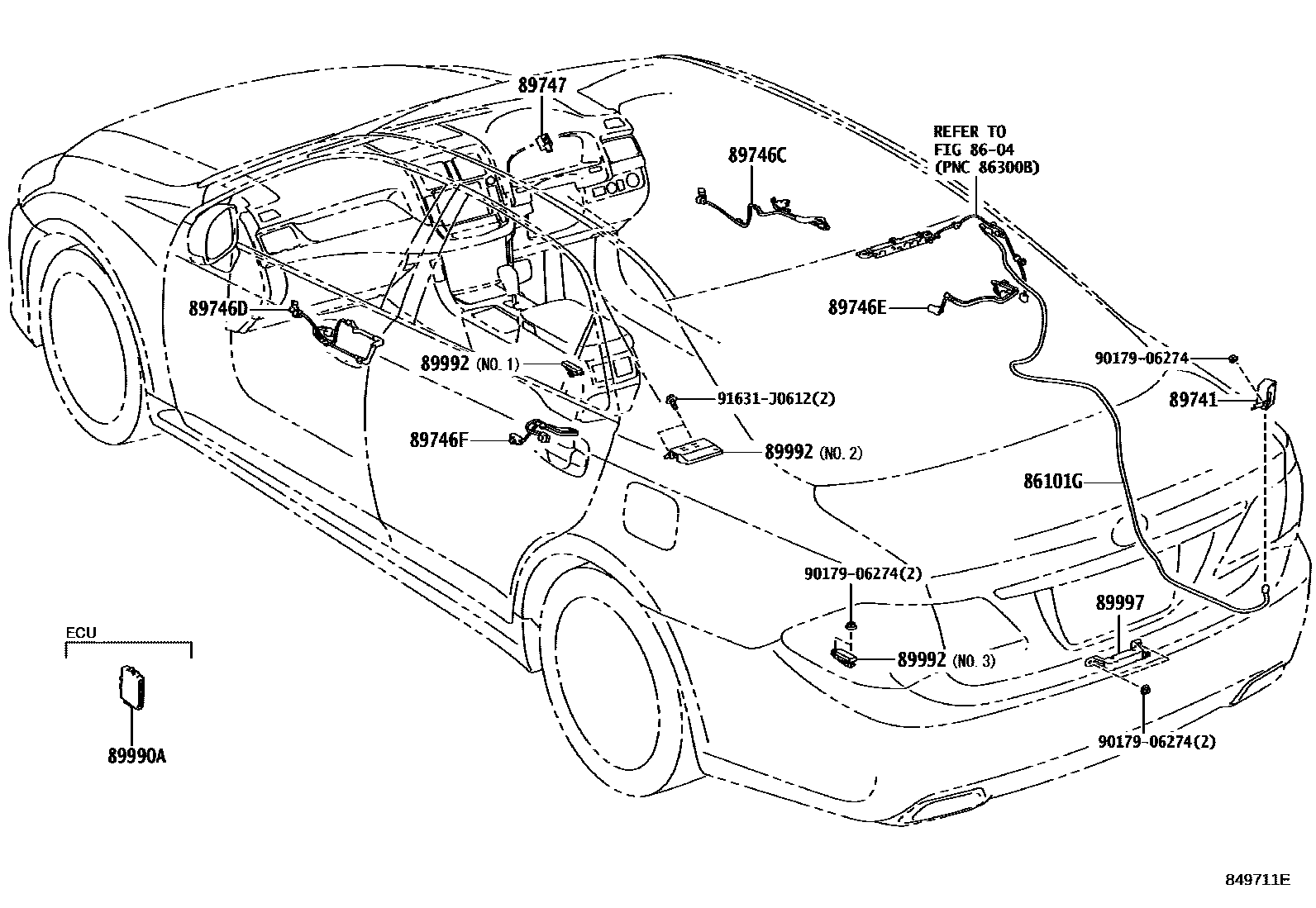

WIRELESS DOOR LOCK

8604ANTENNA

→ Go to FIG 86-04

86101GCORD SUB-ASSY, ANTENNA

main86101-30C00iGRS20#,GWS204200802-201002

89741RECEIVER, DOOR CONTROL

main89740-30230iGRS20#,GWS204200802-201002

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30180iGRS20#,GWS204200802-201002

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30190iGRS20#,GWS204200802-201002

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main82157-30020iGRS20#,GWS204..CBU201002-201212

main89746-30200iGRS20#,GWS204200802-201002

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main82158-30020iGRS20#,GWS204..CBU201002-201212

main89746-30210iGRS20#,GWS204200802-201002

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRS20#,GWS204200802-201002

89990ACOMPUTER ASSY, SMART KEY

main89990-30140iGRS20#,GWS204200802-200810

main89990-30141iGRS20#,GWS204200811-201002

main89990-30180iGRS20#,GWS204..CBU201002-201212

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30050iGRS20#,GWS204..CBU201002-201212

main89992-30060iGRS20#,GWS204200802-201002

main89992-30070iGRS20#,GWS204200802-201002

main899A0-22010iGRS20#,GWS204..CBU201002-201212

89997ANTENNA, ELECTRICAL KEY

main89997-30070iGRS20#,GWS204200802-201002

9017906274

main90179-06274

91631J0612

main91631-J0612

13 parts on this diagram · 1 diagram in section
