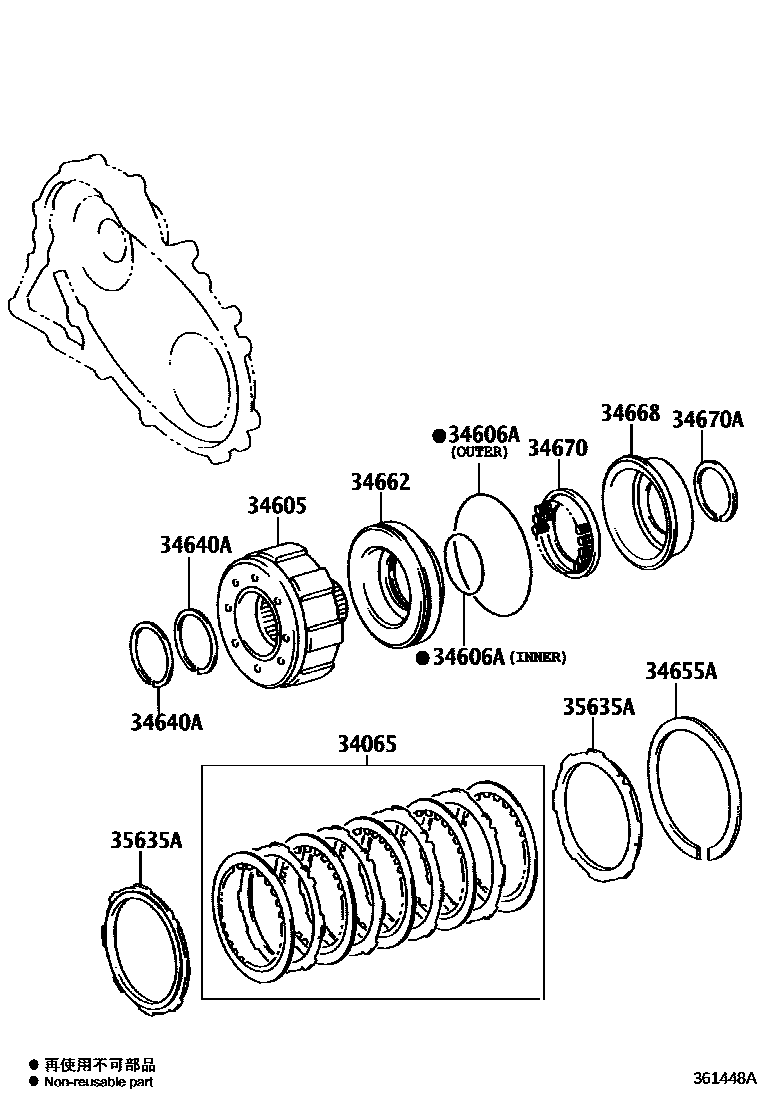

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iGRS201,203..CBU201002-201212

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGRS201,203200802-201002

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGRS201,203..CBU201002-201212

main90301-99058iGRS201,203200802-201002

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030×2iGRS201,203200802-201002

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGRS201,203200802-201002

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iGRS201,203..CBU201002-201212

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGRS201,203200802-201002

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGRS201,203200802-201002

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGRS201,203200802-201002

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGRS201,203200802-201002

main35635-30080iGRS201,203..CBU201002-201212

main35635-30090×2iGRS201,203200802-201002

10 parts on this diagram · 1 diagram in section
