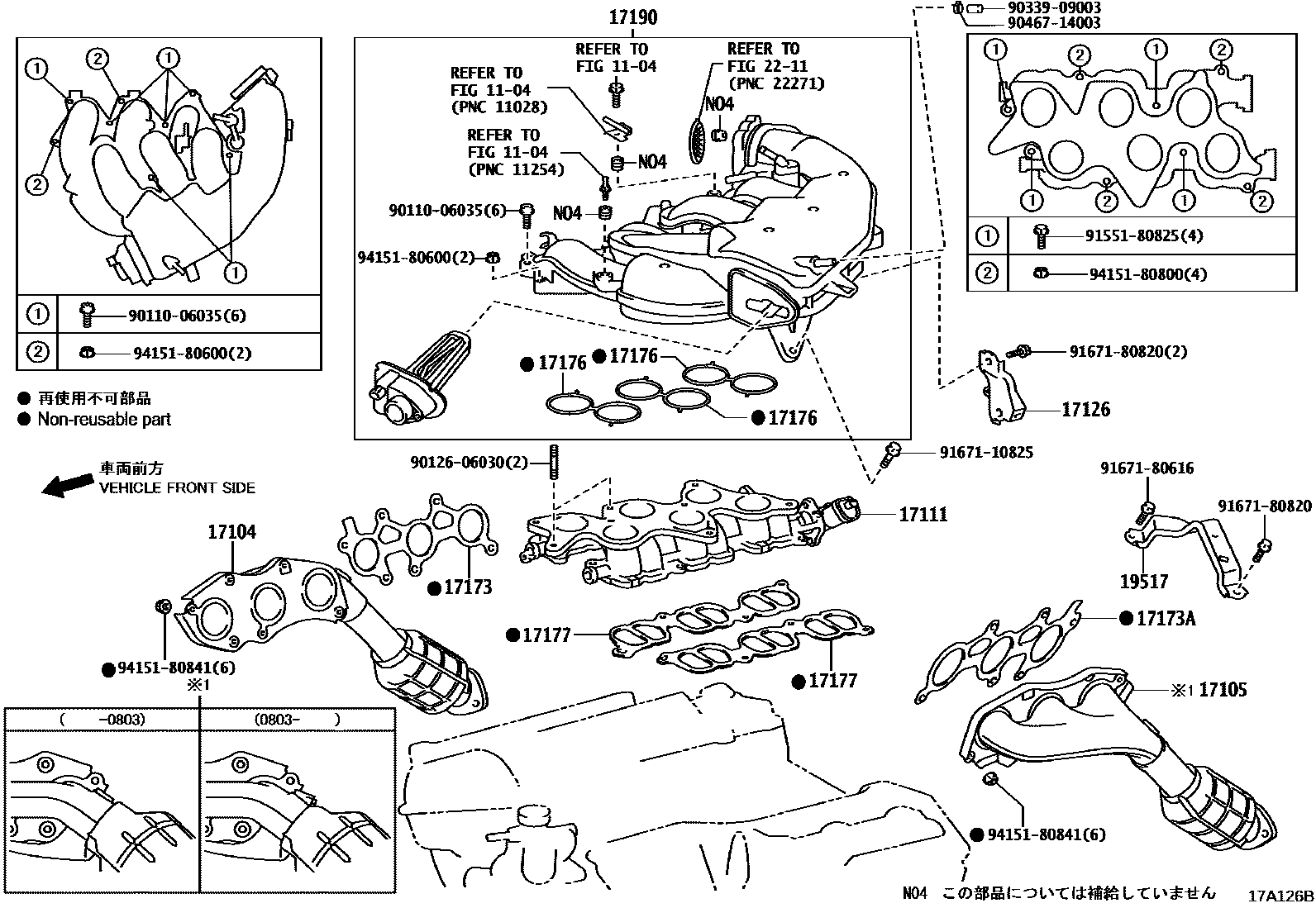

MANIFOLD

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31040i4GRFSE..GRS201200802-201002

main17140-31141i2GRFSE..GWS204200805-201212

main17140-31190i3GRFSE..GRS203200802-201002

main17140-31330i3GRFSE,4GRFSE..GRS200,202200802-201002

main17140-31340i2GRFSE..GRS204200802-201002

main17140-31570i2GRFSE..GRS204201002-201212

main17140-31580i4GRFSE..GRS201201002-201212

main17140-31640i3GRFSE,4GRFSE..GRS200,202..CBU201002-201212

main17140-31690i3GRFSE..GRS203..CBU201002-201212

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31030i3GRFSE,4GRFSE..GRS200,202200802-201002

main17150-31040i4GRFSE..GRS201200802-200803

main17150-31120i2GRFSE..GRS204200802-201002

main17150-31141i2GRFSE..GWS204200805-201212

main17150-31190i3GRFSE..GRS203200802-200803

main17150-31430i3GRFSE..GRS203200803-201002

main17150-31450i4GRFSE..GRS201200803-201002

main17150-31570i2GRFSE..GRS204201002-201212

main17150-31580i4GRFSE..GRS201201002-201004

main17150-31640i3GRFSE,4GRFSE..GRS200,202..CBU201002-201212

main17150-31690i3GRFSE..GRS203..CBU201002-201212

main17150-31700i4GRFSE..GRS201201005-201212

17111MANIFOLD, INTAKE

main17111-31170i2GRFSE..GRS204,GWS204200802-201107

main17111-31171i2GRFSE..GRS204,GWS204201107-201212

main17120-31020i4GRFSE..GRS200,201..CBU200802-201212

main17120-31060i3GRFSE..GRS202,203200802-201212

17126STAY, SURGE TANK, NO.2

main17126-31020i3GRFSE,4GRFSE..GRS200,201,202,203200802-201212

main17126-31050i2GRFSE..GRS204,GWS204200802-201212

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050i4GRFSE..GRS200,201200802-201212

main17176-31060i2GRFSE..GRS204,GWS204200802-201212

main17176-31080i3GRFSE..GRS202,203..CBU200802-201212

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020i3GRFSE,4GRFSE..GRS200,201,202,203200802-201110

main17177-31021i3GRFSE,4GRFSE..GRS200,201,202,203..CBU201110-201212

main17177-31060i2GRFSE..GRS204,GWS204200802-201107

main17177-31061i2GRFSE..GRS204,GWS204201107-201212

17190TANK ASSY, INTAKE AIR SURGE

main17190-31040i4GRFSE..GRS200,201..CBU200802-201212

main17190-31100i2GRFSE..GRS204,GWS204200802-201212

main17190-31110i3GRFSE..GRS202,203200802-201212

19517BRACKET, IGNITION COIL COVER

main19517-31010i3GRFSE,4GRFSE..GRS200,201,202,203200802-201212

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167110825

main91671-10825

9167180616

main91671-80616

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 3 diagrams in section
