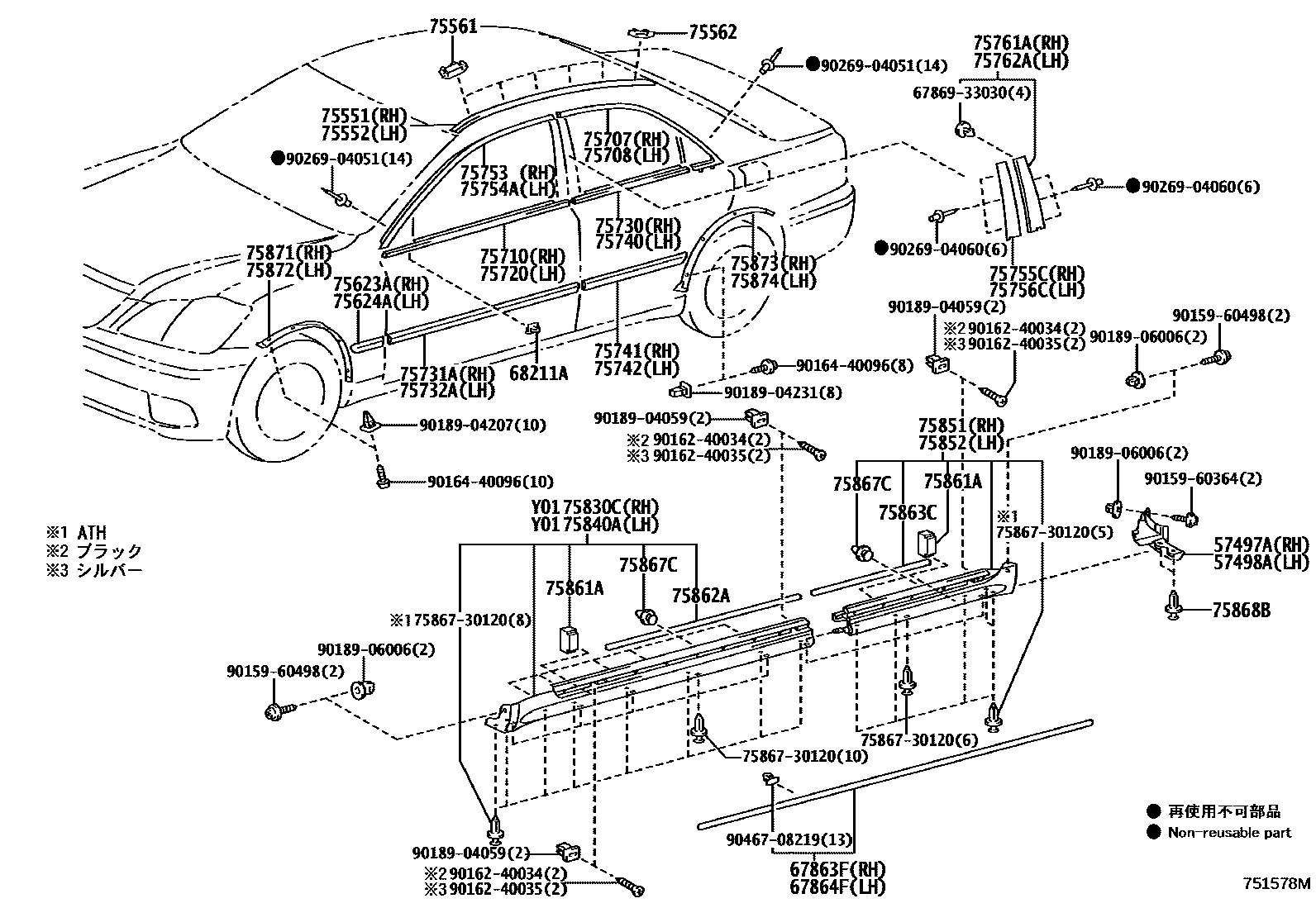

SIDE MOULDING

0001 1 0002 1

57497ASHIELD, REAR FLOOR HOUSING

main57497-30030iGRS18#200312-200509

main57497-30040iUZS18#200406-200606

57498ASHIELD, REAR FLOOR HOUSING, NO.2

main57498-30030iGRS18#200312-200509

main57498-30040iUZS18#200606

67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-30130iUZS18#200606

67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-30130iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

68211ACLIP, DOOR BELT MOULDING

main68211-30180×2iGRS18#,UZS18#200312-200509

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30440-A0iGRS18#200509-200802

SUPER WHITE 2,040

main75551-30440-A1iGRS18#200509-200802

WHITE PEARL CS.,062

main75551-30440-B0iGRS18#200312-200509

SILVER ME.,1C0

main75551-30440-B1iGRS18#200509-200802

PREMIUM SILVER PEARL,1F3

main75551-30440-B2iGRS18#200509-200802

SILVER ME.,1F7

main75551-30440-B3iGRS18#200509-200802

QUARTZ GRAY PM.,1G4

main75551-30440-C0iGRS18#200509-200802

BLACK,202

main75551-30440-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75551-30440-D1iGRS18#200509-200704

GINGER RED M.M.,3R6

main75551-30440-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75551-30440-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75551-30440-J2iGRS18#200509-200802

DK.BLUE MC.,8S6

main75551-30480-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main75551-30480-B0iUZS18#200406-200606

SILVER ME.,1C0

main75551-30480-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75551-30480-B2iUZS18#200606

SILVER ME.,1F7

main75551-30480-B3iUZS18#200606

GRAY ME.,1F9

main75551-30480-C0iUZS18#200606

BLACK,202

main75551-30480-D0iUZS18#200606

BLACKISH RED MC.,3R0

main75551-30480-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75551-30480-J0iUZS18#200606

DARK BLUE MC.,8P8

main75551-30440-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30440-A0iGRS18#200509-200802

SUPER WHITE 2,040

main75552-30440-A1iGRS18#200509-200802

WHITE PEARL CS.,062

main75552-30440-B0iGRS18#200312-200509

SILVER ME.,1C0

main75552-30440-B1iGRS18#200312-200509

SATIN PEARL MC.,1F3

main75552-30440-B2iGRS18#200509-200802

SILVER ME.,1F7

main75552-30440-B3iGRS18#200509-200802

QUARTZ GRAY PM.,1G4

main75552-30440-C0iGRS18#200312-200509

BLACK,202

main75552-30440-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75552-30440-D1iGRS18#200509-200704

GINGER RED M.M.,3R6

main75552-30440-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75552-30440-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75552-30440-J2iGRS18#200509-200802

DK.BLUE MC.,8S6

main75552-30480-A0iUZS18#200606

WHITE PEARL CS.,062

main75552-30480-B0iUZS18#200406-200606

SILVER ME.,1C0

main75552-30480-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75552-30480-B2iUZS18#200606

SILVER ME.,1F7

main75552-30480-B3iUZS18#200606

GRAY ME.,1F9

main75552-30480-C0iUZS18#200406-200606

BLACK,202

main75552-30480-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75552-30480-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75552-30480-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75552-30440-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-30110×4iUZS18#200606

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-30060×2iGRS18#,UZS18#200312-200509

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-30390-A0iGRS18#..ROY,ROYEX,ROYG200312-200509

SUPER WHITE 2,040

main75623-30390-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75623-30390-B0iGRS18#200312-200509

SILVER ME.,1C0

main75623-30390-B1iGRS18#200509-200512

PREMIUM SILVER PEARL,1F3

main75623-30390-B2iGRS18#200509-200512

SILVER ME.,1F7

main75623-30390-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75623-30390-C0iGRS18#200509-200512

BLACK,202

main75623-30390-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75623-30390-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75623-30390-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75623-30390-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75623-30390-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75623-30391-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75623-30391-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75623-30391-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75623-30391-B2iGRS18#200601-200802

SILVER ME.,1F7

main75623-30391-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75623-30391-C0iGRS18#200601-200802

BLACK,202

main75623-30391-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75623-30391-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75623-30391-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75623-30410-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main75623-30410-B0iUZS18#200406-200606

SILVER ME.,1C0

main75623-30410-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75623-30410-B2iUZS18#200606

SILVER ME.,1F7

main75623-30410-B3iUZS18#200606

GRAY ME.,1F9

main75623-30410-C0iUZS18#200606

BLACK,202

main75623-30410-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75623-30410-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75623-30410-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75623-30390-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-30390-A0iGRS18#200509-200512

SUPER WHITE 2,040

main75624-30390-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75624-30390-B0iGRS18#200312-200509

SILVER ME.,1C0

main75624-30390-B1iGRS18#200312-200509

PREMIUM SILVER PEARL,1F3

main75624-30390-B2iGRS18#200509-200512

SILVER ME.,1F7

main75624-30390-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75624-30390-C0iGRS18#200312-200509

BLACK,202

main75624-30390-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75624-30390-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75624-30390-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75624-30390-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75624-30390-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75624-30391-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75624-30391-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75624-30391-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75624-30391-B2iGRS18#200601-200802

SILVER ME.,1F7

main75624-30391-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75624-30391-C0iGRS18#200601-200802

BLACK,202

main75624-30391-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75624-30391-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75624-30391-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75624-30410-A0iUZS18#200606

WHITE PEARL CS.,062

main75624-30410-B0iUZS18#200406-200606

SILVER ME.,1C0

main75624-30410-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75624-30410-B2iUZS18#200606

SILVER ME.,1F7

main75624-30410-B3iUZS18#200606

GRAY ME.,1F9

main75624-30410-C0iUZS18#200606

BLACK,202

main75624-30410-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75624-30410-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75624-30410-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75624-30390-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-30050iGRS18#200312-200509

main75707-30070iUZS18#200406-200606

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-30060iGRS18#200312-200509

main75708-30080iUZS18#200606

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30470iGRS18#,UZS18#200312-200509

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30470iUZS18#200509-200606

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30350iUZS18#200509-200606

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-30540-A0iGRS18#..ROY,ROYEX,ROYG200312-200509

SUPER WHITE 2,040

main75731-30540-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75731-30540-B0iGRS18#200312-200509

SILVER ME.,1C0

main75731-30540-B1iGRS18#200509-200512

PREMIUM SILVER PEARL,1F3

main75731-30540-B2iGRS18#200509-200512

SILVER ME.,1F7

main75731-30540-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75731-30540-C0iGRS18#200312-200509

BLACK,202

main75731-30540-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75731-30540-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75731-30540-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75731-30540-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75731-30540-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75731-30541-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75731-30541-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75731-30541-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75731-30541-B2iGRS18#200601-200802

SILVER ME.,1F7

main75731-30541-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75731-30541-C0iGRS18#200601-200802

BLACK,202

main75731-30541-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75731-30541-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75731-30541-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75731-30560-A0iUZS18#200606

WHITE PEARL CS.,062

main75731-30560-B0iUZS18#200406-200606

SILVER ME.,1C0

main75731-30560-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75731-30560-B2iUZS18#200606

SILVER ME.,1F7

main75731-30560-B3iUZS18#200606

GRAY ME.,1F9

main75731-30560-C0iUZS18#200606

BLACK,202

main75731-30560-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75731-30560-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75731-30560-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75731-30540-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-30530-A0iGRS18#..ROY,ROYEX,ROYG200312-200509

SUPER WHITE 2,040

main75732-30530-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75732-30530-B0iGRS18#200312-200509

SILVER ME.,1C0

main75732-30530-B1iGRS18#200509-200512

PREMIUM SILVER PEARL,1F3

main75732-30530-B2iGRS18#200509-200512

SILVER ME.,1F7

main75732-30530-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75732-30530-C0iGRS18#200509-200512

BLACK,202

main75732-30530-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75732-30530-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75732-30530-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75732-30530-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75732-30530-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75732-30531-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75732-30531-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75732-30531-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75732-30531-B2iGRS18#200601-200802

SILVER ME.,1F7

main75732-30531-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75732-30531-C0iGRS18#200601-200802

BLACK,202

main75732-30531-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75732-30531-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75732-30531-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75732-30550-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main75732-30550-B0iUZS18#200406-200606

SILVER ME.,1C0

main75732-30550-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75732-30550-B2iUZS18#200606

SILVER ME.,1F7

main75732-30550-B3iUZS18#200606

GRAY ME.,1F9

main75732-30550-C0iUZS18#200406-200606

BLACK,202

main75732-30550-D0iUZS18#200606

BLACKISH RED MC.,3R0

main75732-30550-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75732-30550-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75732-30530-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30400iGRS18#,UZS18#200312-200509

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-30560-A0iGRS18#200509-200512

SUPER WHITE 2,040

main75741-30560-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75741-30560-B0iGRS18#200312-200509

SILVER ME.,1C0

main75741-30560-B1iGRS18#200312-200509

PREMIUM SILVER PEARL,1F3

main75741-30560-B2iGRS18#200509-200512

SILVER ME.,1F7

main75741-30560-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75741-30560-C0iGRS18#200509-200512

BLACK,202

main75741-30560-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75741-30560-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75741-30560-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75741-30560-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75741-30560-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75741-30561-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75741-30561-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75741-30561-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75741-30561-B2iGRS18#200601-200802

SILVER ME.,1F7

main75741-30561-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75741-30561-C0iGRS18#200601-200802

BLACK,202

main75741-30561-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75741-30561-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75741-30561-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75741-30580-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main75741-30580-B0iUZS18#200406-200606

SILVER ME.,1C0

main75741-30580-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75741-30580-B2iUZS18#200606

SILVER ME.,1F7

main75741-30580-B3iUZS18#200606

GRAY ME.,1F9

main75741-30580-C0iUZS18#200406-200606

BLACK,202

main75741-30580-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75741-30580-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75741-30580-J0iUZS18#200606

DARK BLUE MC.,8P8

main75741-30560-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-30520-A0iGRS18#..ROY,ROYEX,ROYG200312-200509

SUPER WHITE 2,040

main75742-30520-A1iGRS18#200509-200512

WHITE PEARL CS.,062

main75742-30520-B0iGRS18#200312-200509

SILVER ME.,1C0

main75742-30520-B1iGRS18#200509-200512

PREMIUM SILVER PEARL,1F3

main75742-30520-B2iGRS18#200509-200512

SILVER ME.,1F7

main75742-30520-B3iGRS18#200509-200512

QUARTZ GRAY PM.,1G4

main75742-30520-C0iGRS18#200509-200512

BLACK,202

main75742-30520-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75742-30520-D1iGRS18#200509-200512

GINGER RED M.M.,3R6

main75742-30520-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75742-30520-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75742-30520-J2iGRS18#200509-200512

DK.BLUE MC.,8S6

main75742-30521-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

SUPER WHITE 2,040

main75742-30521-A1iGRS18#200601-200802

WHITE PEARL CS.,062

main75742-30521-B1iGRS18#200601-200802

PREMIUM SILVER PEARL,1F3

main75742-30521-B2iGRS18#200601-200802

SILVER ME.,1F7

main75742-30521-B3iGRS18#200601-200802

QUARTZ GRAY PM.,1G4

main75742-30521-C0iGRS18#200601-200802

BLACK,202

main75742-30521-D0iGRS18#200704-200802

BLACKISH RED MC.,3R0

main75742-30521-D1iGRS18#200601-200704

GINGER RED M.M.,3R6

main75742-30521-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200601-200802

DK.BLUE MC.,8S6

main75742-30540-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main75742-30540-B0iUZS18#200406-200606

SILVER ME.,1C0

main75742-30540-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75742-30540-B2iUZS18#200606

SILVER ME.,1F7

main75742-30540-B3iUZS18#200606

GRAY ME.,1F9

main75742-30540-C0iUZS18#200406-200606

BLACK,202

main75742-30540-D0iUZS18#200606

BLACKISH RED MC.,3R0

main75742-30540-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75742-30540-J0iUZS18#200606

DARK BLUE MC.,8P8

main75742-30520-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30060iGRS18#,UZS18#200312-200412

main75753-30080iUZS18#200606

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30070iGRS18#,UZS18#200312-200412

main75754-30090iGRS18#200509-200802

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30110iGRS18#,UZS18#200312-200509

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30100iUZS18#200509-200606

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30100iGRS18#,UZS18#200312-200509

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30100iGRS18#,UZS18#200312-200509

75830CMOULDING ASSY, ROCKER PANEL, FRONT RH

main75830-30070-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SUPER WHITE 2,040

main75830-30070-A1iGRS18#..ROY,ROYEX,ROYG200312-200509

WHITE PEARL CS.,062

main75830-30070-B0iGRS18#..ROY,ROYEX,ROYG200312-200509

SILVER ME.,1C0

main75830-30070-B1iGRS18#..ROY,ROYEX,ROYG200312-200509

SATIN PEARL MC.,1F3

main75830-30070-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SILVER ME.,1F7

main75830-30070-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

QUARTZ GRAY PM.,1G4

main75830-30070-C0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACK,202

main75830-30070-D0iGRS180,181,182,183..ROY,ROYEX,ROYG200704-200802

BLACKISH RED MC.,3R0

main75830-30070-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200704

GINGER RED M.M.,3R6

main75830-30070-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75830-30070-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main75830-30080-A0iGRS180,181,184..ATH200509-200802

WHITE PEARL CS.,062

main75830-30080-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main75830-30080-B1iGRS180,181,184..ATH200509-200802

SATIN PEARL MC.,1F3

main75830-30080-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main75830-30080-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main75830-30080-C0iGRS180,181,182..ATH200312-200509

BLACK,202

main75830-30080-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main75830-30080-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75830-30090-A0iUZS18#200606

WHITE PEARL CS.,062

main75830-30090-B0iUZS18#200406-200606

SILVER ME.,1C0

main75830-30090-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75830-30090-B2iUZS18#200606

SILVER ME.,1F7

main75830-30090-B3iUZS18#200606

GRAY ME.,1F9

main75830-30090-C0iUZS18#200406-200606

BLACK,202

main75830-30090-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75830-30090-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75830-30090-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75830-30070-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main75830-30080-D9iGRS180,181,184..ATH200603-200703

75840AMOULDING ASSY, ROCKER PANEL, FRONT LH

main75840-30070-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SUPER WHITE 2,040

main75840-30070-A1iGRS18#..ROY,ROYEX,ROYG200312-200509

WHITE PEARL CS.,062

main75840-30070-B0iGRS18#..ROY,ROYEX,ROYG200312-200509

SILVER ME.,1C0

main75840-30070-B1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SATIN PEARL MC.,1F3

main75840-30070-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SILVER ME.,1F7

main75840-30070-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

QUARTZ GRAY PM.,1G4

main75840-30070-C0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACK,202

main75840-30070-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75840-30070-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200704

GINGER RED M.M.,3R6

main75840-30070-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75840-30070-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main75840-30080-A0iGRS180,181,184..ATH200509-200802

WHITE PEARL CS.,062

main75840-30080-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main75840-30080-B1iGRS180,181,182..ATH200408-200509

SATIN PEARL MC.,1F3

main75840-30080-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main75840-30080-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main75840-30080-C0iGRS180,181,182..ATH200312-200509

BLACK,202

main75840-30080-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main75840-30080-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75840-30090-A0iUZS18#200606

WHITE PEARL CS.,062

main75840-30090-B0iUZS18#200406-200606

SILVER ME.,1C0

main75840-30090-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75840-30090-B2iUZS18#200606

SILVER ME.,1F7

main75840-30090-B3iUZS18#200606

GRAY ME.,1F9

main75840-30090-C0iUZS18#200406-200606

BLACK,202

main75840-30090-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75840-30090-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75840-30090-J0iUZS18#200606

DARK BLUE MC.,8P8

main75840-30070-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main75840-30080-D9iGRS180,181,184..ATH200603-200703

75851MOULDING, ROCKER PANEL, RH

main75850-30300-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SUPER WHITE 2,040

main75850-30300-A1iGRS18#..ROY,ROYEX,ROYG200312-200509

WHITE PEARL CS.,062

main75850-30300-B0iGRS18#..ROY,ROYEX,ROYG200312-200509

SILVER ME.,1C0

main75850-30300-B1iGRS18#..ROY,ROYEX,ROYG200312-200509

SATIN PEARL MC.,1F3

main75850-30300-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SILVER ME.,1F7

main75850-30300-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

QUARTZ GRAY PM.,1G4

main75850-30300-C0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACK,202

main75850-30300-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75850-30300-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200704

GINGER RED M.M.,3R6

main75850-30300-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75850-30300-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main75850-30310-A0iGRS180,181,184..ATH200509-200802

WHITE PEARL CS.,062

main75850-30310-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main75850-30310-B1iGRS180,181,184..ATH200509-200802

SATIN PEARL MC.,1F3

main75850-30310-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main75850-30310-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main75850-30310-C0iGRS180,181,184..ATH200509-200802

BLACK,202

main75850-30310-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main75850-30310-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75850-30320-A0iUZS18#200606

WHITE PEARL CS.,062

main75850-30320-B0iUZS18#200406-200606

SILVER ME.,1C0

main75850-30320-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main75850-30320-B2iUZS18#200606

SILVER ME.,1F7

main75850-30320-B3iUZS18#200606

GRAY ME.,1F9

main75850-30320-C0iUZS18#200406-200606

BLACK,202

main75850-30320-D0iUZS18#200606

BLACKISH RED MC.,3R0

main75850-30320-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75850-30320-J0iUZS18#200606

DARK BLUE MC.,8P8

main75850-30300-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main75850-30310-D9iGRS180,181,184..ATH200603-200703

75852MOULDING, ROCKER PANEL, LH

main75860-30290-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SUPER WHITE 2,040

main75860-30290-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

WHITE PEARL CS.,062

main75860-30290-B0iGRS18#..ROY,ROYEX,ROYG200312-200509

SILVER ME.,1C0

main75860-30290-B1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SATIN PEARL MC.,1F3

main75860-30290-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SILVER ME.,1F7

main75860-30290-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

QUARTZ GRAY PM.,1G4

main75860-30290-C0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACK,202

main75860-30290-D0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACKISH RED MC.,3R0

main75860-30290-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200704

GINGER RED M.M.,3R6

main75860-30290-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main75860-30290-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main75860-30300-A0iGRS180,181,184..ATH200509-200802

WHITE PEARL CS.,062

main75860-30300-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main75860-30300-B1iGRS180,181,184..ATH200509-200802

SATIN PEARL MC.,1F3

main75860-30300-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main75860-30300-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main75860-30300-C0iGRS180,181,184..ATH200509-200802

BLACK,202

main75860-30300-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main75860-30300-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main75860-30310-A0iUZS18#200606

WHITE PEARL CS.,062

main75860-30310-B0iUZS18#200406-200606

SILVER ME.,1C0

main75860-30310-B1iUZS18#200606

PREMIUM SILVER PEARL,1F3

main75860-30310-B2iUZS18#200606

SILVER ME.,1F7

main75860-30310-B3iUZS18#200606

GRAY ME.,1F9

main75860-30310-C0iUZS18#200606

BLACK,202

main75860-30310-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main75860-30310-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main75860-30310-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main75860-30290-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main75860-30300-D9iGRS180,181,184..ATH200603-200703

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-30110×4iUZS18#200804

main75861-30130×4iUZS18#200509-200606

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-30120×2iGRS18#,UZS18#200312-200509

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75863-30080×2iGRS18#,UZS18#200312-200509

75867CCLIP, ROCKER PANEL MOULDING

main75867-30130×16iUZS18#200606

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-30120×4iGRS18#200509-200802

main75867-30140×4iUZS18#200802

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-30340iGRS18#200312-200509

main75871-30360iUZS18#200606

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-30340iGRS18#200509-200802

main75872-30360iUZS18#200406-200606

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-30340iGRS18#200509-200802

main75873-30360iUZS18#200606

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-30340iGRS18#200312-200509

main75874-30360iUZS18#200406-200606

6786933030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-33030

7586730120MOULDING, FRONT PANEL

main75867-30120

9015960364

main90159-60364

9015960498

main90159-60498

9016240034

main90162-40034

9016240035

main90162-40035

9016440096

main90164-40096

9018904059

main90189-04059

9018904207

main90189-04207

9018904231

main90189-04231

9018906006

main90189-06006

9026904051

main90269-04051

9026904060

main90269-04060

9046708219

main90467-08219

54 parts on this diagram · 2 diagrams in section
