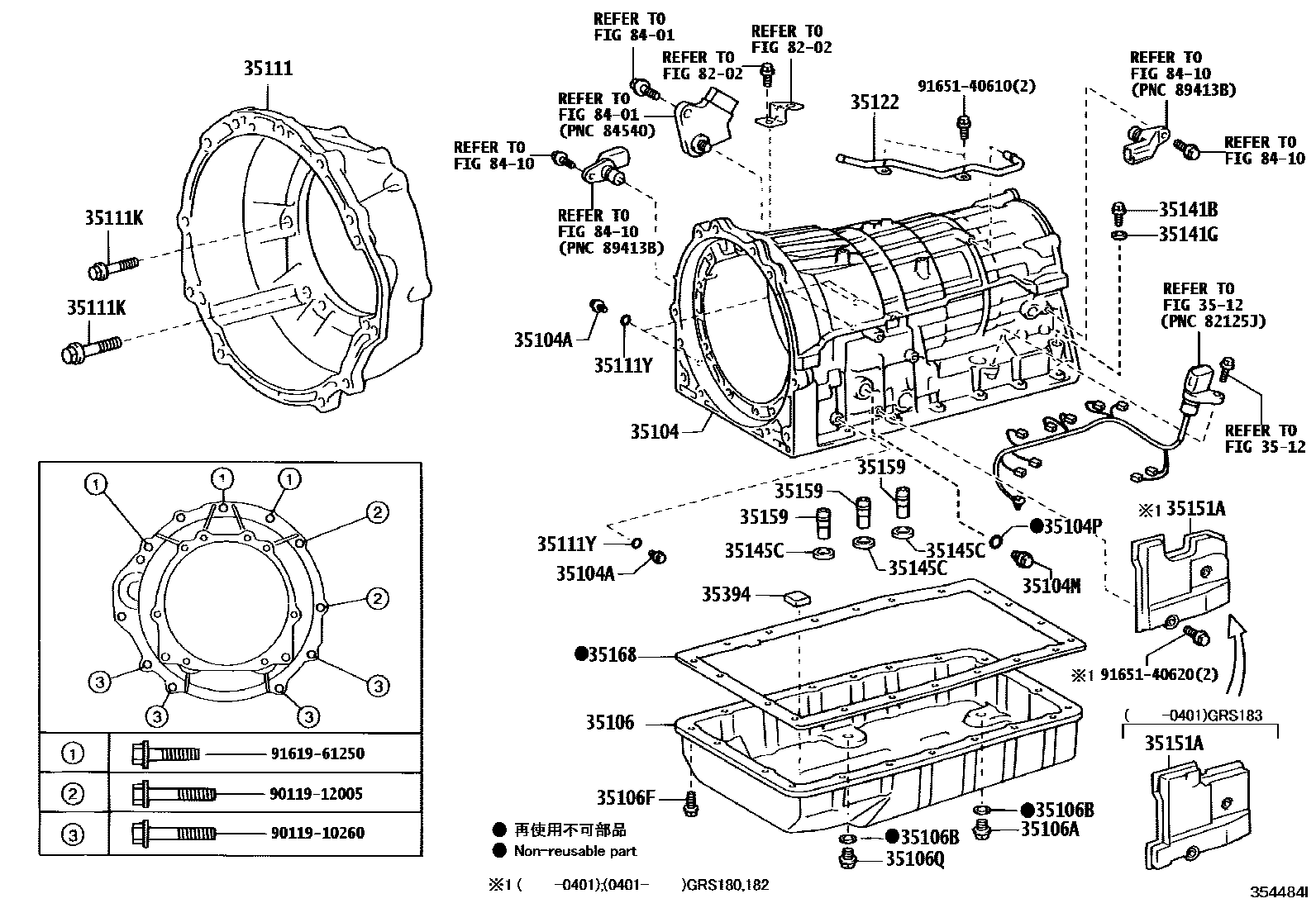

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750E,A750H,A760E,A760H 0003 1A761E,A761H 0004 1A960E 0005 1A760E

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRS180,182200509-200802

main35104-30220iGRS181,183200509-200802

main35104-50020iGRS184200509-200802

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRS18#200312-200509

35104MPLUG, REFILL(ATM)

main90341-18059iGRS18#200509-200802

35104PGASKET, REFILL PLUG(ATM)

main90301-15004iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22120iGRS180,182200509-200802

main35106-30260iUZS187200606

main35106-50040iUZS186200606

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRS18#200509-200802

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iUZS186200312-200606

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×20iGRS18#200312-200509

main90119-06173×20iUZS18#200610

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iUZS18#200606

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRS180,182200509-200802

main35111-30170iGRS18#200312-200408

main35111-30180iUZS187200606

main35111-30190iGRS18#200408-200509

main35111-50020iUZS186200606

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRS181200406-200509

main90119-10947×2iUZS18#200402-200606

main90119-12378×2iGRS18#200509-200802

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRS18#200509-200802

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03171iUZS18#200606

main90930-03181iGRS180,182200509-200802

main90930-03184iGRS184200509-200802

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRS18#200509-200802

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11006iUZS18#200312-200606

main90301-11030iUZS18#200606

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iUZS18#200312-200606

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS180,182200509-200802

main35151-30030iGRS183200312-200401

main35151-30040iUZS186200406-200606

35159GASKET, BRAKE DRUM

main35159-60010×3iGRS18#200509-200802

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS180,182200509-200802

main35168-60010iGRS18#200312-200509

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iGRS180,182,184; GRS181,183200509-200802

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

29 parts on this diagram · 4 diagrams in section
