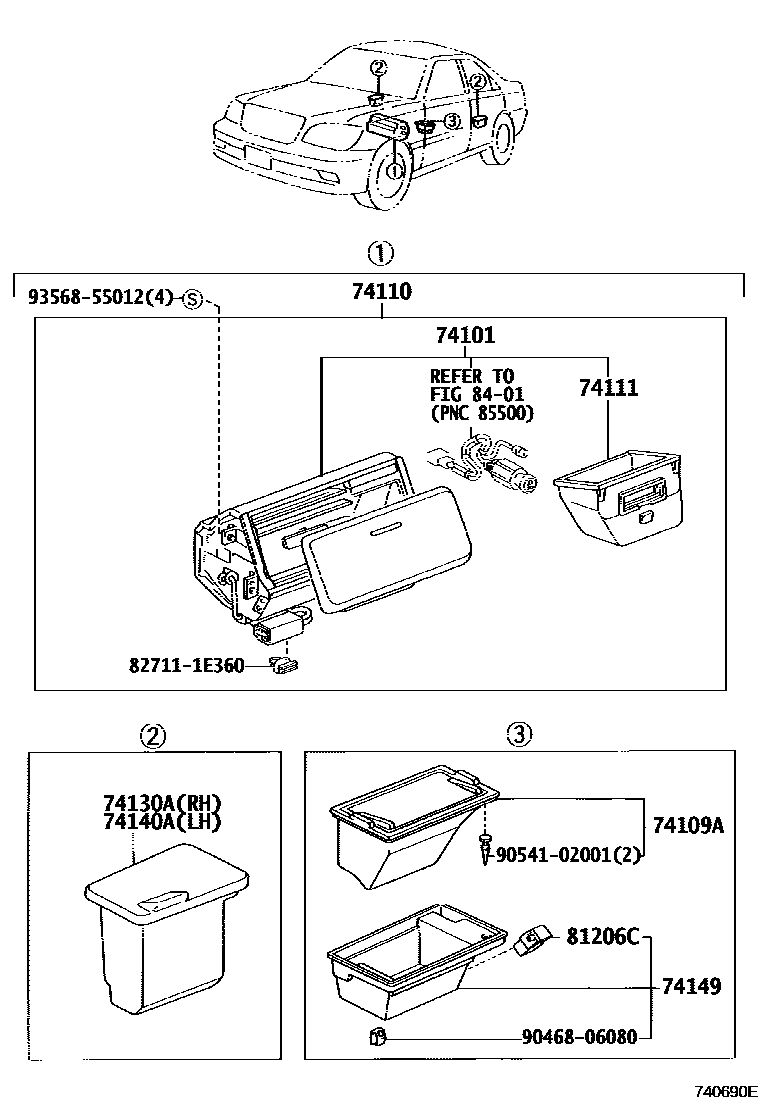

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-30120iGS171,JKS175,JZS17#,UZS17#200108

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-30100iJZS171,173,175..WG199912-200108

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-30280-A0iGS171,JZS17#,UZS17#199909-200108

IVORY,TRIM0#

main74110-30280-B0iJZS171..WG..TWT;GS171,JZS17#,UZS17#..A,ATHE,C,ROY,ROYEX,ROYG199909-200108

MEDIUM CHARCOAL,TRIM10,11,13

main74110-30280-B1iJZS175..SED..ATHG;JZS171,173..ATH,ATHE,ATHV;JZS171,175..WG..(ATHG,ROY)199909-200108

DARK CHARCOAL,TRIM12,14

main74110-30320-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main74110-30320-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

MEDIUM CHARCOAL,TRIM1#

main74110-30320-B1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

DARK CHARCOAL,TRIM2#

74111BOX, FRONT ASH RECEPTACLE

main74111-30170iGS171,JZS17#,UZS17#199909-200108

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-30300-A0iGS171,JKS175,JZS171,173,175,179..SED200108-200312

IVORY,TRIM0#

main74130-30300-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MEDIUM CHARCOAL,TRIM1#

main74130-30300-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

DARK CHARCOAL,TRIM2#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-30160-A0iGS171,JKS175,JZS171,173,175,179..SED200108-200312

IVORY,TRIM0#

main74140-30160-B0iGS171,JZS17#,UZS17#..SED..(A,C,ROY,ROYEX,ROYG)199909-200108

MEDIUM CHARCOAL,TRIM1#

main74140-30160-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

DARK CHARCOAL,TRIM1#

74149SUPPORT, REAR ASH RECEPTACLE

main74149-30040iJZS171,173,175..WG199912-200108

81206CLAMP SUB-ASSY, CONSOLE BOX

main81206-30020iJZS171,173,175..WG199912-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9046806080

main90468-06080

9054102001

main90541-02001

9356855012

main93568-55012

13 parts on this diagram · 1 diagram in section
