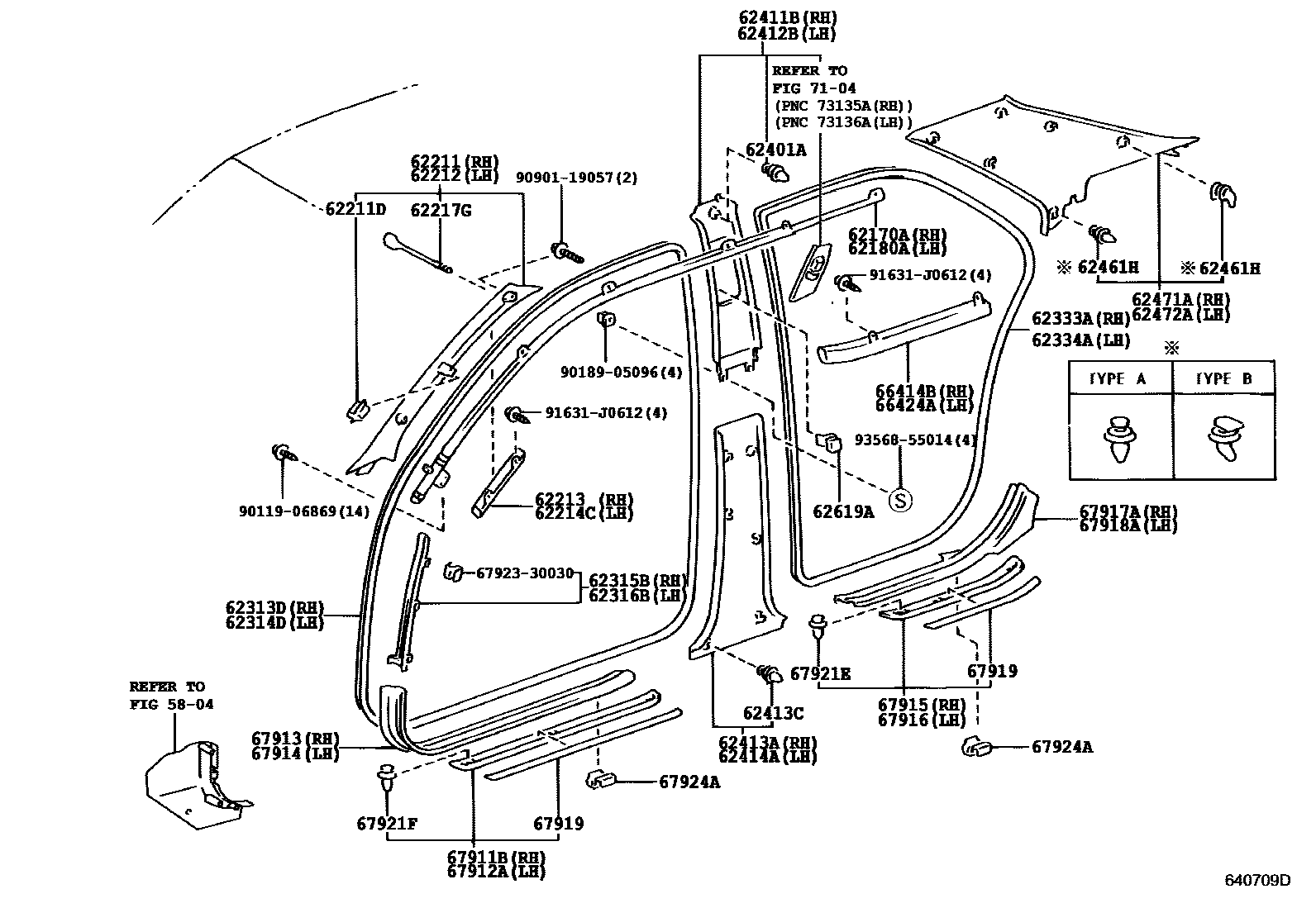

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804MAT & CARPET

→ Go to FIG 58-04

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30030iGS171,JKS175,JZS171,173,175,179200108

main62170-30040iJZS177,UZS17#199909-200108

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30030iGS171,JZS171,173,175,179199909-200108

main62180-30040iJZS177,UZS17#199909-200108

62211GARNISH, FRONT PILLAR, RH

main62211-30360-A0iGS171,JKS175,JZS171,173,175,179200108-200706

main62211-30360-B0iGS171,JZS171,173,175,179199909-200108

main62211-30370-A0iJZS175..SED..(ATHG,ROY);GS171,JKS175,JZS171,173,179200108-200706

IVORY,TRIM0#

main62211-30370-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX; JZS175..WG200108-200312

MEDIUM CHACOAL,TRIM1#; MEDIUM CHACOAL,TRIM2#

main62211-30380-A0iJZS177,UZS17#200108-200406

main62211-30380-B0iJZS177,UZS17#199909-200108

main62211-30390-A0iJZS177..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main62211-30390-B0iJZS177200108-200304

MEDIUM CHARCOAL,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-09204×4iJZS171..WG..TWT;GS171,JKS175,JZS179;JZS171,173,175..SED..(ATH,ATHG,ATHV,ROY,ROYEX); JZS175,UZS17#..A,C,ROYG; JZS175..WG200108-200312

62212GARNISH, FRONT PILLAR, LH

main62212-30370-A0iGS171,JKS175,JZS171,173,175,179200108-200706

main62212-30370-B0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main62212-30380-A0iJZS175..SED..(ATHG,ROY);GS171,JKS175,JZS171,173,179200108-200706

IVORY,TRIM0#

main62212-30380-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX; JZS175..WG200108-200312

MEDIUM CHACOAL,TRIM1#; MEDIUM CHACOAL,TRIM2#

main62212-30390-A0iJZS177,UZS17#200108-200406

main62212-30390-B0iJZS177,UZS17#200108-200406

main62212-30400-A0iJZS177199909-200108

IVORY,TRIM0#

main62212-30400-B0iJZS177199909-200108

MEDIUM CHARCOAL,TRIM1#

62213PAD, FRONT PILLAR GARNISH

main62213-30110iGS171,JKS175,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX200108

62214CPAD, FRONT PILLAR GARNISH, LH

main62214-30070iGS171,JZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYEX199909-200108

62217GCLIP, FRONT PILLAR GARNISH

main62217-30030×2iGS171,JZS17#,UZS17#199909-200108

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30230-A0iGS171,JKS175,JZS171,173,175,179200108-200706

IVORY,TRIM0#

main62313-30230-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

MEDIUM CHACOAL,TRIM1#

main62313-30230-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

main62313-30230-C1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main62313-30240-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main62313-30240-B0iJZS177,UZS17#200108-200406

MEDIUM CHARCOAL,TRIM1#

main62313-30240-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30150-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main62314-30150-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MEDIUM CHACOAL,TRIM1#

main62314-30150-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

main62314-30150-C1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main62314-30160-A0iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main62314-30160-B0iJZS177,UZS17#200108-200406

MEDIUM CHARCOAL,TRIM1#

main62314-30160-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-30080-A0iJZS177,UZS17#200108-200406

IVORY,TRIM0#

main62315-30080-B0iJZS177,UZS17#200108-200406

MD.CHARCOAL,TRIM1#

main62315-30080-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-30070-A0iJZS177,UZS17#200108-200406

IVORY,TRIM0#

main62316-30070-B0iJZS177,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

main62316-30070-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

62333ATRIM, REAR DOOR OPENING, RH

main62333-30180-A0iGS171,JZS171,173,175,179..SED199909-200108

IVORY,TRIM0#

main62333-30180-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MEDIUM CHACOAL,TRIM1#

main62333-30180-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

DARK CHARCOAL,TRIM1#

main62333-30180-C1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

BLACK,TRIM2#

main62333-30190-A0iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main62333-30190-B0iJZS177,UZS17#200108-200406

MEDIUM CHARCOAL,TRIM1#

main62333-30190-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main62333-31020-A0iGS171,JZS171,173,175..WG200108-200706

IVORY,TRIM0#

main62333-31020-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHACOAL,TRIM1#

main62333-31020-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

main62333-31020-C1iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

62334ATRIM, REAR DOOR OPENING, LH

main62334-30120-A0iGS171,JZS171,173,175,179..SED199909-200108

IVORY,TRIM0#

main62334-30120-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MEDIUM CHACOAL,TRIM1#

main62334-30120-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

DARK CHARCOAL,TRIM1#

main62334-30120-C1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

BLACK,TRIM2#

main62334-30130-A0iJZS177,UZS17#200108-200406

IVORY,TRIM0#

main62334-30130-B0iJZS177,UZS17#200108-200406

MEDIUM CHARCOAL,TRIM1#

main62334-30130-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main62334-31020-A0iGS171,JZS171,173,175..WG200108-200706

IVORY,TRIM0#

main62334-31020-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHACOAL,TRIM1#

main62334-31020-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

main62334-31020-C1iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2iGS171,JZS17#,UZS17#199909-200108

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30340-A0iJZS175..SED..(ATHG,ROY);GS171,JKS175,JZS171,173,179200108-200706

IVORY,TRIM0#

main62411-30340-B0iJZS175..SED..ATHG;GS171,JZS171,173..ATH,ATHE,ATHV200108-200706

MEDIUM CHACOAL,TRIM2#

main62411-30350-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main62411-30350-B0iJZS177200108-200304

MEDIUM CHARCOAL,TRIM1#

main62411-30360-A0iGS171,JKS175,JZS171,173,175,179200108-200706

main62411-30360-B0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main62411-30370-A0iJZS177,UZS17#200108-200406

main62411-30370-B0iJZS177,UZS17#200108-200406

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30340-A0iJZS175..WG200108-200312

IVORY,TRIM0#

main62412-30340-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX; JZS175..WG200108-200312

MEDIUM CHACOAL,TRIM1#; MEDIUM CHACOAL,TRIM2#

main62412-30350-A0iJZS177199909-200108

IVORY,TRIM0#

main62412-30350-B0iJZS177199909-200108

MEDIUM CHARCOAL,TRIM1#

main62412-30360-A0iGS171,JZS171,173,175,179199909-200108

main62412-30360-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main62412-30370-A0iJZS177,UZS17#200108-200406

main62412-30370-B0iJZS177,UZS17#199909-200108

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30180-A0iGS171,JKS175,JZS17#,UZS17#200108-200706

IVORY,TRIM0#

main62413-30180-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main62413-30180-B1iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

MD.CHARCOAL,TRIM1#

main62413-30180-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×12iGS171,JKS175,JZS17#,UZS17#200108

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30110-A0iGS171,JKS175,JZS17#,UZS17#200108-200706

IVORY,TRIM0#

main62414-30110-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main62414-30110-B1iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

MD.CHARCOAL,TRIM1#

main62414-30110-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-08186×2iJZS171,173,175..WG199912-200108

main90467-08186-C0×2iGS171,JZS171,173,175..WG200108

BLACK,TRIM0#,2#

main90467-09212×4iGS171,JZS17#,UZS17#..SED199909-200108

main90467-10161×8iGS171,JZS17#,UZS17#..SED199909-200108

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30420-A0iGS171,JKS175,JZS171,173,175,179..SED200108-200312

IVORY,TRIM0#

main62471-30420-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

MEDIUM CHACOAL,TRIM1#; MEDIUM CHACOAL,TRIM2#

main62471-30430-A0iJZS177,UZS17#200108-200406

IVORY,TRIM0#

main62471-30430-B0iJZS177,UZS17#200108-200406

MEDIUM CHARCOAL,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30390-A0iGS171,JZS171,173,175,179..SED199909-200108

IVORY,TRIM0#

main62472-30390-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

MEDIUM CHACOAL,TRIM1#; MEDIUM CHACOAL,TRIM2#

main62472-30400-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main62472-30400-B0iJZS177,UZS17#199909-200108

MEDIUM CHARCOAL,TRIM1#

62619APLATE, SIDE TRIM SET

main62619-30020×6iGS171,JKS175,JZS17#,UZS17#200108

66414BSPACER, SIDE RAIL, REAR RH

main66414-30030iGS171,JZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYEX199909-200108

66424ASPACER, SIDE RAIL, REAR LH

main66424-30030iGS171,JZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYEX199909-200108

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30120iGS171,JKS175,JZS171,173,175,179200108

main67911-30121iJKS175,JZS171,175,179..ROY200212-200312

PREMIUM *(R)

main67911-30130iJZS177,UZS17#200108-200406

main67911-30131iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A)

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30130iGS171,JKS175,JZS171,173,175,179200108

main67912-30131iJZS171,175,179..ROY200112-200212

main67912-30140iJZS177,UZS17#199909-200108

main67912-30141iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30230-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main67913-30230-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main67913-30230-B1iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MD.CHARCOAL,TRIM1#

main67913-30230-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main67913-30240-A0iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main67913-30240-B0iJZS177,UZS17#200108-200406

MD.CHARCOAL,TRIM1#

main67913-30240-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30230-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main67914-30230-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main67914-30230-B1iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

MD.CHARCOAL,TRIM1#

main67914-30230-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main67914-30240-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main67914-30240-B0iJZS177,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

main67914-30240-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30110iGS171,JKS175,JZS171,173,175,179200108

main67915-30120iJZS177,UZS17#200108-200406

main67915-30121iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A)

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30110iGS171,JKS175,JZS171,173,175,179200108

main67916-30120iJZS177,UZS17#199909-200108

main67916-30121iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A)

67917APLATE, REAR DOOR SCUFF, RH

main67917-30180-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main67917-30180-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main67917-30180-B1iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

MD.CHARCOAL,TRIM1#

main67917-30180-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main67917-30190-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main67917-30190-B0iJZS177,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

main67917-30190-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

67918APLATE, REAR DOOR SCUFF, LH

main67918-30160-A0iGS171,JKS175,JZS171,173,175,179200108-200706

IVORY,TRIM0#

main67918-30160-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main67918-30160-B1iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

MD.CHARCOAL,TRIM1#

main67918-30160-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main67918-30170-A0iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main67918-30170-B0iJZS177,UZS17#200108-200406

MD.CHARCOAL,TRIM1#

main67918-30170-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

67919ORNAMENT, DOOR SCUFF

main67927-30040iGS171,JZS171,173,175,179199909-200108

main67927-30041iJKS175,JZS171,175,179..ROY200212-200312

main67927-30050iJZS177,UZS17#200108-200406

main67927-30051iJZS177,UZS171,173..C200202-200207

main67928-30040iGS171,JZS171,173,175,179199909-200108

main67928-30041iJKS175,JZS171,175,179..ROY200212-200312

main67928-30050iJZS177,UZS17#199909-200108

main67928-30051iJZS177,UZS171,173..C200202-200207

main67943-30040iGS171,JZS171,173,175,179199909-200108

main67943-30050iJZS177,UZS17#199909-200108

main67943-30051iJZS177,UZS171,173..C200202-200207

main67944-30040iGS171,JKS175,JZS171,173,175,179200108

main67944-30050iJZS177,UZS17#200108-200406

main67944-30051iJZS177,UZS171,173..C200202-200207

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-95500×6iGS171,JZS17#,UZS17#199909-200108

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-95500×6iGS171,JZS17#,UZS17#199909-200108

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-30060×14iGS171,JZS17#,UZS17#199909-200108

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6792330030CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30030

9011906869

main90119-06869

9018905096

main90189-05096

9090119057

main90901-19057

91631J0612

main91631-J0612

9356855014

main93568-55014

46 parts on this diagram · 2 diagrams in section
