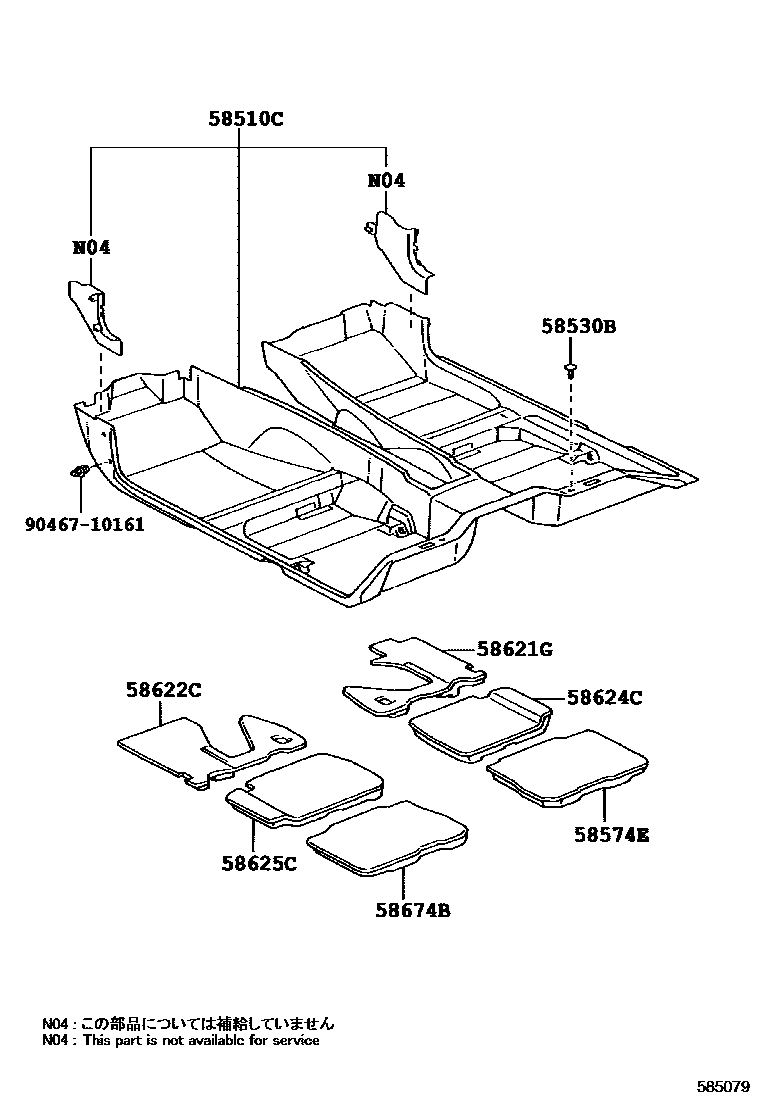

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-3K400-A0iGS171,JZS171..ROYEX; JZS171,175..ATH,ATHE,ATHG,ATHV,ROY,ROYG199909-200108

main58510-3K400-B0iGS171,JZS171..ROYEX; JZS171,175..ROY,ROYG199909-200108

main58510-3K400-B1iJZS171,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

main58510-3K400-C0iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main58510-3K410-A0iJZS171..D4;GS171,JKS175..ATHE,ROY; JZS175;JZS171..TWT200108-200706

main58510-3K410-B0iGS171..ROYEX; JKS175,JZS171..ROY,ROYEX; JZS175..ROY,ROYG200108-200312

main58510-3K410-B1iJZS171,175..ATH,ATHE,ATHG,ATHV199909-200108

main58510-3K410-C0iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV200108-200706

main58510-3K420-A0iJZS171..ROYEX;GS171,JKS175..SED200108-200312

main58510-3K420-B0iGS171,JZS171..ROYEX199909-200108

MEDIUM CHARCOAL,TRIM1#

main58510-3K430-A0iGS171..ROYEX; JKS175;JZS171..ROYEX200108-200312

main58510-3K430-B0iGS171,JZS171..ROYEX199909-200108

main58510-3K440-A0iJZS173,179..ATH,ROY; JZS173..ROYEX199909-200108

main58510-3K440-B0iJZS173..ROYEX; JZS179200108-200312

main58510-3K440-B1iJZS173..ATH199909-200108

DARK CHARCOAL,TRIM1#

main58510-3K440-C0iJZS173..ATH200108-200706

BLACK,TRIM2#

main58510-3K450-A0iJZS173,179..ATH,ROY; JZS173..ROYEX199909-200108

main58510-3K450-B0iJZS173..ROYEX; JZS179199909-200108

main58510-3K450-B1iJZS173..ATH199909-200108

main58510-3K450-C0iJZS173..ATH200108-200706

main58510-3K460-A0iJZS173..ROYEX200108-200312

IVORY,TRIM0#

main58510-3K460-B0iJZS173..ROYEX199909-200108

MEDIUM CHARCOAL,TRIM1#

main58510-3K470-A0iJZS173..ROYEX200108-200312

main58510-3K470-B0iJZS173..ROYEX199909-200108

main58510-3K480-A0iJZS177,UZS171,175199909-200108

IVORY,TRIM0#

main58510-3K480-B0iJZS177,UZS171,175200108-200406

MEDIUM CHARCOAL,TRIM1#

main58510-3K480-C0iJZS177,UZS171..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main58510-3K490-A0iJZS177,UZS171..C200202-200207

main58510-3K490-B0iJZS177,UZS171,175199909-200108

main58510-3K490-C0iJZS177,UZS171..C200202-200207

main58510-3K500-A0iUZS173199909-200108

IVORY,TRIM0#

main58510-3K500-B0iUZS173199909-200108

MEDIUM CHARCOAL,TRIM1#

main58510-3K500-C0iUZS173200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main58510-3K510-A0iUZS173199909-200108

main58510-3K510-B0iUZS173199909-200108

main58510-3K510-C0iUZS173200202-200207

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iJZS177,UZS17#200108-200203

BLACK,TRIM0#,1#

main90467-07049-A0×2iJZS177,UZS17#200203-200406

IVORY,TRIM0#,1#

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30010iGS171,JKS175,JZS171,173,175,179200108

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30140iGS171,JKS175,JZS171,173,175,179200108

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30120iGS171,JZS171,175199909-200108

main58622-30130iJZS173,179199909-200108

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30110iGS171,JKS175,JZS171,175200108

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30060iGS171,JZS171,173,175,179199909-200108

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30010iGS171,JZS171,173,175,179199909-200108

9046710161

main90467-10161

9 parts on this diagram · 1 diagram in section
