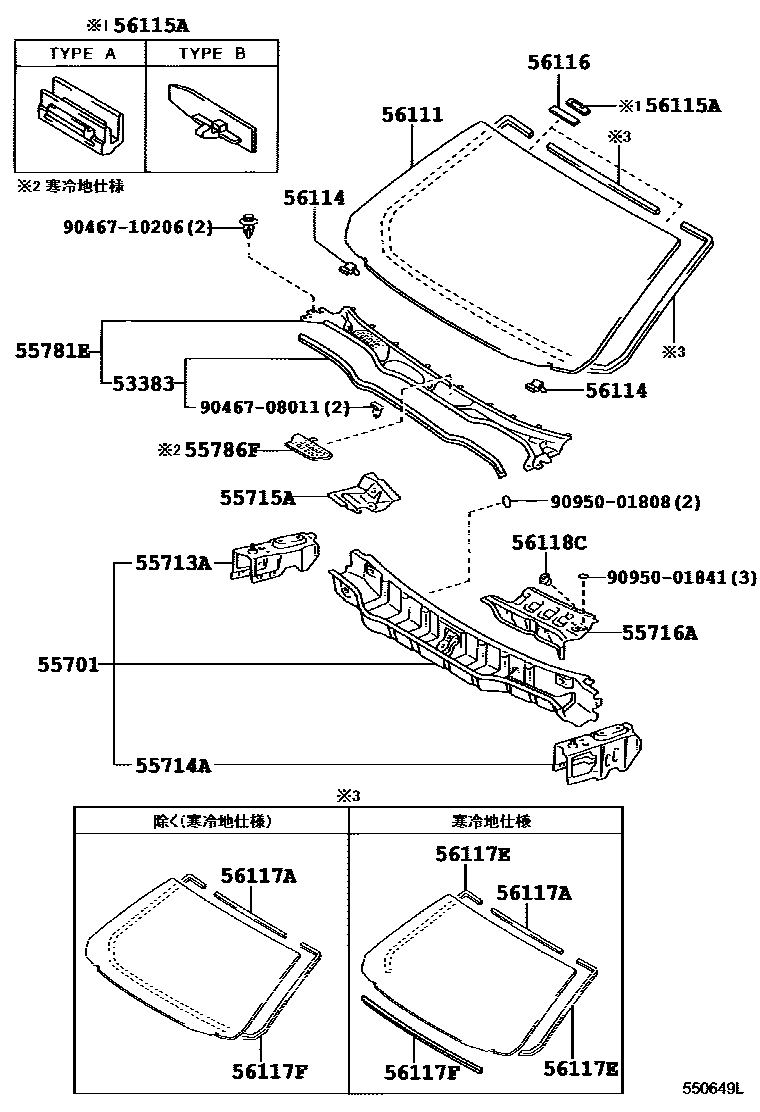

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-30160iGS171,JZS171,173,175,179199909-200108

main53383-30161iGS171,JKS175,JZS171,173,175,179200301

main53383-30180iJZS177,UZS17#200108-200406

55701PANEL SUB-ASSY, COWL

main55700-3A110iGS171,JKS175,JZS171,173,175,179200108-200706

main55700-3A120iGS171,JKS175,JZS171,173,175,179200108-200706

main55700-3A130iJZS177,UZS17#199909-200103

main55700-3A131iJZS177,UZS17#200108-200406

main55700-3A140iJZS177,UZS17#199909-200103

main55700-3A141iJZS177,UZS17#200103-200108

55713APANEL, COWL TOP SIDE, RH

main55705-30050iJZS177,UZS17#199909-200103

main55705-30051iJZS177,UZS17#200103-200108

main55713-30906iGS171,JZS171,173,175,179199909-200108

55714APANEL, COWL TOP SIDE, LH

main55706-30060iJZS177,UZS17#199909-200108

main55714-30906iGS171,JKS175,JZS171,173,175,179200108

55715ABRACE, COWL TOP TO APRON, RH

main55715-30090iGS171,JKS175,JZS171,173,175,179200108

main55715-30100iJZS177,UZS17#199909-200108

55716ABRACE, COWL TOP TO APRON, LH

main55716-30110iGS171,JKS175,JZS171,173,175,179200108

main55716-30120iJZS177,UZS17#200108-200406

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30050iGS171,JZS171,173,175,179199909-200108

main55708-30060iGS171,JZS171,173,175,179199909-200106

main55708-30070iJZS177,UZS17#199909-200108

main55708-30080iJZS177,UZS17#199909-200108

55786FNET, COWL TOP VENTILATOR LOUVER

main55786-30050iGS171,JZS171,173,175,179200106-200108

56111GLASS, WINDSHIELD

main56101-30680iGS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG200005-200103

main56101-30690iGS171,JZS171,173..ATH,ATHE,ROYEX199909-200108

main56101-30710iJZS177,UZS17#199909-200108

main56101-30780iJZS173..ATH200208-200312

main56101-30790iGS171,JZS171,173..ATH,ATHE,ROYEX200108-200312

main56101-30800iJZS177,UZS17#200108-200406

main56101-30810iJKS175,JZS171,175,179..ROY200212-200312

main56111-3A440iGS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG199909-200108

main56111-3A450iGS171,JZS171,173..ATH,ATHE,ROYEX199909-200108

main56111-3A470iJZS177,UZS17#199909-200108

main56111-3A530iJZS171..ATH200208-200312

main56111-3A540iGS171,JZS171,173..ATH,ATHE,ROYEX200108-200312

main56111-3A550iJZS177,UZS17#200108-200406

main56111-3A560iJKS175200108-200312

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iGS171,JZS17#,UZS17#199909-200108

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iGS171,JZS171,173,175,179; JZS177,UZS17#199909-200108

main56115-33040×2iJZS171,173,175,179199909-199910

56116SPACER, WINDSHIELD GLASS

main56116-22050×2iGS171,JZS17#,UZS17#199909-200108

56117ADAM, WINDOW GLASS ADHESIVE

main64813-52010iGS171,JZS17#,UZS17#199909-200108

56117EDAM, WINDOW GLASS ADHESIVE

main56117-30300×2iGS171,JZS17#,UZS17#199909-200108

56117FDAM, WINDOW GLASS ADHESIVE

main56117-30320iGS171,JZS17#,UZS17#199909-200108

main56117-44030iGS171,JZS17#,UZS17#199909-200108

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iGS171,JZS171,173,175,179199909-200108

9046708011

main90467-08011

9046710206

main90467-10206

9095001808

main90950-01808

9095001841

main90950-01841

20 parts on this diagram · 2 diagrams in section
