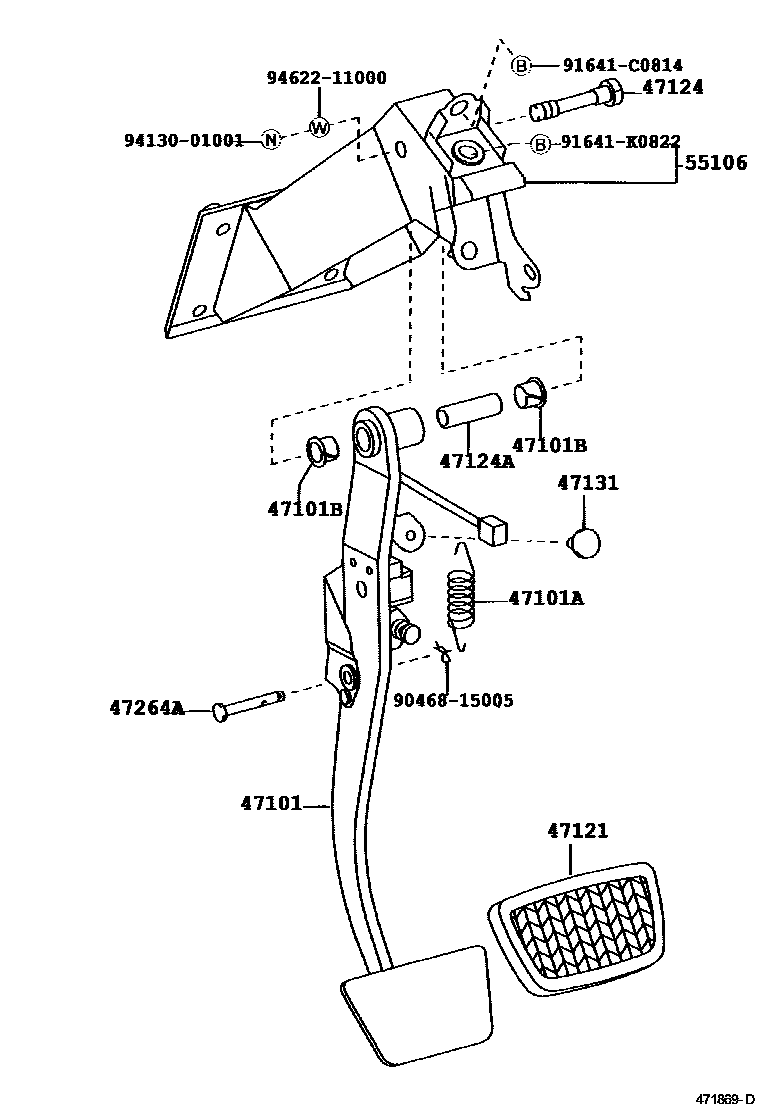

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-30470iJZS177,UZS17#199909-200108

main47101-30471iJZS177,UZS17#200108-200405

main47106-30010iGS171,JZS171,173,175,179199909-200108

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14048iGS171,JKS175,JZS171,173,175,179200108

main90507-16026iJZS177,UZS17#200108-200405

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGS171,JZS17#,UZS17#199909-200108

47121PAD, BRAKE PEDAL

main47121-50010iGS171,JZS17#,UZS17#199909-200009

main47121-50020iGS171,JZS17#,UZS17#200010-200108

47124SHAFT, BRAKE PEDAL

main90101-10015iGS171,JKS175,JZS171,173,175,179200108

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJZS177,UZS17#200108-200405

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGS171,JZS17#,UZS17#199909-200108

47264APIN(FOR PUSH ROD)

main90249-06180iGS171,JKS175,JZS171,173,175,179200108

main90249-10199iJZS177,UZS17#200108-200405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30330iJZS177,UZS17#199909-199910

main55106-30331iJZS177,UZS17#199910-200009

main55106-30332iJZS177,UZS17#200009-200108

main55106-30340iJZS171,173,175,179199909-199910

main55106-30341iGS171,JZS171,173,175,179199910-200006

main55106-30342iGS171,JZS171,173,175,179200006-200108

9046815005

main90468-15005

91641C0814

main91641-C0814

91641K0822

main91641-K0822

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 2 diagrams in section
