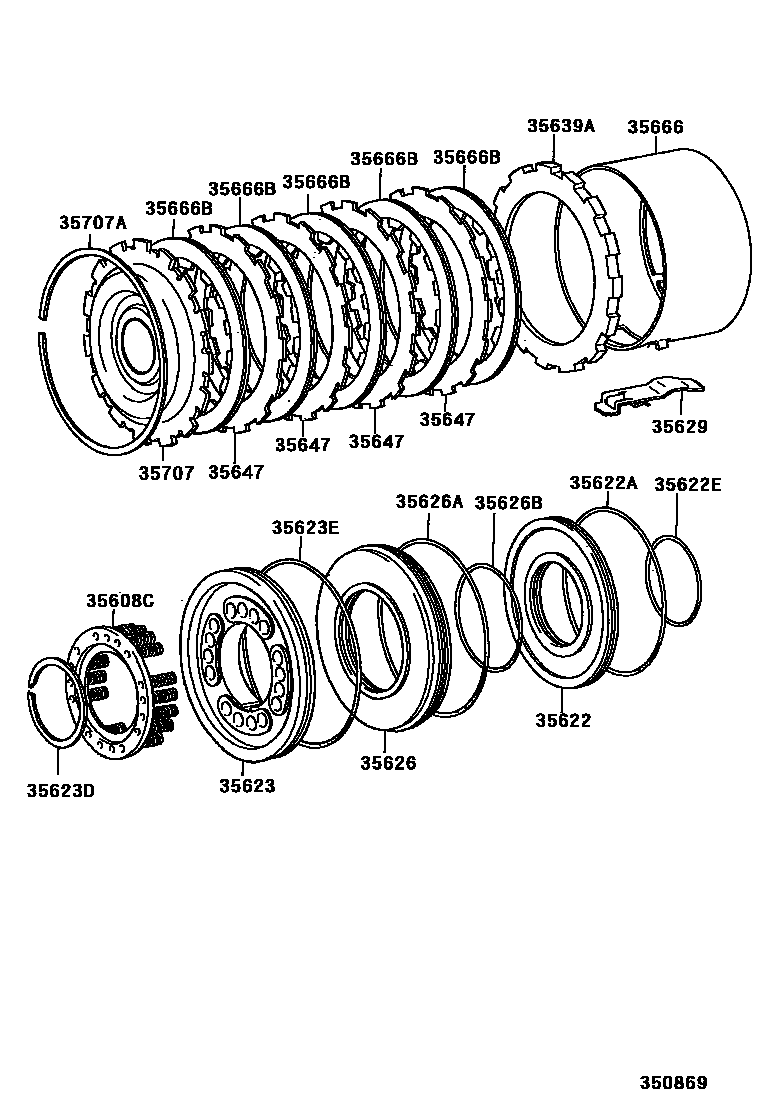

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A42DE,A42DL,A43D 0002 1A340E,A340H,A341E,A341H,A350E0004 1A650E

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iGS151..4FC199508

35622PISTON, BRAKE, NO.2

main35622-22010iGS151..4FC199508

main35622-30010iJZS15#,LS151,UZS15#199508-199707

main35622-30020iJZS155,UZS151,157..5FC199707-199909

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iGS151..4FC199808

main90301-99193iGS151..4FC199508-199808

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-56007iGS151..4FC199808

main90301-57188iJZS15#,LS151,UZS15#199508-199707

main90301-67006iJZS155,UZS151,157..5FC199707-199909

main90301-99085iJZS155,UZS151,157..5FC199707-199909

main90301-99193iJZS15#,LS151,UZS155..4FC199707

35623PISTON, BRAKE, NO.3

main35623-22010iGS151..4FC199508

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iGS151..4FC199508

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99110iGS151..4FC199808

main90301-99192iGS151..4FC199508-199808

35626SLEEVE, BRAKE REACTION

main35626-22010iGS151..4FC199508-199808

main35626-30020iJZS15#,LS151,UZS15#199508-199707

main35626-30040iJZS155,UZS151,157..5FC199707-199909

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99109iGS151..4FC199808

main90301-99200iGS151..4FC199508-199808

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iGS151..4FC199808

main90301-68191iGS151,JZS15#,LS151,UZS15#..ATM199508-199707

main90301-79003iJZS155,UZS151,157..5FC199707-199909

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iGS151..4FC199508-199808

main35629-22020iJZS155..ROYT199508-199707

main35629-50010iJZS155,UZS151,157..5FC199707-199909

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iGS151..4FC199508-199808

main35639-22020iGS151..4FC..HTWC199808

main35639-22030iGS151..4FC..HTWC199808

main35639-22040iGS151..4FC..HTWC199808

main35639-22050iGS151..4FC..HTWC199808

main35639-22060iGS151..4FC..HTWC199808

35647PLATE, CLUTCH, NO.2

main35647-22010×4iGS151..4FC199508-199808

35666TUBE, BRAKE APPLY

main35666-26010iGS151..LPGTE199512-200102

main35666-30010iGS151..4FC..HTWC199508-199808

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30060×5iGS151..4FC..HTWC199508-199808

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30020iGS151..4FC..HTWC199508-199808

main35707-30030iGS151..LPGTE199512-200102

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iGS151..4FC199508

17 parts on this diagram · 3 diagrams in section
