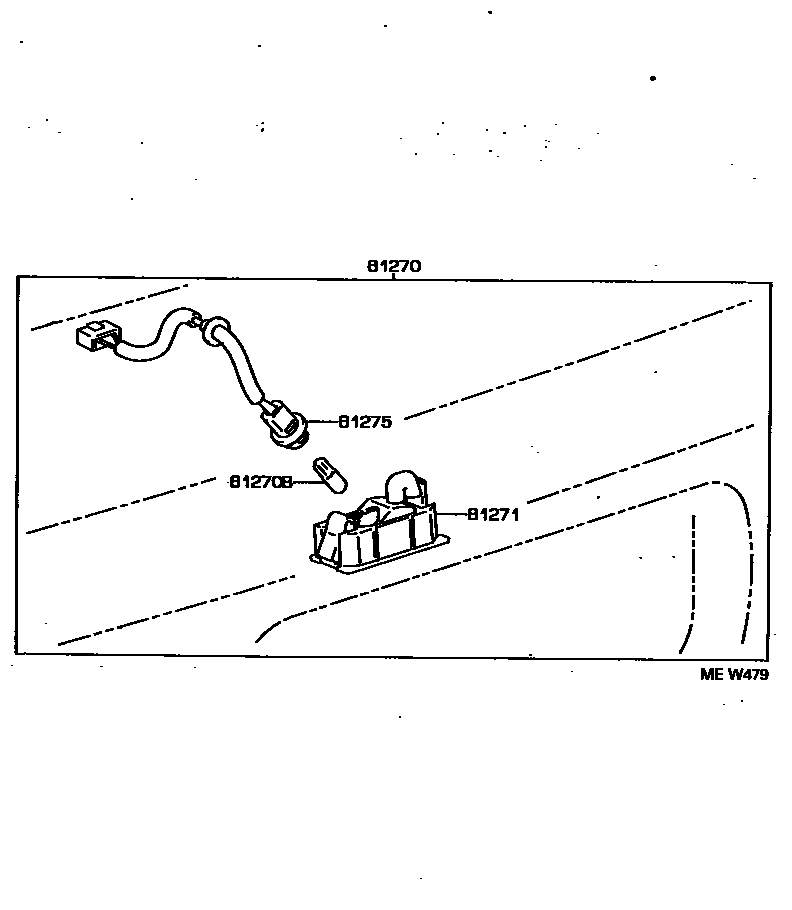

REAR LICENSE PLATE LAMP

0001 1 0002 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-30180iJZS147,149,UZS14#199110-199508

main81270-30190×2iJZS141,143,145,LS141199110-199304

main81270-30240×2iJZS141,143,145,LS141199304-199308

main81270-30250×2iGS141,JZS141,143,145,LS141199308-199508

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12010×2iGS141,JZS141,143,145,LS141199308-199508

main99132-12050×2iJZS14#,LS141,UZS14#199110-199308

81271LENS, LICENSE PLATE LAMP

main81271-18010×2iJZS141,143,145,LS141199110-199304

main81271-30180×2iJZS147,149,UZS14#199110-199508

main81271-30240×2iJZS141,143,145,LS141199304-199308

main81271-30250×2iGS141,JZS141,143,145,LS141199308-199508

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-30190×2iJZS141,143,145,LS141199110-199308

main81275-30250×2iGS141,JZS141,143,145,LS141199308-199508

4 parts on this diagram · 3 diagrams in section
