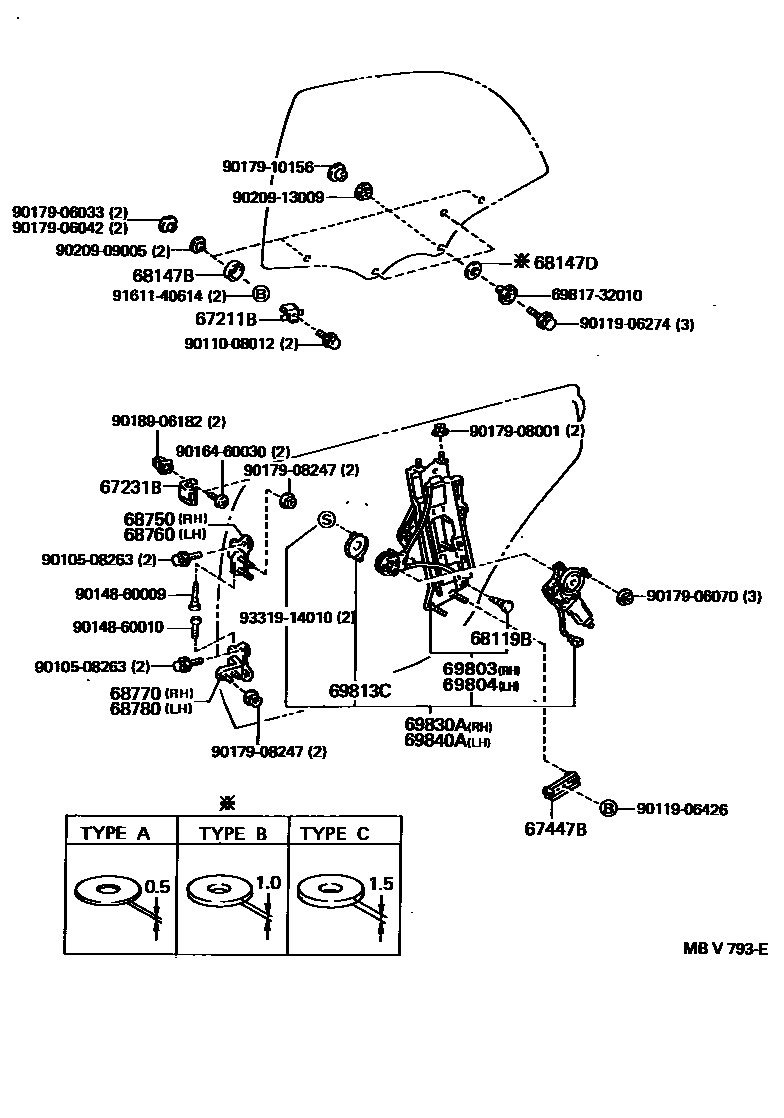

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-30070×4iGS141,JZS14#,LS141,UZS14#199110-199508

67231BSUPPORT, REAR DOOR TRIM

main67237-30020iJZS147,149,UZS14#199110-199508

main67237-30030iGS141,JZS141,143,145,LS141199110-199508

main67238-30010iJZS147,149,UZS14#199110-199508

main67238-30020iGS141,JZS141,143,145,LS141199110-199508

67447BPLATE, REAR DOOR WINDOW GUIDE, LOWER

main67447-30030×2iGS141,JZS14#,LS141,UZS14#199110-199508

68119BCUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2

main90905-41003×2iGS141,JZS14#,LS141,UZS14#199206-199508

68147BSTOP, REAR DOOR GLASS, UPPER

main68147-30020×4iGS141,JZS14#,LS141,UZS14#199110-199508

68147DWASHER, REAR DOOR GLASS STOP

main90202-10024iGS141,JZS14#,LS141,UZS14#199110-199508

main90202-10025iGS141,JZS14#,LS141,UZS14#199110-199508

main90202-10026iGS141,JZS14#,LS141,UZS14#199110-199508

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30080iJZS147,149,UZS14#199110-199508

main68750-30090iGS141,JZS141,143,145,LS141199110-199508

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30090iJZS147,149,UZS14#199110-199508

main68760-30100iGS141,JZS141,143,145,LS141199110-199508

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30060iJZS147,149,UZS14#199110-199508

main68770-30070iGS141,JZS141,143,145,LS141199110-199508

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30080iJZS147,149,UZS14#199110-199508

main68780-30090iGS141,JZS141,143,145,LS141199110-199508

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30200iJZS147,149,UZS14#199110-199508

main69803-30210iGS141,JZS141,143,145,LS141199110-199508

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30200iJZS147,149,UZS14#199110-199508

main69804-30210iGS141,JZS141,143,145,LS141199110-199508

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69811-32050×2iGS141,JZS14#,LS141,UZS14#199110-199508

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-30260iJZS147,149,UZS14#199110-199508

main69830-30270iGS141,JZS141,143,145,LS141199110-199508

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-30260iJZS147,149,UZS14#199110-199508

main69840-30270iGS141,JZS141,143,145,LS141199110-199508

6981732010PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-32010

9010508263

main90105-08263

9011008012

main90110-08012

9011906274

main90119-06274

9011906426

main90119-06426

9014860009

main90148-60009

9014860010

main90148-60010

9016460030

main90164-60030

9017906033

main90179-06033

9017906042

main90179-06042

9017906070

main90179-06070

9017908001

main90179-08001

9017908247

main90179-08247

9017910156

main90179-10156

9018906182

main90189-06182

9020909005

main90209-09005

9020913009

main90209-13009

9161140614

main91611-40614

9331914010

main93319-14010

34 parts on this diagram · 2 diagrams in section
