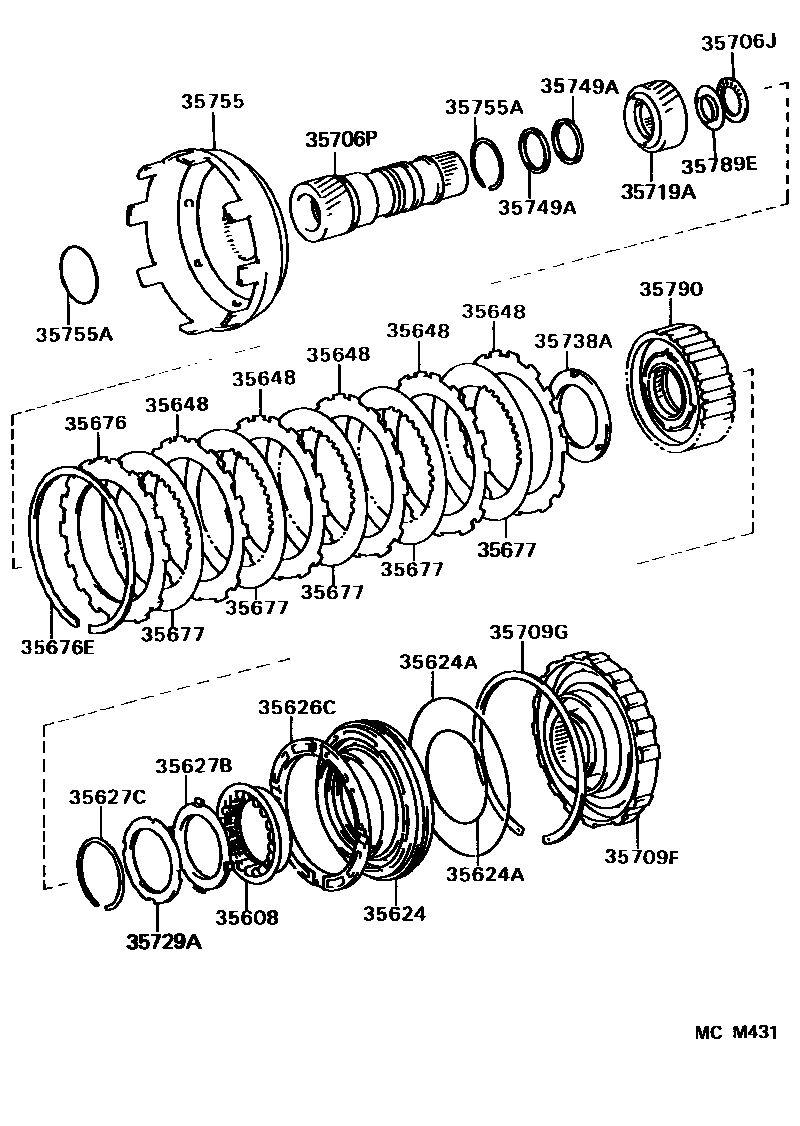

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340E,A341E,A341H 0002 1A350E 0003 1A42DL

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGS141199308-199508

main35608-22010iGS141199308-199508

main35608-30010iJZS141,LS141199110-199508

main35608-50010iJZS143,145,147,149,UZS14#199110-199508

35624PISTON, 2ND BRAKE

main35624-30010iJZS14#,LS141,UZS14#199110-199508

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iJZS14#,LS141,UZS14#199110-199508

main90301-99038iJZS14#,LS141,UZS14#199110-199508

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iJZS14#,LS141,UZS14#199110-199508

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iJZS14#,LS141,UZS14#199110-199508

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iJZS14#,LS141,UZS14#199110-199508

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iJZS143,145,147,149,UZS14#..4FC199110-199508

main35647-30030iJZS14#,LS141,UZS14#..4FC199110-199508

main35647-30050×3iJZS141,LS141199110-199508

main35647-30100×4iJZS143..ROYT199110-199308

main35647-30110iJZS143..ROYT199110-199308

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iJZS14#,LS141,UZS14#199110-199508

main35676-30120iJZS143..ROYT199110-199508

main35676-30130iJZS143..ROYT199110-199508

main35676-30140iJZS143..ROYT199110-199508

main35676-30150iJZS143..ROYT199110-199508

main35676-30160iJZS143..ROYT199110-199508

main35676-30170iJZS143..ROYT199110-199508

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iJZS14#,LS141,UZS14#199110-199508

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30020×4iJZS141,LS141199110-199406

main35667-30030×5iJZS143..ROYT199110-199308

main35667-50020×5iJZS143,145,147,149,UZS14#..4FC199110-199508

main35677-30020×4iJZS141199406-199508

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iGS141199308-199508

main90374-27005iLS141,UZS14#199110-199508

main90374-27009iJZS143..ROYT199110-199508

35706PGEAR SUB-ASSY, FRONT PLANETARY SUN

main35706-22011iGS141199308-199508

main35706-30061iJZS141,147,149199110-199305

main35706-30080iJZS143..ROYT199110-199308

main35706-50010iLS141,UZS143,145199305-199308

35709SUPPORT SUB-ASSY, CENTER

main35709-12011iGS141199308-199508

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iUZS143,145199210-199304

main35709-50010iJZS14#,LS141,UZS141199110-199304

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iJZS14#,LS141,UZS14#199110-199508

35719AGEAR, REAR PLANETARY SUN

main35719-50010iJZS143,145,147,149,LS141,UZS14#..4FC199308-199508

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iJZS14#,LS141,UZS14#199110-199508

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iJZS14#,LS141,UZS14#199110-199508

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iGS141199308-199508

main35749-30010×2iJZS14#,LS141,UZS14#199110-199508

35755DRUM, SUN GEAR INPUT

main35755-30020iJZS143..ROYT199110-199508

main35755-30040iJZS143,145,147,149,UZS143,145..4FC199308-199508

main35755-50010iJZS141,LS141,UZS141,147199308-199508

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-24026iJZS143..ROYT;JZS141,LS141,UZS143,145199308-199508

main90520-46002iJZS14#,LS141,UZS14#199110-199508

main90520-48007iJZS143,145,147,149199110-199405

main90520-49001iJZS141,LS141,UZS14#199110-199405

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30150iJZS14#,LS141..4FC199110-199508

main35789-30240iJZS143..ROYT199110-199508

35790CLUTCH ASSY, 1 WAY

main35790-30060iJZS14#,LS141,UZS14#199405-199508

main35790-50010iJZS14#,LS141,UZS14#199110-199405

main35791-30020iGS141199308-199508

23 parts on this diagram · 3 diagrams in section
