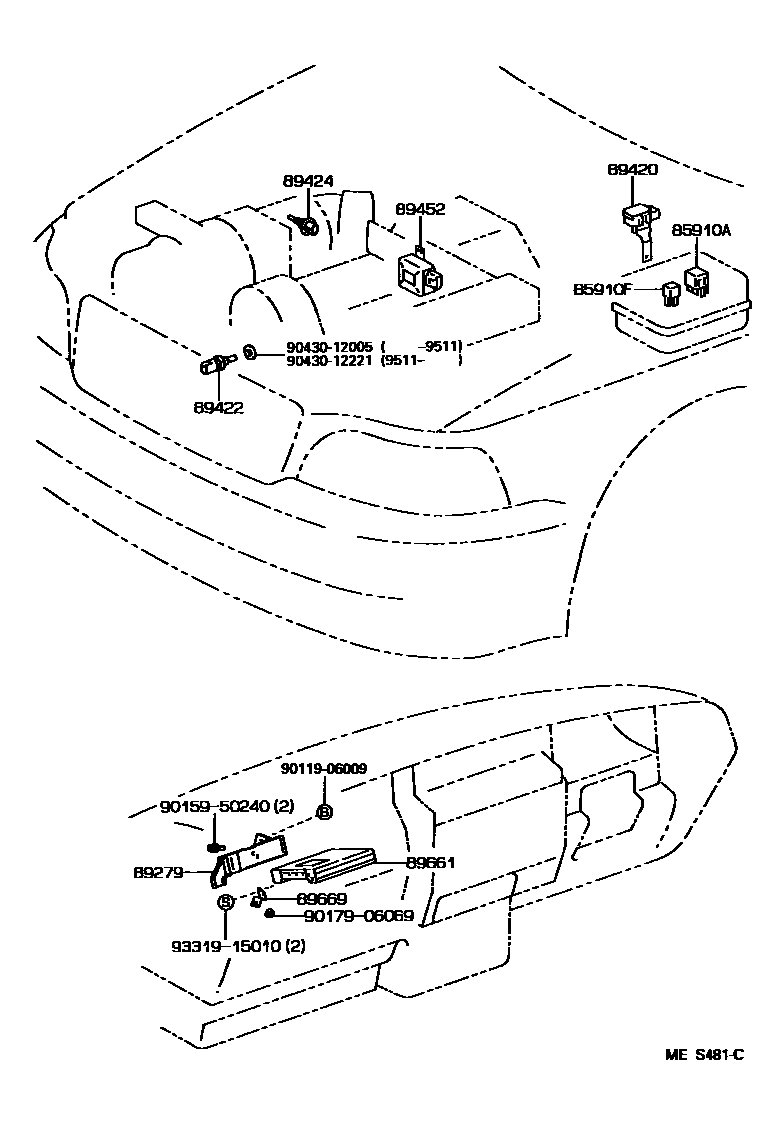

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iGS13#,JZS130,131..HTWC,TWC199110

main90987-03003iYS130199112-199512

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iGS13#,JZS130,131,135,YS130..HTWC,LPEFI,TWC; JZS133199210-199308

main90987-02010iJZS133199210-199308

89279COVER, ENGINE CONTROL COMPUTER

main89279-30030iGS13#199110-199112

89420SENSOR ASSY, VACUUM

main89420-30070iGS13#,JZS13#199110-199112

main89420-30100iGS13#,JZS130199512-199609

main89421-30100iJZS130199609

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGS13#,JZS13#199110-199112

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iJZS13#199110

main89424-24010iGS13#199110-199112

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iJZS130199609

main89452-22090iJZS13#199408-199609

main89452-30100iYS130199112-199308

main89452-30110iGS13#..HTWC199110

main89452-30130iYS130199308-199512

main89452-33010iJZS133,135199110-199408

89661COMPUTER, ENGINE CONTROL

main89661-30540iJZS133,135199110-199308

main89661-30580iGS13#..HTWC199110-199308

main89661-30590iYS130199112-199308

main89661-30620iJZS131199110-199308

main89661-30630iJZS130199110-199308

main89661-30710iGS13#..HTWC199308-199512

main89661-30780iJZS133,135199308-199512

main89661-30820iJZS130199308-199609

main89661-30830iJZS131199308-199512

main89661-30840iYS130199308-199512

main89661-3A200iGS13#199512

main89661-3A230iJZS130199609-199704

main89661-3A380iJZS130199704-199809

main89661-3A381iJZS130199809

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30020iGS13#199110-199112

main89669-30060iJZS133,135199110-199512

main89669-30070iJZS130,131199110-199704

main89669-30150iJZS130199704

9011906009

main90119-06009

9015950240

main90159-50240

9017906069

main90179-06069

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

15 parts on this diagram · 4 diagrams in section
