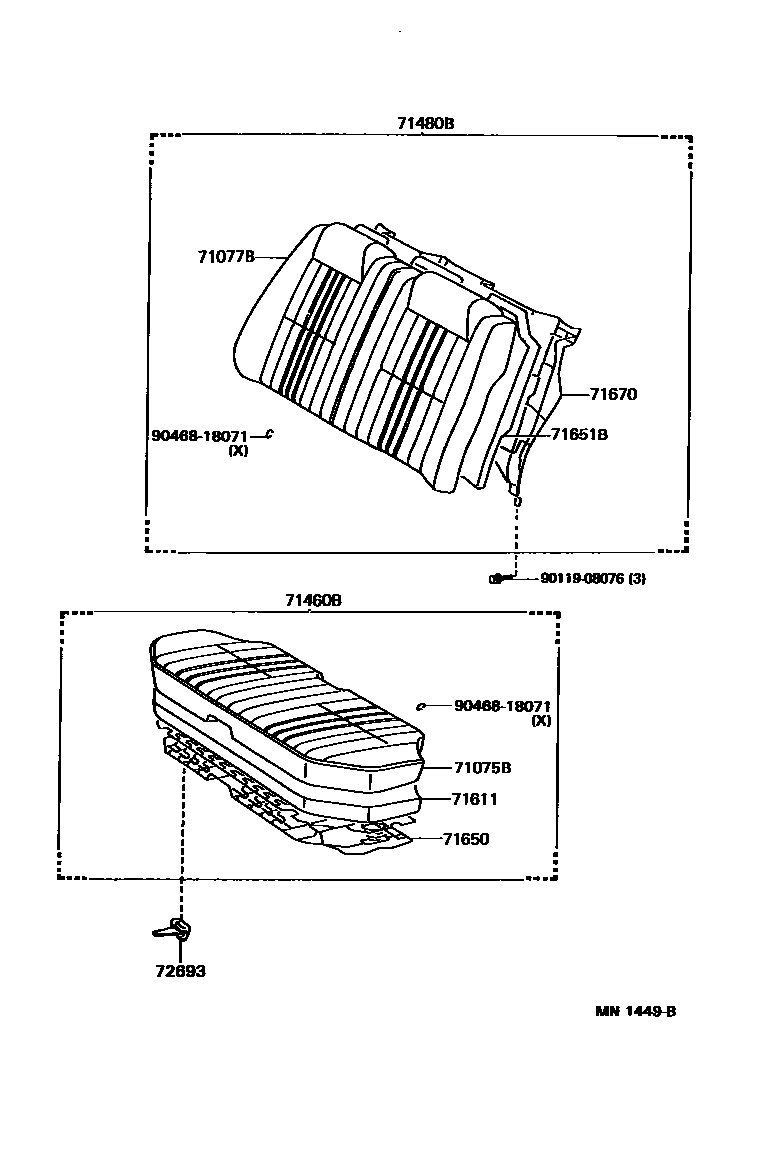

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30730-E0iGS130,131,JZS131,LS131..SALEX199110-199308

QUARTZ,TRIM4#

main71065-30730-J0iGS130,131,JZS131,LS131..SALEX199110-199308

DK.BLUE,TRIM8#

main71065-30731-E1iGS130,131,JZS131,LS131..SALEX199308-199512

QUARTZ,TRIM4#

main71065-30731-J1iGS130,131,JZS131,LS131..SALEX199308-199512

DK.BLUE,TRIM8#

main71065-30740-E0iGS130,131..4FC..SALEX199211-199303

main71065-30740-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main71065-30741-J0iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main71065-30750-J0iGS130,YS130..DLXA,STD199112-199512

DK.BLUE,TRIM8#

main71065-30760-E0iGS130..DLX199110-199308

QUARTZ,TRIM4#

main71065-30760-J0iGS130,YS130..DLX199110-199308

DK.BLUE,TRIM8#

main71065-30761-E0iGS130..DLX199308-199512

QUARTZ,TRIM4#

main71065-30761-J0iGS130,YS130..DLX199308-199512

DK.BLUE,TRIM8#

main71065-30770-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

QUARTZ,TRIM4#

main71065-30770-J0iGS130,LS130..SED..SDX199110-199308

DK.BLUE,TRIM8#

main71065-30771-E0iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main71065-30771-J0iGS130,LS130..SED..SDX199308-199512

DK.BLUE,TRIM8#

main71065-30780-J0iGS130..ATM..SDX..TWLPG199112-199308

main71065-30781-J0iGS130..ATM..SDX..TWLPG199308-199512

main71065-30790-J0iGS130..ATM..SDX..TWLPG199112-199308

main71065-30791-J1iGS130..ATM..SDX..TWLPG199308-199512

main71075-31070-E0iGS130..WG199110-199308

QUARTZ,TRIM4#

main71075-31070-J0iGS130..WG199110-199308

QUARTZ,TRIM8#

main71075-31071-E0iGS130..WG199308-199512

QUARTZ,TRIM4#

main71075-31071-J0iGS130..WG199308-199512

DK. BLUE,TRIM8#

main71075-31080-J0iGS136..SDX199110-199308

DK.BLUE,TRIM8#

main71075-31081-J0iGS136..SDX199308-199512

DK. BLUE,TRIM8#

main71075-31100-J0iGS136..STD199110-199308

DK.BLUE,TRIM8#

main71075-31110-J0iGS136,LS136..DLX199110-199512

DK.BLUE,TRIM8#

main71075-31130-J0iGS130..SDX199512

DK.BLUE,TRIM8#

main71075-31140-B0iGS130..SALEX199512

BLUE GRAY,TRIM1#

main71075-31140-E0iGS130..SALEX199512

QUARTZ,TRIM4#

main71075-31160-J0iGS136..DLX199512

DK.BLUE,TRIM8#

main71075-31170-J0iGS136..SDX199512

DK.BLUE,TRIM8#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-31040-E0iGS130..WG199110-199308

QUARTZ,TRIM4#

main71077-31040-J0iGS130..WG199110-199308

QUARTZ,TRIM8#

main71077-31041-E0iGS130..WG199308-199512

QUARTZ,TRIM4#

main71077-31041-J0iGS130..WG199308-199512

DK. BLUE,TRIM8#

main71077-31050-J0iGS136..SDX199110-199308

DK.BLUE,TRIM8#

main71077-31051-J0iGS136..SDX199308-199512

DK. BLUE,TRIM8#

main71077-31070-J0iGS130..SDX199512-199904

DK.BLUE,TRIM8#

main71077-31080-B0iGS130..SALEX199512-199904

BLUE GRAY,TRIM1#

main71077-31080-E0iGS130..SALEX199512-199904

QUARTZ,TRIM4#

main71077-31100-J0iGS136..DLX199512-199904

DK.BLUE,TRIM8#

main71077-31110-J0iGS136..SDX199512-199904

DK.BLUE,TRIM8#

main71077-3A830-E0iGS130,131..4FC..SALEX199211-199303

main71077-3A830-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main71077-3A831-J0iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main71077-3A840-J0iGS130,YS130..DLXA,STD199110-199203

DK.BLUE,TRIM8#

main71077-3A840-J1iGS130,YS130..DLXA,STD199203-199512

DK.BLUE,TRIM8#

main71077-3A850-E0iGS130..DLX199110-199203

QUARTZ,TRIM4#

main71077-3A850-E1iGS130..DLX199203-199308

QUARTZ,TRIM4#

main71077-3A850-J0iGS130,YS130..DLX199110-199203

DK.BLUE,TRIM8#

main71077-3A850-J1iGS130,YS130..DLX199203-199308

DK.BLUE,TRIM8#

main71077-3A851-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main71077-3A851-J1iGS130,YS130..DLX199308-199512

DK. BLUE,TRIM8#

main71077-3A860-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199203

QUARTZ,TRIM4#

main71077-3A860-E1iGS130,LS130..SED..SDX..(HTWC,TDEC)199203-199308

QUARTZ,TRIM4#

main71077-3A860-J0iGS130,LS130..SED..SDX199110-199203

DK.BLUE,TRIM8#

main71077-3A860-J2iGS130,LS130..SED..SDX199203-199308

DK.BLUE,TRIM8#

main71077-3A861-E1iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main71077-3A861-J2iGS130,LS130..SED..SDX199308-199512

DK. BLUE,TRIM8#

main71077-3A870-J0iGS130..ATM..SDX..TWLPG199112-199203

main71077-3A870-J1iGS130..ATM..SDX..TWLPG199203-199308

main71077-3A871-J2iGS130..ATM..SDX..TWLPG199308-199512

main71077-3A880-J0iGS130..ATM..SDX..TWLPG199112-199203

main71077-3A880-J1iGS130..ATM..SDX..TWLPG199203-199308

main71077-3A881-J1iGS130..ATM..SDX..TWLPG199308-199512

main71077-3A890-E0iGS130,131,JZS131,LS131..SALEX199110-199308

QUARTZ,TRIM4#

main71077-3A890-J0iGS130,131,JZS131,LS131..SALEX199110-199308

DK.BLUE,TRIM8#

main71077-3A891-E1iGS130,131,JZS131,LS131..SALEX199308-199512

QUARTZ,TRIM4#

main71077-3A891-J1iGS130,131,JZS131,LS131..SALEX199308-199512

DK. BLUE,TRIM8#

main71077-91752-J1iGS136..STD199110-199308

DK.BLUE,TRIM8#

main71077-91753-J0iGS136,LS136..(4FC,5F)..DLX199110-199512

DK.BLUE,TRIM8#

main71077-91754-J0iGS136..4H..DLX199110-199512

DK.BLUE,TRIM8#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-31070-E2iGS130..WG199110-199308

***,QUARTZ,TRIM4#

main71460-31070-J2iGS130..WG199110-199308

***,DK.BLUE,TRIM8#

main71460-31071-E3iGS130..WG199308-199512

***,QUARTZ,TRIM4#

main71460-31071-J3iGS130..WG199308-199512

***,DK. BLUE,TRIM8#

main71460-31080-J2iGS136,LS136..DLX199110-199308

***,DK.BLUE,TRIM8#

main71460-31080-J3iGS136,LS136..DLX199308-199512

***,DK.BLUE,TRIM8#

main71460-31090-J2iGS136..SDX199110-199308

***,DK.BLUE,TRIM8#

main71460-31091-J3iGS136..SDX199308-199512

***,DK. BLUE,TRIM8#

main71460-31100-J0iGS136..STD199110-199308

***,DK.BLUE,TRIM8#

main71460-31130-J0iGS130..SDX199512

***,DK.BLUE,TRIM8#

main71460-31140-B0iGS130..SALEX199512

***,SHADOW GRAY,TRIM1#

main71460-31140-E0iGS130..SALEX199512

***,QUARTZ,TRIM4#

main71460-31160-J0iGS136..DLX199512

***,DK.BLUE,TRIM8#

main71460-31170-J0iGS136..SDX199512

***,DK.BLUE,TRIM8#

main71460-3A050-E0iGS130,131,JZS131,LS131..SALEX199110-199308

***,QUARTZ,TRIM4#

main71460-3A050-J0iGS130,131,JZS131,LS131..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71460-3A051-E2iGS130,131,JZS131,LS131..SALEX199308-199512

***,QUARTZ,TRIM4#

main71460-3A051-J2iGS130,131,JZS131,LS131..SALEX199308-199512

***,DK. BLUE,TRIM8#

main71460-3A060-J0iGS130..ROY199112-199308

***,DK.BLUE,TRIM8#

main71460-3A061-J1iGS130..ROY199308-199512

***,DK.BLUE,TRIM8#

main71460-3A070-J0iGS130..STD199110-199308

***,DK.BLUE,TRIM8#

main71460-3A080-E0iGS130..DLX199110-199308

***,QUARTZ,TRIM4#

main71460-3A080-J0iGS130..DLX199110-199308

***,DK.BLUE,TRIM8#

main71460-3A081-E2iGS130..DLX199308-199512

***,QUARTZ,TRIM4#

main71460-3A081-J3iGS130..DLX199308-199512

***,DK. BLUE,TRIM8#

main71460-3A090-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

***,QUARTZ,TRIM4#

main71460-3A090-J0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

***,DK.BLUE,TRIM8#

main71460-3A091-E2iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

***,QUARTZ,TRIM4#

main71460-3A091-J6iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

***,DK. BLUE,TRIM8#

main71460-3A100-J0iGS130..ATM..SDX..TWLPG199112-199308

main71460-3A101-J2iGS130..ATM..SDX..TWLPG199308-199512

main71460-3A110-J0iGS130..ATM..SDX..TWLPG199112-199308

main71460-3A111-J2iGS130..ATM..SDX..TWLPG199308-199512

main71460-3A190-J4iYS130..DLXA,STD199112-199308

***,DK.BLUE,TRIM8#

main71460-3A190-J5iYS130..DLXA,STD199308-199512

***,DK.BLUE,TRIM8#

main71460-3A200-J0iYS130..DLX199112-199308

***,DK.BLUE,TRIM8#

main71460-3A201-J2iYS130..DLX199308-199512

***,DK. BLUE,TRIM8#

main71460-3A210-J0iGS130..SDX..TWLPG199112-199308

***,DK.BLUE,TRIM8#

main71460-3A211-J2iGS130..SDX..TWLPG199308-199512

***,DK. BLUE,TRIM8#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-31090-E2iGS130..WG199110-199308

***,QUARTZ,TRIM4#

main71480-31090-J2iGS130..WG199110-199308

***,DK.BLUE,TRIM8#

main71480-31091-E3iGS130..WG199308-199512

***,QUARTZ,TRIM4#

main71480-31091-J3iGS130..WG199308-199512

***,DK. BLUE,TRIM8#

main71480-31100-J1iGS136,LS136..(4FC,5F)..DLX199110-199308

***,DK.BLUE,TRIM8#

main71480-31100-J2iGS136,LS136..(4FC,5F)..DLX199308-199512

***,DK.BLUE,TRIM8#

main71480-31110-J2iGS136..SDX199110-199308

***,DK.BLUE,TRIM8#

main71480-31111-J3iGS136..SDX199308-199512

***,DK. BLUE,TRIM8#

main71480-31120-J0iGS136..STD199110-199308

***,DK.BLUE,TRIM8#

main71480-31130-J0iGS136..4H..DLX199110-199308

***,DK.BLUE,TRIM8#

main71480-31130-J1iGS136..4H199308-199512

***,DK.BLUE,TRIM8#

main71480-31160-J0iGS130..SDX199512

***,DK.BLUE,TRIM8#

main71480-31170-B0iGS130..SALEX199512

***,SHADOW GRAY,TRIM1#

main71480-31170-E0iGS130..SALEX199512

***,QUARTZ,TRIM4#

main71480-31190-J0iGS136..DLX199512

***,DK.BLUE,TRIM8#

main71480-31200-J0iGS136..SDX199512

***,DK.BLUE,TRIM8#

main71480-3F030-J0iGS130..ATM..SDX..TWLPG199112-199308

main71480-3F031-J2iGS130..ATM..SDX..TWLPG199308-199512

main71480-3F060-J0iGS130,YS130..DLXA,STD199112-199308

***,DK.BLUE,TRIM8#

main71480-3F060-J7iYS130..DLXA,STD199308-199512

***,DK.BLUE,TRIM8#

main71480-3F070-E0iGS130..DLX199110-199308

***,QUARTZ,TRIM4#

main71480-3F070-J0iGS130,YS130..DLX199110-199308

***,DK.BLUE,TRIM8#

main71480-3F071-E2iGS130..DLX199308-199512

***,QUARTZ,TRIM4#

main71480-3F071-J3iGS130,YS130..DLX199308-199512

***,DK. BLUE,TRIM8#

main71480-3F080-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

***,QUARTZ,TRIM4#

main71480-3F080-J0iGS130,LS130..SED..SDX199110-199308

***,DK.BLUE,TRIM8#

main71480-3F081-E2iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

***,QUARTZ,TRIM4#

main71480-3F081-J4iGS130,LS130..SED..SDX199308-199512

***,DK. BLUE,TRIM8#

main71480-3F090-J0iGS130..ATM..SDX..TWLPG199112-199308

main71480-3F091-J2iGS130..ATM..SDX..TWLPG199308-199512

main71480-3F100-J0iGS130..ROY199112-199308

***,DK.BLUE,TRIM8#

main71480-3F101-J1iGS130..ROY199308-199512

***,DK.BLUE,TRIM8#

main71480-3F110-E0iGS130,131,JZS131,LS131..SALEX199110-199308

***,QUARTZ,TRIM4#

main71480-3F110-J0iGS130,131,JZS131,LS131..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71480-3F111-E2iGS130,131,JZS131,LS131..SALEX199308-199512

***,QUARTZ,TRIM4#

main71480-3F111-J2iGS130,131,JZS131,LS131..SALEX199308-199512

***,DK. BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-91704iGS130,136,LS136..V,WG199110

main71611-30740iJZS131..SALEX;GS130,131,LS130,131,YS130..SED199112-199512

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30460iGS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC)199110-199512

main71650-30480iGS130,YS130..LPEFI,TWLPG199112-199512

main71650-91708iGS136,LS136199110

main71650-91709iGS130..WG199110

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-30820iGS130..STD199110-199112

main71651-30830iGS130,LS130,YS130..SED..(DLX,SDX)199110-199512

main71651-30840iJZS131..SALEX;GS130,131,LS131..ROY,SALEX199110-199512

main71651-91711iGS136,LS136199110

main71651-91714iGS130..WG199110

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30580iGS130,LS130,YS130..SED..(DLX,SDX)199110-199512

main71670-30590iJZS131..SALEX;GS130,131,LS131..ROY,SALEX199110-199512

main71670-30600iGS130,YS130..DLXA,STD199112-199512

main71670-31040iGS136..4H199110-199512

main71670-31050iGS136,LS136..4FC,5F199110

main71670-31060iGS130..WG199110

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30020×2iJZS131..SALEX;GS130,131,LS130,131,YS130..SED199112-199512

9011908076

main90119-08076

9046818071

main90468-18071

11 parts on this diagram · 11 diagrams in section
