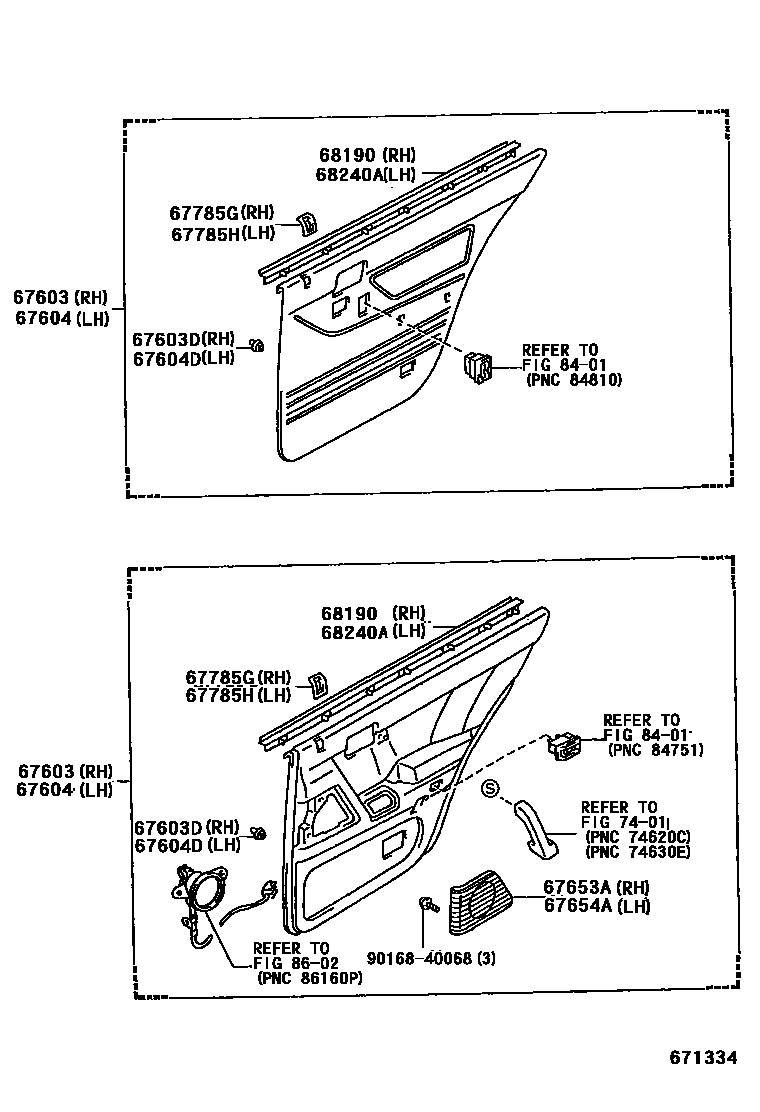

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-31020-B0iJZS130..ROY199512

SHADOW GRAY,TRIM1#

main67630-31020-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main67630-31030-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67630-31030-E0iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67630-31040-B0iGS130,JZS130,LS130..SALEX199704

main67630-31040-E0iGS130,JZS130,LS130..SALEX199704

main67630-3A630-J0iGS130..ATM..SDX..TWLPG199112-199308

main67630-3A630-J1iGS130..ATM..SDX..TWLPG199308-199512

main67630-3A640-B0iJZS135199110-199308

main67630-3A640-B1iJZS135199308-199512

main67630-3A640-E0iJZS135199110-199308

main67630-3A640-E1iJZS135199308-199512

main67630-3A640-J0iJZS135199110-199308

main67630-3A640-J1iJZS135199308-199512

main67630-3A650-B1iJZS135199110-199308

SHADOW GRAY,TRIM1#

main67630-3A650-B2iJZS135199308-199512

SHADOW GRAY,TRIM1#

main67630-3A650-E1iJZS135199110-199308

QUARTZ,TRIM4#

main67630-3A650-E2iJZS135199308-199512

QUARTZ,TRIM4#

main67630-3A650-J1iJZS135199110-199308

DK.BLUE,TRIM8#

main67630-3A650-J2iJZS135199308-199512

DK.BLUE,TRIM8#

main67630-3A660-B0iJZS130,131,133..ROY199110-199308

SHADOW GRAY,TRIM1#

main67630-3A660-B2iJZS130,131,133..ROY199308-199512

SHADOW GRAY,TRIM1#

main67630-3A660-E0iJZS130,131,133..ROY199110-199308

QUARTZ,TRIM4#

main67630-3A660-E3iJZS130,131,133..ROY199308-199512

QUARTZ,TRIM4#

main67630-3A660-J0iJZS130,131,133..ROY199110-199308

DK.BLUE,TRIM8#

main67630-3A660-J3iJZS130,131,133..ROY199308-199512

DK.BLUE,TRIM8#

main67630-3A670-E0iGS130,131,JZS130,131,LS130,131..SALEX199110-199308

QUARTZ,TRIM4#

main67630-3A670-E3iGS130,131,JZS130,131,LS130,131..SALEX199308-199512

QUARTZ,TRIM4#

main67630-3A670-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199308

DK.BLUE,TRIM8#

main67630-3A670-J3iGS130,131,JZS130,131,LS130,131..SALEX199308-199512

DK.BLUE,TRIM8#

main67630-3A680-E0iJZS130,131,LS130,131..SALEX199110-199210

main67630-3A680-E2iJZS130,131..SALEX199308-199512

main67630-3A680-J0iJZS130,131,LS130,131..SALEX199110-199210

main67630-3A680-J2iJZS130,131..SALEX199308-199512

main67630-3A690-E0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

QUARTZ,TRIM4#

main67630-3A690-E2iGS130,LS130..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main67630-3A690-J0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

DK.BLUE,TRIM8#

main67630-3A690-J3iGS130,LS130..SDX..(HTWC,TDE)199308

DK.BLUE,TRIM8#

main67630-3A700-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main67630-3A700-J1iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main67630-3A710-J1iGS130..SDX..TWLPG199112-199308

DK.BLUE,TRIM8#

main67630-3A710-J2iGS130..SDX..TWLPG199308-199512

DK.BLUE,TRIM8#

main67630-3A720-J1iGS130..ATM..SDX..TWLPG199112-199308

main67630-3A720-J2iGS130..ATM..SDX..TWLPG199308-199512

main67630-3A730-J3iYS130..DLX,DLXA; YS130..STD199112-199308

main67630-3A730-J4iYS130..DLX,DLXA; YS130..STD199308-199512

main67630-3A740-J1iYS130..STD199112-199308

DK.BLUE,TRIM8#

main67630-3A740-J2iYS130..STD199308-199512

DK.BLUE,TRIM8#

main67630-3A750-E0iGS130..DLX199110-199308

QUARTZ,TRIM4#

main67630-3A750-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main67630-3A750-J0iGS130..DLX;GS136..SDX199110-199308

DK.BLUE,TRIM8#

main67630-3A750-J1iGS130..DLX;GS136..SDX199308

DK.BLUE,TRIM8#

main67630-3A760-J0iGS130..STD;GS136,LS136..DLX,STD199110-199308

DK.BLUE,TRIM8#

main67630-3A760-J2iGS136,LS136..DLX199308

DK.BLUE,TRIM8#

main67630-3A780-E0iGS130,131..4FC..SALEX199211-199303

main67630-3A780-J0iGS130,131..4FC..SALEX199211-199303

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050×10iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30100×9iGS136;GS130,LS136..DLX,STD199110-199112

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-31020-B0iJZS130..ROY199512

SHADOW GRAY,TRIM1#

main67640-31020-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main67640-31030-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67640-31030-E0iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67640-31040-B0iJZS130,LS130..SALEX199512-199704

main67640-31040-E0iGS130,JZS130,LS130..SALEX199704

main67640-3A640-J1iGS130..ATM..SDX..TWLPG199112-199308

main67640-3A640-J2iGS130..ATM..SDX..TWLPG199308-199512

main67640-3A650-B0iJZS135199110-199308

main67640-3A650-B1iJZS135199308-199512

main67640-3A650-E0iJZS135199110-199308

main67640-3A650-E1iJZS135199308-199512

main67640-3A650-J0iJZS135199110-199308

main67640-3A650-J1iJZS135199308-199512

main67640-3A660-B1iJZS135199110-199308

SHADOW GRAY,TRIM1#

main67640-3A660-B2iJZS135199308-199512

SHADOW GRAY,TRIM1#

main67640-3A660-E1iJZS135199110-199308

QUARTZ,TRIM4#

main67640-3A660-E2iJZS135199308-199512

QUARTZ,TRIM4#

main67640-3A660-J1iJZS135199110-199308

DK.BLUE,TRIM8#

main67640-3A660-J2iJZS135199308-199512

DK.BLUE,TRIM8#

main67640-3A670-B0iJZS130,131,133..ROY199110-199308

SHADOW GRAY,TRIM1#

main67640-3A670-B2iJZS130,131,133..ROY199308-199512

SHADOW GRAY,TRIM1#

main67640-3A670-E0iJZS130,131,133..ROY199110-199308

QUARTZ,TRIM4#

main67640-3A670-E3iJZS130,131,133..ROY199308-199512

QUARTZ,TRIM4#

main67640-3A670-J0iJZS130,131,133..ROY199110-199308

DK.BLUE,TRIM8#

main67640-3A670-J3iJZS130,131,133..ROY199308-199512

DK.BLUE,TRIM8#

main67640-3A680-E0iGS130,131,JZS130,131,LS130,131..SALEX199110-199308

QUARTZ,TRIM4#

main67640-3A680-E3iGS130,131,JZS130,131,LS130,131..SALEX199308-199512

QUARTZ,TRIM4#

main67640-3A680-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199308

DK.BLUE,TRIM8#

main67640-3A680-J3iGS130,131,JZS130,131,LS130,131..SALEX199308-199512

DK.BLUE,TRIM8#

main67640-3A690-E0iJZS130,131,LS130,131..SALEX199110-199210

main67640-3A690-E2iJZS130,131..SALEX199308-199512

main67640-3A690-J0iJZS130,131..SALEX199210-199308

main67640-3A690-J2iJZS130,131..SALEX199308-199512

main67640-3A700-E0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

QUARTZ,TRIM4#

main67640-3A700-E2iGS130,LS130..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main67640-3A700-J0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

DK.BLUE,TRIM8#

main67640-3A700-J3iGS130,LS130..SDX..(HTWC,TDE)199308

DK.BLUE,TRIM8#

main67640-3A710-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main67640-3A710-J1iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main67640-3A720-J1iGS130..SDX..TWLPG199112-199308

DK.BLUE,TRIM8#

main67640-3A720-J2iGS130..SDX..TWLPG199308-199512

DK.BLUE,TRIM8#

main67640-3A730-J1iGS130..ATM..SDX..TWLPG199112-199308

main67640-3A730-J2iGS130..ATM..SDX..TWLPG199308-199512

main67640-3A740-E0iGS130..DLX199110-199308

QUARTZ,TRIM4#

main67640-3A740-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main67640-3A740-J0iGS130..DLX;GS136..SDX199110-199308

DK.BLUE,TRIM8#

main67640-3A740-J1iGS130..DLX;GS136..SDX199308

DK.BLUE,TRIM8#

main67640-3A750-J0iGS130..STD;GS136,LS136..DLX,STD199110-199308

DK.BLUE,TRIM8#

main67640-3A750-J2iGS136,LS136..DLX199308

DK.BLUE,TRIM8#

main67640-3A760-J0iYS130199112-199308

main67640-3A760-J1iYS130199308-199512

main67640-3A770-J0iYS130..DLX,DLXA199112-199308

DK.BLUE,TRIM8#

main67640-3A770-J1iYS130..DLX,DLXA199308-199512

DK.BLUE,TRIM8#

main67640-3A780-J0iYS130..STD199112-199308

DK.BLUE,TRIM8#

main67640-3A780-J1iYS130..STD199308-199512

DK.BLUE,TRIM8#

main67640-3A800-E0iGS130,131..4FC..SALEX199211-199303

main67640-3A800-J0iGS130,131..4FC..SALEX199211-199303

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050×10iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30100×9iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

67653AGRILLE, SPEAKER REAR DOOR, RH

main67653-30010-B0iJZS13#..ROY,ROYG199110

SHADOW GRAY,TRIM1#

main67653-30010-B1iJZS130,LS130..SALEX199512-199704

main67653-30010-E0iJZS13#..ROY,ROYG199110-199308

QUARTZ,TRIM4#

main67653-30010-J0iJZS13#..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main67653-30020-B1iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67653-30020-E0iGS130,131,JZS130,131,LS130,131..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67653-30020-J0iGS130..SDX199512

DK.BLUE,TRIM8#

67654AGRILLE, SPEAKER REAR DOOR, LH

main67654-30010-B0iJZS13#..ROY,ROYG199110

SHADOW GRAY,TRIM1#

main67654-30010-B1iJZS130,LS130..SALEX199512-199704

main67654-30010-E0iJZS130,LS130199512

main67654-30010-J0iJZS13#..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main67654-30020-B1iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67654-30020-E0iGS130,131,JZS130,131,LS130,131..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67654-30020-J0iJZS130,131..SALEX;GS130,131,LS130,131..ROY,SALEX,SDX199110-199512

DK.BLUE,TRIM8#

67785GHOLDER, REAR DOOR LOCK CONTROL KNOB, RH

main67785-30090-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67785-30090-E0iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67785-30090-J0iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199512

DK.BLUE,TRIM8#

main67785-30100-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main67785-30100-J0iGS136;GS130,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

67785HHOLDER, REAR DOOR LOCK CONTROL KNOB, LH

main67785-30090-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67785-30090-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67785-30090-J0iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199512

DK.BLUE,TRIM8#

main67785-30100-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main67785-30100-J0iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

DK.BLUE,TRIM8#

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-30120iGS13#,JZS13#,LS13#,YS130199112

main68240-30090iGS130,YS130..LPEFI,TWLPG199112-199308

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-30090iGS13#,JZS13#,LS13#199110-199112

7401ARMREST & VISOR

→ Go to FIG 74-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

9016840068

main90168-40068

14 parts on this diagram · 2 diagrams in section
