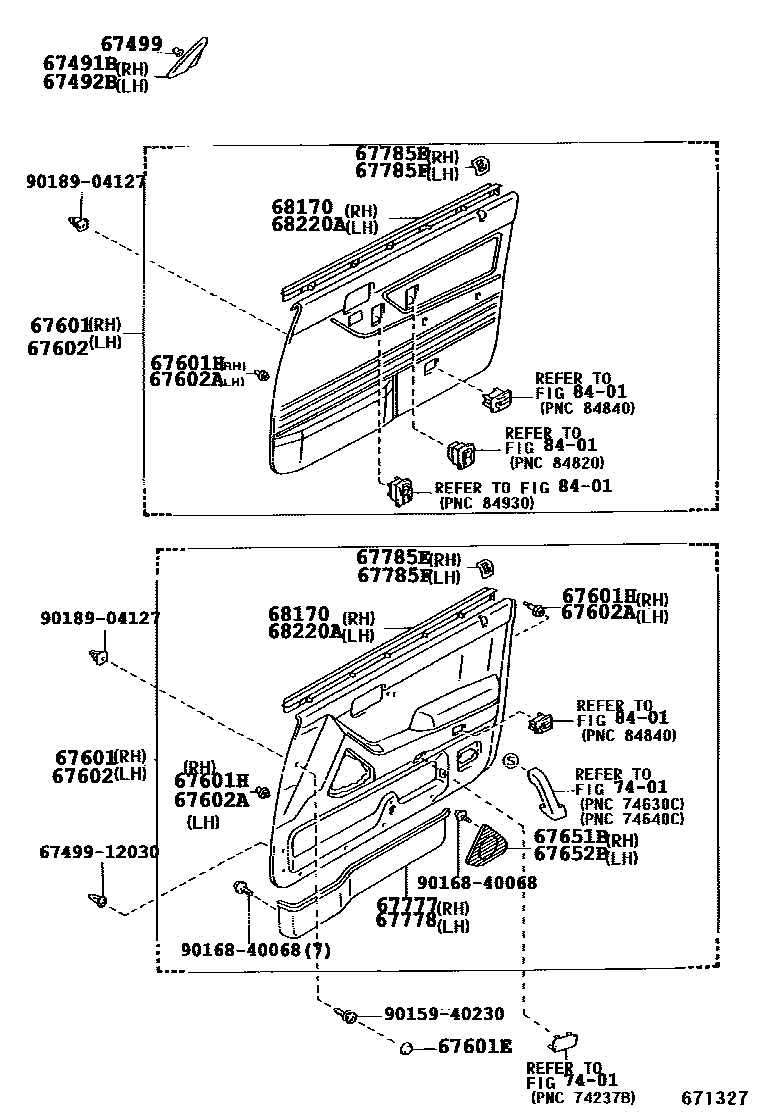

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH

main67491-30070iGS130..WG..SDX;GS13#,JZS131,133,135,LS13#,YS130..SED,V199112

main67491-30080iGS130,JZS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110

67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH

main67492-30070iLS130..SDX;GS13#,JZS131,133,135,LS131,136199110-199112

main67492-30080iGS130,JZS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30020×4iGS13#,JZS13#,LS13#199110-199112

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-31040-J0iGS136..SDX199110-199210

DK.BLUE,TRIM8#

main67610-31041-J0iGS136..SDX199210-199308

DK.BLUE,TRIM8#

main67610-31041-J1iGS136..SDX199308

DK.BLUE,TRIM8#

main67610-31050-B0iJZS130..ROY199512

SHADOW GRAY,TRIM1#

main67610-31050-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main67610-31080-B0iJZS130..ROY199512

main67610-31080-E0iJZS130..ROY199512

main67610-31090-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67610-31090-E0iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67610-31120-B0iGS130,JZS130,LS130..SALEX199512

main67610-31120-E0iGS130,JZS130,LS130..SALEX199512

main67610-3F100-E0iGS130..DLX199110-199210

QUARTZ,TRIM4#

main67610-3F100-J0iGS130..DLX199110-199210

DK.BLUE,TRIM8#

main67610-3F101-E0iGS130..DLX199210-199308

QUARTZ,TRIM4#

main67610-3F101-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main67610-3F101-J0iGS130..DLX199210-199308

DK.BLUE,TRIM8#

main67610-3F101-J1iGS130..DLX199308-199512

DK.BLUE,TRIM8#

main67610-3F110-J0iGS130..STD;GS136,LS136..DLX,STD199110-199308

DK.BLUE,TRIM8#

main67610-3F110-J1iGS136,LS136..DLX199308

DK.BLUE,TRIM8#

main67610-3F120-J0iYS130..DLX,DLXA199112-199210

DK.BLUE,TRIM8#

main67610-3F121-J0iYS130..DLX,DLXA199210-199308

DK.BLUE,TRIM8#

main67610-3F121-J1iYS130..DLX,DLXA199308-199512

DK.BLUE,TRIM8#

main67610-3F130-J0iYS130..STD199112-199308

DK.BLUE,TRIM8#

main67610-3F130-J1iYS130..STD199308-199512

DK.BLUE,TRIM8#

main67650-3A630-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main67650-3A630-J1iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main67650-3A640-J1iGS130..SDX..TWLPG199112-199308

DK.BLUE,TRIM8#

main67650-3A640-J2iGS130..SDX..TWLPG199308-199512

DK.BLUE,TRIM8#

main67650-3A650-J1iGS130..ATM..SDX..TWLPG199112-199308

main67650-3A650-J2iGS130..ATM..SDX..TWLPG199308-199512

main67650-3A700-B1iJZS130..ROY199110-199308

main67650-3A700-B2iJZS130..ROY199308-199512

main67650-3A700-E1iJZS130..ROY199110-199308

main67650-3A700-E2iJZS130..ROY199308-199512

main67650-3A700-J1iJZS130..ROY199110-199308

main67650-3A700-J2iJZS130..ROY199308-199512

main67650-3A710-E1iJZS130,LS130..SALEX199110-199308

main67650-3A710-E2iJZS130,LS130..SALEX199308-199512

main67650-3A710-J1iJZS130,LS130..SALEX199110-199308

main67650-3A710-J2iJZS130,LS130..SALEX199308-199512

main67650-3A720-E1iGS130..WG199110-199308

QUARTZ,TRIM4#

main67650-3A720-E2iGS130..WG199308-199512

QUARTZ,TRIM4#

main67650-3A720-J1iGS130..WG199110-199308

DK.BLUE,TRIM8#

main67650-3A720-J2iGS130..WG..SDX199308

DK.BLUE,TRIM8#

main67650-3A730-B1iJZS130..ROY199110-199308

SHADOW GRAY,TRIM1#

main67650-3A730-B2iJZS130..ROY199308-199512

SHADOW GRAY,TRIM1#

main67650-3A730-E1iJZS130..ROY199110-199308

QUARTZ,TRIM4#

main67650-3A730-E2iJZS130..ROY199308-199512

QUARTZ,TRIM4#

main67650-3A730-J1iJZS130..ROY199110-199308

DK.BLUE,TRIM8#

main67650-3A730-J2iJZS130..ROY199308-199512

DK.BLUE,TRIM8#

main67650-3A740-E1iJZS130,LS130..SALEX199110-199308

QUARTZ,TRIM4#

main67650-3A740-E2iJZS130,LS130..SALEX199308-199512

QUARTZ,TRIM4#

main67650-3A740-J1iJZS130,LS130..SALEX199110-199308

DK.BLUE,TRIM8#

main67650-3A740-J2iJZS130,LS130..SALEX199308-199512

DK.BLUE,TRIM8#

main67650-3A750-E1iGS130..WG199110-199308

main67650-3A750-E2iGS130..WG199308-199512

main67650-3A750-J1iGS130..WG199110-199308

main67650-3A750-J2iGS130..WG..SDX199308

main67650-3A780-J1iYS130..STD199112-199210

main67650-3A781-J1iYS130..STD199210-199308

main67650-3A781-J2iYS130..STD199308-199512

main67650-3A790-J0iGS130..ATM..SDX..TWLPG199112-199308

main67650-3A790-J1iGS130..ATM..SDX..TWLPG199308-199512

main67650-3A800-B0iJZS131,133,135..ROY,ROYG199110-199308

SHADOW GRAY,TRIM1#

main67650-3A800-B2iJZS131,133,135..ROY,ROYG199308-199512

SHADOW GRAY,TRIM1#

main67650-3A800-E0iJZS131,133,135..ROY,ROYG199110-199308

QUARTZ,TRIM4#

main67650-3A800-E2iJZS131,133,135..ROY,ROYG199308-199512

QUARTZ,TRIM4#

main67650-3A800-J0iGS130,131..4FC..SALEX199211-199303

main67650-3A800-J2iJZS131,133,135..ROY,ROYG199308-199512

DK.BLUE,TRIM8#

main67650-3A810-E0iGS130,131,JZS131,LS131..SALEX199110-199308

QUARTZ,TRIM4#

main67650-3A810-E1iGS130,131,JZS131,LS131..SALEX199308-199512

QUARTZ,TRIM4#

main67650-3A810-J0iGS130,131,JZS131,LS131..SALEX199110-199308

DK.BLUE,TRIM8#

main67650-3A810-J1iGS130,131,JZS131,LS131..SALEX199308-199512

DK.BLUE,TRIM8#

main67650-3A820-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

QUARTZ,TRIM4#

main67650-3A820-E1iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main67650-3A820-J0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

DK.BLUE,TRIM8#

main67650-3A820-J1iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

DK.BLUE,TRIM8#

main67650-3A830-B0iJZS131,133,135..ROY,ROYG199110-199308

main67650-3A830-B2iJZS131,133,135..ROY,ROYG199308-199512

main67650-3A830-E0iJZS131,133,135..ROY,ROYG199110-199308

main67650-3A830-E3iJZS131,133,135..ROY,ROYG199308-199512

main67650-3A830-J0iJZS131,133,135..ROY,ROYG199110-199308

main67650-3A830-J3iJZS131,133,135..ROY,ROYG199308-199512

main67650-3A840-E0iGS130,131,JZS131,LS131..SALEX199110-199308

main67650-3A840-E2iGS130,131,JZS131,LS131..SALEX199308-199512

main67650-3A840-J0iGS130,131,JZS131,LS131..SALEX199110-199308

main67650-3A840-J2iGS130,131,JZS131,LS131..SALEX199308-199512

main67650-3A850-E0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

main67650-3A850-E1iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

main67650-3A850-J0iGS130,LS130..SED..SDX..(HTWC,TDEC)199110-199308

main67650-3A850-J1iGS130,LS130..SED..SDX..(HTWC,TDE)199308-199512

main67650-3A860-B0iJZS135199110-199308

main67650-3A860-B1iJZS135199308-199512

main67650-3A860-E0iJZS135199110-199308

main67650-3A860-E1iJZS135199308-199512

main67650-3A860-J0iJZS135199110-199308

main67650-3A860-J1iJZS135199308-199512

main67650-3A870-B0iJZS135199110-199308

main67650-3A870-B1iJZS135199308-199512

main67650-3A870-E0iJZS135199110-199308

main67650-3A870-E1iJZS135199308-199512

main67650-3A870-J0iJZS135199110-199308

main67650-3A870-J1iJZS135199308-199512

main67650-3A890-J3iYS130..DLX,DLXA; YS130..STD199112-199210

main67650-3A891-J3iYS130..DLX,DLXA; YS130..STD199210-199308

main67650-3A891-J4iYS130..DLX,DLXA; YS130..STD199308-199512

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main90339-10001-B3×2iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main90339-10001-E1×2iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main90339-10001-W3×2iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199512

DARK BLUE,TRIM8#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×10iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30090iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30100×11iGS136;GS130,LS136..DLX,STD199110-199112

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-31030-B0iJZS130..ROY199512

SHADOW GRAY,TRIM1#

main67620-31030-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main67620-31060-B0iJZS130..ROY199512

main67620-31060-E0iJZS130..ROY199512

main67620-31070-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67620-31070-E0iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67620-31080-B0iGS130,JZS130,LS130..SALEX199512

main67620-31080-E0iGS130,JZS130,LS130..SALEX199512

main67620-3F440-J0iGS130..ROY199112-199308

DK.BLUE,TRIM8#

main67620-3F440-J1iGS130..ROY199308-199512

DK.BLUE,TRIM8#

main67620-3F450-J1iGS130..SDX..TWLPG199112-199308

DK.BLUE,TRIM8#

main67620-3F450-J2iGS130..SDX..TWLPG199308-199512

DK.BLUE,TRIM8#

main67620-3F460-J1iGS130..ATM..SDX..TWLPG199112-199308

main67620-3F460-J2iGS130..ATM..SDX..TWLPG199308-199512

main67620-3F520-J0iGS130..ATM..SDX..TWLPG199112-199308

main67620-3F520-J1iGS130..ATM..SDX..TWLPG199308-199512

main67620-3F530-B0iJZS135199110-199308

main67620-3F530-B1iJZS135199308-199512

main67620-3F530-E0iJZS135199110-199308

main67620-3F530-E1iJZS135199308-199512

main67620-3F530-J0iJZS135199110-199308

main67620-3F530-J1iJZS135199308-199512

main67620-3F540-B0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F540-B3iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F540-E0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F540-E3iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F540-J0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F540-J3iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F550-E0iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199110-199308

main67620-3F550-E3iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199308-199512

main67620-3F550-J0iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199110-199308

main67620-3F550-J3iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199308-199512

main67620-3F560-E0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

QUARTZ,TRIM4#

main67620-3F560-E2iGS130,LS130..SDX..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main67620-3F560-J0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

DK.BLUE,TRIM8#

main67620-3F560-J2iGS130,LS130..SDX..(HTWC,TDE)199308

DK.BLUE,TRIM8#

main67620-3F570-B0iJZS135199110-199308

main67620-3F570-B1iJZS135199308-199512

main67620-3F570-E0iJZS135199110-199308

main67620-3F570-E1iJZS135199308-199512

main67620-3F570-J0iJZS135199110-199308

main67620-3F570-J1iJZS135199308-199512

main67620-3F580-B0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F580-B3iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F580-E0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F580-E4iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F580-J0iJZS130..ROY; JZS131,133,135..ROY,ROYG199110-199308

main67620-3F580-J4iJZS130..ROY; JZS131,133,135..ROY,ROYG199308-199512

main67620-3F590-E0iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199110-199308

main67620-3F590-E3iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199308-199512

main67620-3F590-J0iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199110-199308

main67620-3F590-J3iGS130,131,JZS131,LS131..SALEX; JZS130,LS130..SALEX199308-199512

main67620-3F600-E0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

main67620-3F600-E2iGS130,LS130..SDX..(HTWC,TDE)199308-199512

main67620-3F600-J0iGS130,LS130..SDX..(HTWC,TDEC)199110-199308

main67620-3F600-J2iGS130,LS130..SDX..(HTWC,TDE)199308

main67620-3F620-E0iGS130..DLX199110-199308

QUARTZ,TRIM4#

main67620-3F620-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main67620-3F620-J0iGS130..DLX;GS136..SDX199110-199308

DK.BLUE,TRIM8#

main67620-3F620-J1iGS130..DLX;GS136..SDX199308

DK.BLUE,TRIM8#

main67620-3F630-J0iGS130..STD;GS136,LS136..DLX,STD199110-199308

DK.BLUE,TRIM8#

main67620-3F630-J1iGS136,LS136..DLX199308

DK.BLUE,TRIM8#

main67620-3F640-J0iYS130..DLX,DLXA; YS130..STD199112-199308

main67620-3F640-J1iYS130..DLX,DLXA; YS130..STD199308-199512

main67620-3F650-J0iYS130..STD199112-199308

DK.BLUE,TRIM8#

main67620-3F650-J1iYS130..STD199308-199512

DK.BLUE,TRIM8#

67602ARETAINER, DOOR TRIM, LH

main67771-12050×10iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30090iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

main67771-30100×11iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

67651BGRILLE, SPEAKER DOOR, RH

main67651-30100-B0iJZS13#..ROY,ROYG199110

SHADOW GRAY,TRIM1#

main67651-30100-B1iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67651-30100-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67651-30100-J0iGS130..SDX199512

DK.BLUE,TRIM8#

67652BGRILLE, SPEAKER DOOR, LH

main67652-30080-B0iJZS13#..ROY,ROYG199110

SHADOW GRAY,TRIM1#

main67652-30080-B1iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67652-30080-E0iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67652-30080-J0iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199512

DK.BLUE,TRIM8#

67777POCKET, FRONT DOOR TRIM, RH

main67770-30020-J0iGS130..ATM..SDX..TWLPG199112-199512

main67770-30050-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main67770-30050-E0iJZS13#..ROY,ROYG199110-199512

QUARTZ,TRIM4#

main67770-30050-J0iGS130,JZS13#..ROY,ROYG199110-199512

DK.BLUE,TRIM8#

main67770-30060-B0iJZS135199110-199512

main67770-30060-E0iJZS135199110-199512

main67770-30060-J0iJZS135199110-199512

main67770-30070-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67770-30070-E0iGS130,JZS130,LS130..SALEX199704

QUARTZ

main67770-30070-E1iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67770-30070-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

DK.BLUE,TRIM8#

main67770-31010-B0iJZS130..ROY199512

GRAY,TRIM1#

main67770-31010-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main67777-30030-E0iGS130,LS130..SDX..(HTWC,TDE,TDEC)199110-199512

QUARTZ,TRIM4#

main67777-30030-J0iGS130,LS130..SDX199110

DK.BLUE,TRIM8#

67778POCKET, FRONT DOOR TRIM, LH

main67778-30020-E0iGS130,LS130..SDX..(HTWC,TDE,TDEC)199110-199512

QUARTZ,TRIM4#

main67778-30020-J0iGS130,LS130..SDX199110

DK.BLUE,TRIM8#

main67780-30040-J0iGS130..ATM..SDX..TWLPG199112-199512

main67780-30050-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main67780-30050-E0iJZS13#..ROY,ROYG199110-199512

QUARTZ,TRIM4#

main67780-30050-J0iGS130,JZS13#..ROY,ROYG199110-199512

DK.BLUE,TRIM8#

main67780-30060-B0iJZS135199110-199512

main67780-30060-E0iJZS135199110-199512

main67780-30060-J0iJZS135199110-199512

main67780-30070-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main67780-30070-E0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

QUARTZ,TRIM4#

main67780-30070-E1iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main67780-30070-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

DK.BLUE,TRIM8#

main67780-31010-B0iJZS130..ROY199512

GRAY,TRIM1#

main67780-31010-E0iJZS130..ROY199512

QUARTZ,TRIM4#

67785EHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH

main67785-30100-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67785-30100-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67785-30100-J0iGS13#,JZS13#,LS13#,YS130199112-199512

DK.BLUE,TRIM8#

67785FHOLDER, FRONT DOOR LOCK CONTROL KNOB, LH

main67785-30100-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67785-30100-E0iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67785-30100-J0iGS13#,JZS13#,LS13#199110-199112

DK.BLUE,TRIM8#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-30200iGS130,YS130..LPEFI,TWLPG199112-199308

main68170-30210iGS130,JZS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110

main68220-30150iGS130,YS130..LPEFI,TWLPG199112-199308

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-30150iLS130..SDX;GS13#,JZS131,133,135,LS131,136199110-199112

main68220-30160iGS130,JZS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110

7401ARMREST & VISOR

→ Go to FIG 74-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6749912030RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12030

9015940230

main90159-40230

9016840068

main90168-40068

9018904127

main90189-04127

22 parts on this diagram · 9 diagrams in section
