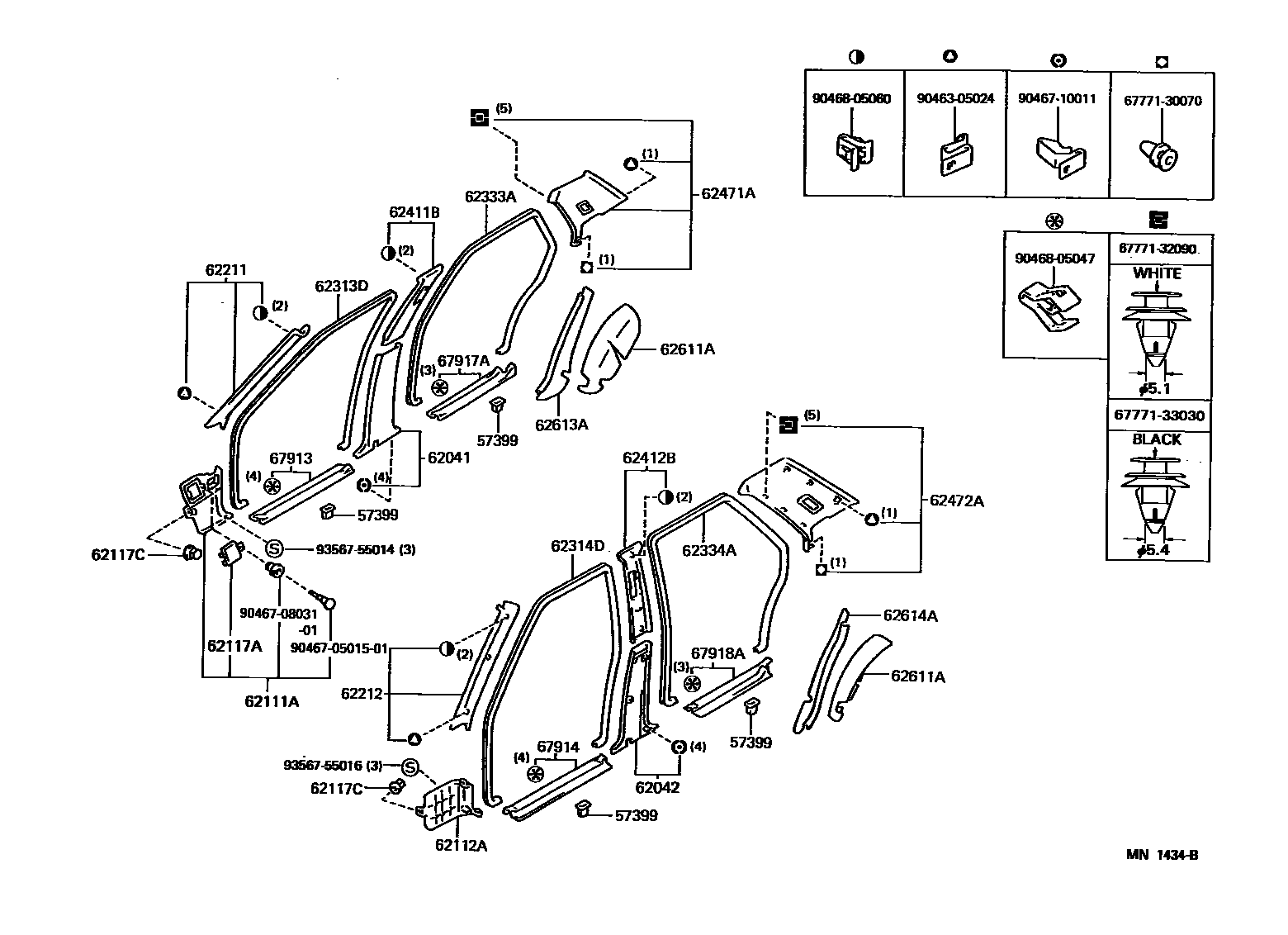

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0005 1 0007 1

57399COVER, FRONT STEP HOLE

main57399-24010×14iGS13#,JZS13#,LS13#,YS130199112

62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH

main62041-30050-B2iJZS13#..ROY,ROYG199110-199308

SHADOW GRAY,TRIM1#

main62041-30050-E5iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199110-199308

QUARTZ,TRIM4#

main62041-30050-J5iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199308

DK.BLUE,TRIM8#

main62041-30051-B2iJZS13#..ROY,ROYG199308-199512

SHADOW GRAY,TRIM1#

main62041-30051-E5iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main62041-30051-J5iGS130..SDX199512

DK.BLUE,TRIM8#

main62413-30140-E5iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62413-30140-J5iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

DK.BLUE,TRIM8#

62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH

main62042-30050-B2iJZS13#..ROY,ROYG199110-199308

SHADOW GRAY,TRIM1#

main62042-30050-E5iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199110-199308

QUARTZ,TRIM4#

main62042-30050-J5iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199308

DK.BLUE,TRIM8#

main62042-30051-B2iJZS13#..ROY,ROYG199308-199512

SHADOW GRAY,TRIM1#

main62042-30051-E5iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main62042-30051-J5iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199308-199512

DK.BLUE,TRIM8#

main62414-30070-E5iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62414-30070-J5iGS136;GS130,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-30290-E0iGS130,LS130..(DLX,SDX)..(HTWC,TDE,TDEC)199110-199512

QUARTZ,TRIM4#

main62101-30290-J0iGS130,136,LS130,136..DLX,SDX,STD199110-199112

DK.BLUE,TRIM8#

main62101-30360-B0iJZS135199110-199512

main62101-30360-E0iJZS135199110-199512

main62101-30360-J0iJZS135199110-199512

main62101-30370-E0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

QUARTZ,TRIM4#

main62101-30370-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

DK.BLUE,TRIM8#

main62101-30450-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62101-30450-E0iJZS13#..ROY,ROYG199110-199512

QUARTZ,TRIM4#

main62101-30450-J0iGS130,131..4FC..SALEX199211-199303

main62101-31010-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62101-31010-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-30330-B0iJZS135199110-199512

main62102-30330-E0iJZS135199110-199512

main62102-30330-J0iJZS135199110-199512

main62102-30360-E0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

QUARTZ,TRIM4#

main62102-30360-J0iGS130,131,JZS130,131,LS130,131..SALEX199110-199512

DK.BLUE,TRIM8#

main62102-30420-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62102-30420-E0iGS130,131..4FC..SALEX199211-199303

main62102-30420-J0iGS130,131..4FC..SALEX199211-199303

main62102-31010-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62102-31010-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main62112-30180-E0iGS130,LS130..(DLX,SDX)..(HTWC,TDE)199308-199512

QUARTZ,TRIM4#

main62112-30180-J0iGS130,136,LS130,136,YS130..DLX,DLXA,SDX,STD199112

DK.BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-30032-B1iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62117-30032-E1iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main62117-30032-J0iGS13#,JZS13#,LS13#,YS130199112-199512

DK.BLUE,TRIM8#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-05050-01×2iGS130,131,JZS130,131,LS130,131..SALEX; JZS135199211-199308

main90467-05050-22×2iGS13#..DLX,SDX; GS130,JZS130,LS130..ROY,SALEX199512

main90467-06120×2iGS13#,JZS13#,LS13#,YS130199308

62211GARNISH, FRONT PILLAR, RH

main62211-30150-J0iGS136,LS136199110

LI.BLUE,TRIM8#

main62211-30160-E0iGS130..WG199110-199512

QUARTZ,TRIM4#

main62211-30160-J0iGS130..WG..SDX199110

QUARTZ,TRIM8#

main62211-30170-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main62211-30170-J0iJZS130,LS130..SALEX199110-199512

IVORY,TRIM8#

main62211-30260-B1iJZS131,133,135..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62211-30260-E1iGS130,131..4FC..SALEX199211-199303

main62211-30260-J1iGS130..ATM..SDX..TWLPG199112-199512

main62211-30280-E0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62211-30280-J0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

DK.BLUE,TRIM8#

main62211-30290-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62211-30290-J0iGS130..DLX,STD199110-199112

LI.BLUE,TRIM8#

main62211-31010-B1iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62211-31010-E1iJZS130..ROY199110-199512

QUARTZ,TRIM4#

main62211-31010-J1iJZS130..ROY199110-199512

DK.BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-30150-J0iGS136,LS136199110

LI.BLUE,TRIM8#

main62212-30160-E0iGS130..WG199110-199512

QUARTZ,TRIM4#

main62212-30160-J0iGS130..WG..SDX199110

DK.BLUE,TRIM8#

main62212-30170-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main62212-30170-J0iJZS130,LS130..SALEX199110-199512

DK.BLUE,TRIM8#

main62212-30260-B1iJZS131,133,135..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62212-30260-E1iGS130,131..4FC..SALEX199211-199303

main62212-30260-J1iGS130..ATM..SDX..TWLPG199112-199512

main62212-30280-E0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62212-30280-J0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

DK.BLUE,TRIM8#

main62212-30290-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62212-30290-J0iGS130..DLX,STD199110-199112

LI.BLUE,TRIM8#

main62212-31010-B1iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62212-31010-E1iJZS130..ROY199110-199512

QUARTZ,TRIM4#

main62212-31010-J1iJZS130..ROY199110-199512

DK.BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30160-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62313-30160-J0iGS136;GS130,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30080-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62314-30080-J0iGS136;GS130,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30110-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62333-30110-J0iGS130,YS130..DLX,DLXA,STD199112-199512

DK.BLUE,TRIM8#

main62333-31010-J0iGS136,LS136199110

DK.BLUE,TRIM8#

62334ATRIM, REAR DOOR OPENING, LH

main62334-30050-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62334-30050-J0iGS130,YS130..DLX,DLXA,STD199112-199512

DK.BLUE,TRIM8#

main62334-31010-J0iGS136,LS136199110

DK.BLUE,TRIM8#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-30300-B1iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62410-30300-E1iJZS13#..ROY,ROYG199110-199512

QUARTZ,TRIM4#

main62410-30300-J1iGS130,JZS13#..ROY,ROYG199110-199512

DK.BLUE,TRIM8#

main62411-30250-E1iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62411-30250-J1iGS136;GS130,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

main62411-30260-E0iGS130,131,JZS130,131,LS130,131..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62411-30260-J0iGS130,131,JZS130,131,LS130,131..SALEX,SDX199110-199512

DK.BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30250-E1iGS130..DLX199110-199512

QUARTZ,TRIM4#

main62412-30250-J1iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

DK.BLUE,TRIM8#

main62412-30260-E0iGS130,131,JZS130,131,LS130,131..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62412-30260-J0iGS130,131,JZS130,131,LS130,131..SALEX,SDX199110-199512

DK.BLUE,TRIM8#

main62420-30290-B1iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main62420-30290-E1iJZS13#..ROY,ROYG199110-199512

QUARTZ,TRIM4#

main62420-30290-J1iGS130,131..4FC..SALEX199211-199303

62471AGARNISH, ROOF SIDE, INNER RH

main62470-30380-B2iJZS131,133,135..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62470-30380-E2iGS130,131..4FC..SALEX199211-199303

main62470-30380-J2iGS130,JZS131,133,135..ROY,ROYG199110-199512

DK.BLUE,TRIM8#

main62470-30400-E0iGS130..DLX199110-199308

QUATZ,TRIM4#

main62470-30400-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main62470-30400-J0iGS130,YS130..DLX,DLXA,STD199308-199512

LI.BLUE,TRIM8#

main62470-30400-J1iGS130,YS130..DLX,DLXA,STD199112-199308

DK.BLUE,TRIM8#

main62471-30340-E0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62471-30340-J0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

DK.BLUE,TRIM8#

main62471-31010-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main62471-31010-J0iJZS130,LS130..SALEX199110-199512

DK.BLUE,TRIM8#

main62471-31020-B1iJZS130,LS130199512

SHADOW GRAY,TRIM1#

main62471-31020-E1iJZS130,LS130199512

QUARTZ,TRIM4#

main62471-31020-J1iJZS130..ROY199110-199512

DK.BLUE,TRIM8#

main62471-31030-B0iGS130..SALEX199512

SHADOW GRAY,TRIM1#

main62471-31030-E0iGS130..SALEX199512

QUARTZ,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30300-E0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main62472-30300-J0iGS130,131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

DK.BLUE,TRIM8#

main62472-31010-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main62472-31010-J0iJZS130,LS130..SALEX199110-199512

DK.BLUE,TRIM8#

main62472-31020-B1iJZS130..ROY199110-199512

SHADOW GRAY,TRIM1#

main62472-31020-E1iJZS130..ROY199110-199512

QUARTZ,TRIM4#

main62472-31020-J1iJZS130..ROY199110-199512

DK.BLUE,TRIM8#

main62472-31030-B0iGS130..SALEX199512

SHADOW GRAY,TRIM1#

main62472-31030-E0iGS130..SALEX199512

QUARTZ,TRIM4#

main62480-30340-B2iJZS131,133,135..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main62480-30340-E2iGS130,131..4FC..SALEX199211-199303

main62480-30340-J2iGS130,JZS131,133,135..ROY,ROYG; GS130..ATM..SDX..TWLPG199112-199512

main62480-30360-E0iGS130..DLX199110-199308

QUARTZ,TRIM4#

main62480-30360-E1iGS130..DLX199308-199512

QUARTZ,TRIM4#

main62480-30360-J0iGS130,YS130..DLX,DLXA,STD199308-199512

LI.BLUE,TRIM8#

main62480-30360-J1iGS130,YS130..DLX,DLXA,STD199112-199308

DK.BLUE,TRIM8#

62611APAD, QUARTER WHEEL HOUSE

main62611-30020×2iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

main62611-91710×2iGS130,136,LS136..V,WG199110

62613ACOVER, QUARTER WHEEL HOUSE, RH

main62610-30030iGS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)199110-199112

main62610-31010-E0iGS130..SDX199512

QUARTZ

main62610-31010-J0iGS130..WG..SDX199110

DK.BLUE,TRIM8#

main62610-31020-J0iGS136,LS136199110

DK.BLUE,TRIM8#

main62610-31030-B0iGS130..SALEX199512

GRAY,TRIM1#

main62610-31030-E0iGS130..SALEX199512

QUARTZ,TRIM4#

62614ACOVER, QUARTER WHEEL HOUSE, LH

main62620-30030iGS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)199110-199112

main62620-31010-E0iGS130..SDX199512

QUARTZ

main62620-31010-J0iGS130..WG..SDX199110

DK.BLUE,TRIM8#

main62620-31020-J0iGS136,LS136199110

DK.BLUE,TRIM8#

main62620-31030-B0iJZS130,LS130199512

GRAY,TRIM1#

main62620-31030-E0iJZS130,LS130199512

QUARTZ,TRIM4#

main62620-31040-B0iGS130..SALEX199512

GRAY,TRIM1#

main62620-31040-E0iGS130..SALEX199512

QUARTZ,TRIM4#

main62620-91710-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main62620-91710-J0iJZS130,LS130..SALEX199110-199512

DK.BLUE,TRIM8#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30160-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main67913-30160-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67913-30160-J0iGS13#,JZS13#,LS13#199110-199112

DK.BLUE,TRIM8#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-30160-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main67913-30160-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67913-30160-J0iGS13#..DLX,SDX199512

DK.BLUE,TRIM8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-30110-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67917-30110-E0iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main67917-30110-J0iGS13#,JZS13#,LS13#,YS130199112-199512

DK.BLUE,TRIM8#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30090-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main67918-30090-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main67918-30090-J0iGS13#..DLX,SDX199512

DK.BLUE,TRIM8#

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046305024

main90463-05024

904670501501

main90467-0501501

904670803101

main90467-0803101

9046710011

main90467-10011

9046805047

main90468-05047

9046805060

main90468-05060

9356755014

main93567-55014

9356755016

main93567-55016

35 parts on this diagram · 5 diagrams in section
