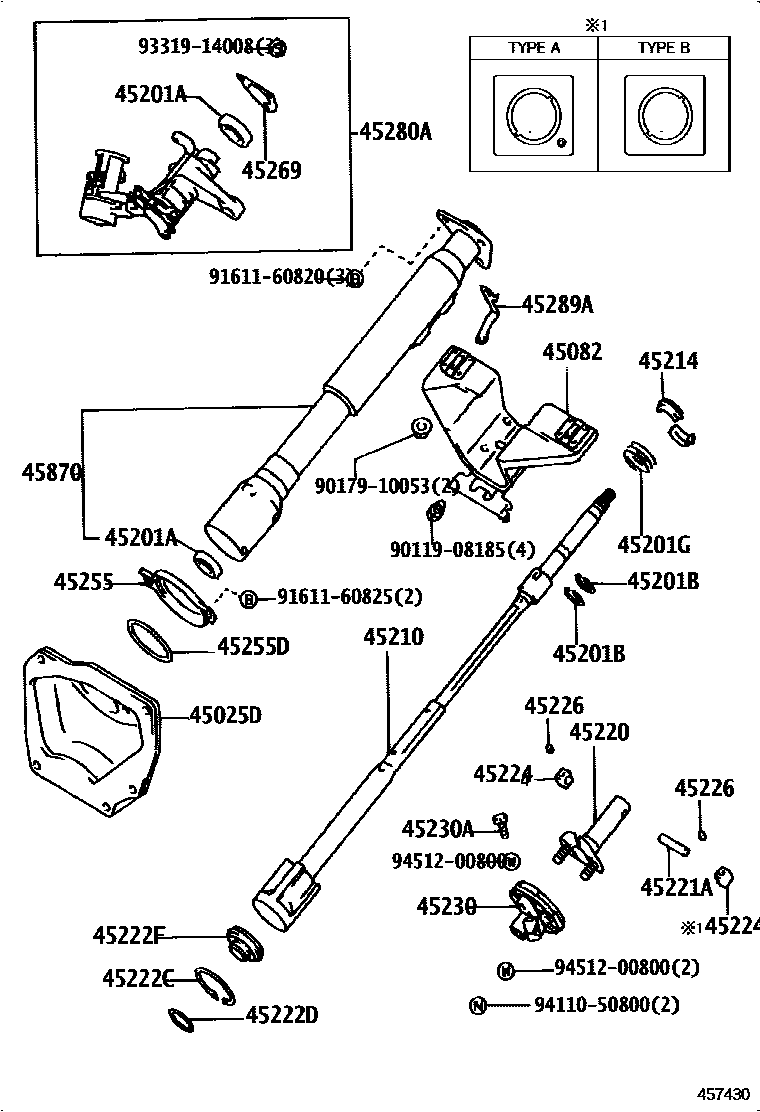

STEERING COLUMN & SHAFT

0001 1 0002 1��� ������� 0003 1��� & �������� ������� 0004 1��������� & �������� ������� 0005 1��� ������� 0006 1��� & �������� ������� 0007 1 0008 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30140iGS130,136,YS130..4H199110-199512

main45025-30180iGS130..SDX; GS136199512

main45025-30190iJZS133,135..4FC199110-199512

main45025-30220iJZS130..4FC..ROY;GS130,131,JZS131,LS131..4FC..(ROY,SALEX)199110-199512

main45025-30221iGS130,JZS130,LS130..4FC; GS136199609

main45025-30230iJZS133,135..4HC199110-199512

main45025-30240iJZS130,131..4HC199110-199112

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-30110iGS130..SDX; GS136199512

main45082-30120iGS130..SDX; GS136199512

main45082-30170iJZS13#..4HC199110-199112

main45082-30220iJZS130..4HC199512

main45082-30230iGS130,JZS130,LS130..SALEX,SDX; GS136199512

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iGS130..SDX; GS136;JZS130..4HC199512

main90363-25032iGS130..4FC..DLX;GS130,136,LS136..(V,WG)..4FC; GS130..SED..4FC..(ROY,SDX);GS131,JZS130,131,133,LS130,131..4FC199110-199308

main90363-28001iGS130,JZS130,LS130..SALEX,SDX; GS130..SDX; GS136199512

main90369-43004iGS13#,JZS130,131,133,LS13#..4FC,5F; JZS135..4FC; JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130199308-199512

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iGS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)199112-199512

main90520-17196×2iJZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG199110-199112

main90520-23034iGS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F); JZS130,LS130..SALEX,SDX;GS130..SED..(4FC,5F)..SDX199110-199512

main90522-18001iJZS130..4FC..ROY;GS130,131,JZS131,133,135,LS131..4FC..(ROY,ROYG,SALEX)199210-199308

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iGS130,JZS130,LS130..SALEX,SDX; GS130..SDX; GS136; GS136;JZS130..4HC199512

main90501-45011iGS131,JZS13#,LS130,131..4FC;GS130..SED..(4FC,5F)..(ROY,SALEX,SDX)199210-199308

45210SHAFT ASSY, STEERING MAIN

main45210-30060iGS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX)199110-199309

main45210-30061iGS13#..DLX,SDX199512-199904

main45210-30070iJZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX)199308-199309

main45210-30072iGS13#,JZS130,LS130..DLX,SALEX,SDX199512-199904

main45210-30090iGS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG199110-199112

main45210-30100iJZS133,135..4HC199110-199512

45214RETAINER, MAIN SHAFT SPRING

main45214-30040×2iGS13#,JZS13#,LS13#199110-199112

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-30040iGS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F); GS131,JZS13#,LS130,131..4FC;GS130..SED..(4FC,5F)..(ROY,SALEX,SDX)199110-199512

main45220-30070iGS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F); GS131,JZS130,131,LS130,131..4FC;GS130..SED..(4FC,5F)..(ROY,SALEX,SDX)199110-199309

main45220-30071iGS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F); GS131,JZS130,131,LS130,131..4FC;GS130..SED..(4FC,5F)..(ROY,SALEX,SDX)199309-199512

main45220-30080iJZS133..4FC199110-199210

main45220-30081iGS13#,JZS130,131,LS13#..4FC,5F; JZS133..4FC199309-199512

main45220-30090iJZS133..4FC; JZS135..4FC199110-199210

main45220-30091iJZS133..4FC; JZS135..4FC199309-199512

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iGS13#,JZS13#,LS13#,YS130199112

45222CRING, HOLE SNAP(FOR DUST COVER)

main90521-52003iGS13#,JZS13#,LS13#,YS130199112

45222DRING, O(FOR DUST COVER)

main90301-23054iGS13#,JZS13#,LS13#199110-199112

45222FCOVER, DUST

main45222-30030iGS13#,JZS13#,LS13#199110-199112

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30040×2iGS13#,JZS13#,LS13#199110-199112

main45225-30040×2iGS13#,JZS13#,LS13#199110-199112

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30020×2iGS13#,JZS13#,LS13#,YS130199112-199402

main45226-30021×2iGS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDEC,TWC)199210-199308

45230COUPLING ASSY, FLEXIBLE

main45230-30160iGS13#,JZS13#,LS13#199110-199112

45230ABOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET)

main90101-08230iGS13#,JZS13#,LS13#,YS130199112

45255PLATE, STEERING COLUMN HOLE COVER

main45255-30040iGS13#,JZS13#,LS13#,YS130199112

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-59005iGS13#,JZS13#,LS13#199110-199112

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iJZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG199110-199112

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30430iGS130,136,LS136..5F..DLX199110

main45280-30440iJZS133..4FC199110-199210

main45280-30470iGS130..4H;GS130..5F..(DLX,STD);GS136,LS136,YS130..MTM199110

main45280-30510iGS130..SDX; GS136..SDX199512

main45280-30520iGS130..4FC..DLX;GS130,136,LS136..(V,WG)..4FC; GS130..SED..4FC..SDX;JZS130,LS130..SALEX,SDX199110-199512

main45280-30530iGS130,JZS130,LS130..SALEX,SDX; GS136..SDX199512

main45280-30550iJZS13#..4HC199110-199112

main45280-30560iGS13#,JZS130,131,133,LS13#..4FC; JZS135..4FC199208-199210

main45280-30580iGS130,JZS13#,YS130..4HC199408-199704

main45280-30610iJZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX)199110-199208

main45280-30650iGS136..DLX199512

main45280-30670iJZS130..4HC199704

45289ASUPPORT, STEERING COLUMN COVER

main45289-30050iGS130..DLX,STD;GS136,LS136,YS130;GS130..WG..4FC..SDX;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)199112

45870TUBE ASSY, STEERING COLUMN

main45870-30170iGS130..SDX; GS136;JZS130..4HC199512

main45870-30180iJZS133,135..4HC199110-199512

main45870-30210iJZS133..4FC; JZS135..4FC199308-199512

main45870-30220iGS13#,JZS130,131,LS13#..4FC,5F199110-199512

main45870-30230iGS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F); GS131,JZS130,131,LS130,131..4FC;GS130..SED..(4FC,5F)..(ROY,SALEX,SDX)199110-199512

main45870-30240iJZS133..4FC199308-199512

9011908185

main90119-08185

9017910053

main90179-10053

9161160820

main91611-60820

9161160825

main91611-60825

9331914008

main93319-14008

9411050800

main94110-50800

9451200800

main94512-00800

29 parts on this diagram · 8 diagrams in section
