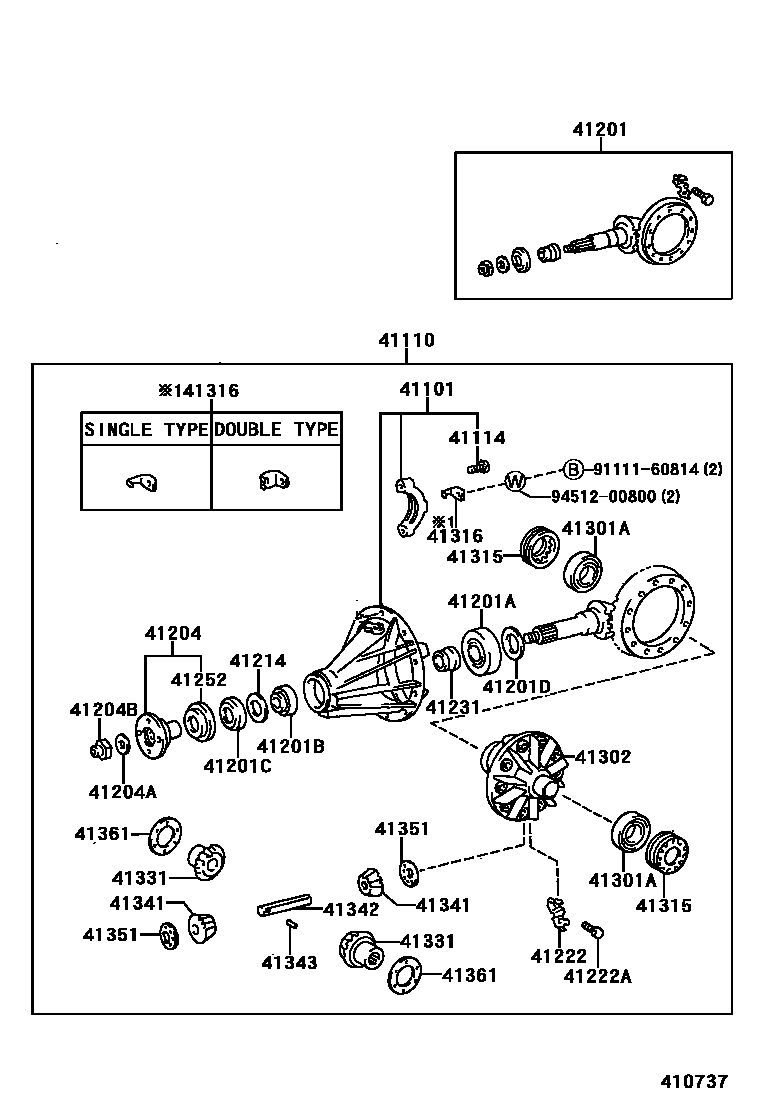

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30031iGS130,136,JZS130,LS130,136,YS130199112

main41101-30050iGS131,LS131199110-199512

main41101-30071iJZS131,133,135199110-199512

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-28060iYS130..ATM199112-199512

main41110-28070iYS130..4H;JZS130,LS130199110-199311

main41110-28080iGS130..TWLPG199112-199512

main41110-30170iGS130,136..ATM..HTWC199110

main41110-30180iLS136199110-199409

main41110-30440iJZS133,135199110-199512

main41110-30450iJZS131199110-199512

main41110-30490iGS130,136..MTM..HTWC199110

main41110-30510iGS131199110-199512

main41110-30560iLS131199110-199509

main41110-30680iYS130..4H199311-199512

main41110-35290iYS130..4H199112-199512

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iGS130,136,JZS130,LS130,136199110-199112

main90105-12163×4iGS131,LS131199110-199512

main90105-12164×4iJZS131,133,135199110-199512

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19557iJZS131199110-199512

main41201-19605iJZS133,135199110-199512

main41201-80003iYS130..4H199112-199512

main41201-80004iYS130..4H;JZS130,LS13#199110

main41201-80007iYS130..ATM199112-199512

main41201-80015iGS130..4FC..TWLPG;GS130,136..(4H,4HC,5F)..(DLX,SDX,STD)199110

main41201-80017iGS131199110-199308

main41201-80030iGS13#..ATM..HTWC199308

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGS13#,JZS130,LS13#..DSL,HTWC,TDE,TWC199311

main90366-35028iJZS131,133,135199110-199512

main90366-35073iGS130,YS130..LPEFI,TWLPG199311-199512

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGS131,LS131199110-199311

main90366-30025iJZS131,133,135199110-199512

main90366-30055iGS13#,JZS130,LS130199610

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iGS131,JZS131,133,135,LS131199110-199512

main90311-38047iGS13#,JZS130,LS130199512

main90311-38133iGS130,136,JZS130,LS130,136199110-199112

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iGS13#,JZS130,LS13#199110-199112

main90201-35397iGS13#,JZS130,LS13#,YS130199112

main90201-35398iGS13#,JZS130,LS13#199110-199112

main90201-35399iGS13#,JZS130,LS13#199110-199112

main90201-35400iGS13#,JZS130,LS13#,YS130199112

main90201-35401iGS13#,JZS130,LS13#199110-199112

main90201-35402iGS13#,JZS130,LS13#,YS130199112

main90201-35403iGS13#,JZS130,LS13#,YS130199112

main90201-35404iGS13#,JZS130,LS13#199110-199112

main90201-35434iGS13#,JZS130,LS13#199110-199112

main90201-35435iGS13#,JZS130,LS13#199110-199112

main90201-35436iGS13#,JZS130,LS13#199110-199112

main90201-35437iGS13#,JZS130,LS13#199110-199112

main90201-35438iGS13#,JZS130,LS13#,YS130199112

main90201-35439iGS13#,JZS130,LS13#,YS130199112

main90201-35440iGS13#,JZS130,LS13#199110-199112

main90201-35441iGS13#,JZS130,LS13#199110-199112

main90201-35497iJZS131,133,135199110-199512

main90201-35498iJZS131,133,135199110-199512

main90201-35499iJZS131,133,135199110-199512

main90201-35500iJZS131,133,135199110-199512

main90201-35501iJZS131,133,135199110-199512

main90201-35502iJZS131,133,135199110-199512

main90201-35503iJZS131,133,135199110-199512

main90201-35504iJZS131,133,135199110-199512

main90201-35505iJZS131,133,135199110-199512

main90201-35506iJZS131,133,135199110-199512

main90201-35507iJZS131,133,135199110-199512

main90201-35508iJZS131,133,135199110-199512

main90201-35509iJZS131,133,135199110-199512

main90201-35510iJZS131,133,135199110-199512

main90201-35511iJZS131,133,135199110-199512

main90201-35512iJZS131,133,135199110-199512

main90201-35513iJZS131,133,135199110-199512

main90201-35514iJZS131,133,135199110-199512

main90201-35515iJZS131,133,135199110-199309

main90201-35516iJZS131,133,135199110-199309

main90201-35517iGS13#,JZS13#,LS13#,YS130199309

main90201-35518iJZS131,133,135199110-199309

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGS13#,LS136..DSL,HTWC199110

main41204-35041iJZS131,133,135199110-199512

main41204-35050iGS130,JZS130,LS130,131,YS130..LPEFI,TDE,TDEC,TWC,TWLPG199112

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iGS13#,JZS130,LS13#199110-199112

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iGS13#,JZS130,LS13#,YS130199112-199304

main90179-18020iGS13#,JZS130,LS13#,YS130199308

main90179-20018iJZS131,133,135199110-199512

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iJZS131,133,135199110-199512

main41214-30021iGS13#,JZS130,LS13#199110-199112

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010×5iJZS131,133,135199110-199512

main41222-35030×5iGS13#,JZS130,LS13#,YS130199112

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iGS13#,JZS13#,LS13#,YS130199112

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGS13#,JZS130,LS13#199110-199112

main41231-24010iJZS131,133,135199110-199512

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iGS13#,JZS130,LS13#,YS130199112

main41252-35010iJZS131,133,135199110-199310

main41252-35020iJZS131,133,135199310-199512

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001×2iJZS131,133,135199110-199512

main90368-45066×2iGS130,136,JZS130,LS130,136,YS130199112

main90368-50006×2iGS131,LS131199110-199512

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-22060iGS131,LS131199110-199512

main41311-22080iJZS131,133,135199110-199512

main41311-30050iGS130,136,JZS130,LS130,136199110-199112

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010×2iGS130,136,JZS130,LS130,136199110-199112

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010×2iGS130,136,JZS130,LS130,136,YS130199112-199308

SINGLE TYPE

main41316-35010×2iGS130,136,JZS130,LS130,136,YS130199308

SINGLE TYPE

main41317-30010×2iGS130,136,JZS130,LS130,136,YS130199112

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-14040×2iGS131,LS131199110-199512

main41331-22060×2iJZS131,133,135199110-199512

main41331-30030×2iGS130,136,JZS130,LS130,136199110-199112

41341PINION, REAR DIFFERENTIAL

main41341-30020×2iGS13#,JZS130,LS13#199110-199112

main41341-30040×2iJZS131,133,135199110-199512

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGS13#,JZS130,LS13#199110-199112

main41342-22030iJZS131,133,135199110-199512

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGS13#,JZS13#,LS13#199110-199112

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iJZS131,133,135199110-199512

main41351-30060×2iGS13#,JZS130,LS13#,YS130199112

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040×2iGS13#,JZS130,LS13#,YS130199112

main41361-30050×2iGS13#,JZS130,LS13#199110-199112

main41361-30060×2iGS13#,JZS130,LS13#,YS130199112

main41361-30070×2iGS13#,JZS130,LS13#,YS130199112

main41361-30080×2iGS131,LS131199110-199512

main41361-30090×2iGS131,LS131199110-199512

main41361-30100×2iGS131,LS131199110-199512

main41361-40021×2iJZS131,133,135199110-199512

main41362-40021×2iJZS131,133,135199110-199512

main41363-40021×2iJZS131,133,135199110-199512

9111160814

main91111-60814

9451200800

main94512-00800

28 parts on this diagram · 3 diagrams in section
