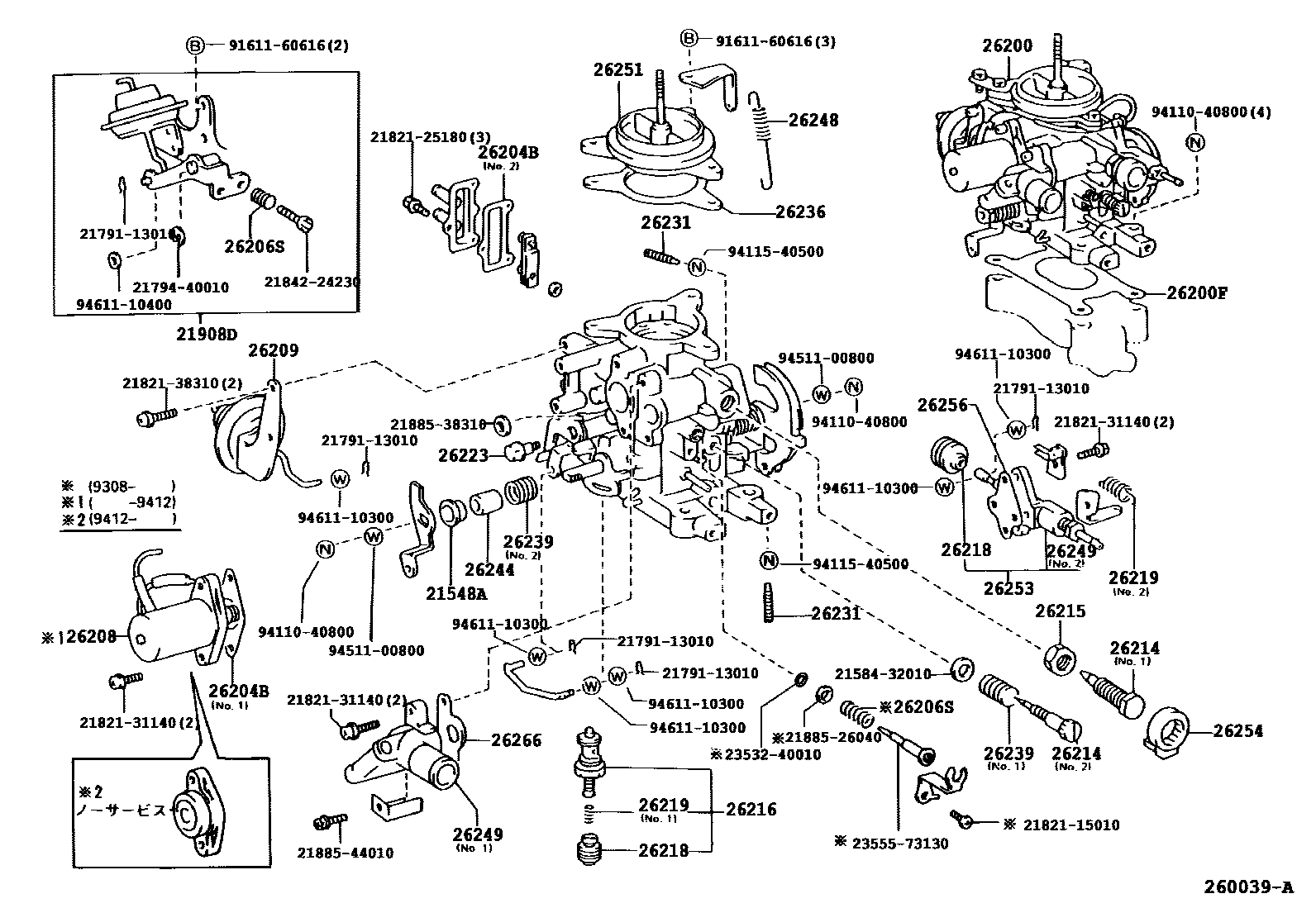

LPG CARBURETOR
21548ACOLLER, THROTTLE LEVER
21908DACTUATOR SUB-ASSY, IDLE-UP
26200CARBURETOR ASSY, LPG
26200FGASKET, CARBURETOR, NO.2
26204BGASKET, SOLENOID VALVE(FOR LPG)
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26208VALVE SUB-ASSY, SOLENOID
26209DIAPHRAGM SUB-ASSY(FOR LPG)
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26244COLLAR(FOR LPG CARBURETOR)
26248SPRING(FOR POWER VALVE CAM)
26249UNION, FUEL HOSE(FOR LPG)
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2158432010SHIM, CHOKE ROD BELLCRANK SHAFT
main21584-32010
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179440010RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
main21794-40010
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2184224230SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-24230
2188526040
main21885-26040
2188538310
main21885-38310
2188544010
main21885-44010
2353240010RING, O, NO.2(FOR BULB)
main23532-40010
2355573130SCREW, IDLE ADJUST
main23555-73130
9161160616
main91611-60616
9411040800
main94110-40800
9411540500
main94115-40500
9451100800
main94511-00800
9461110300
main94611-10300
9461110400
main94611-10400
44 parts on this diagram · 2 diagrams in section
