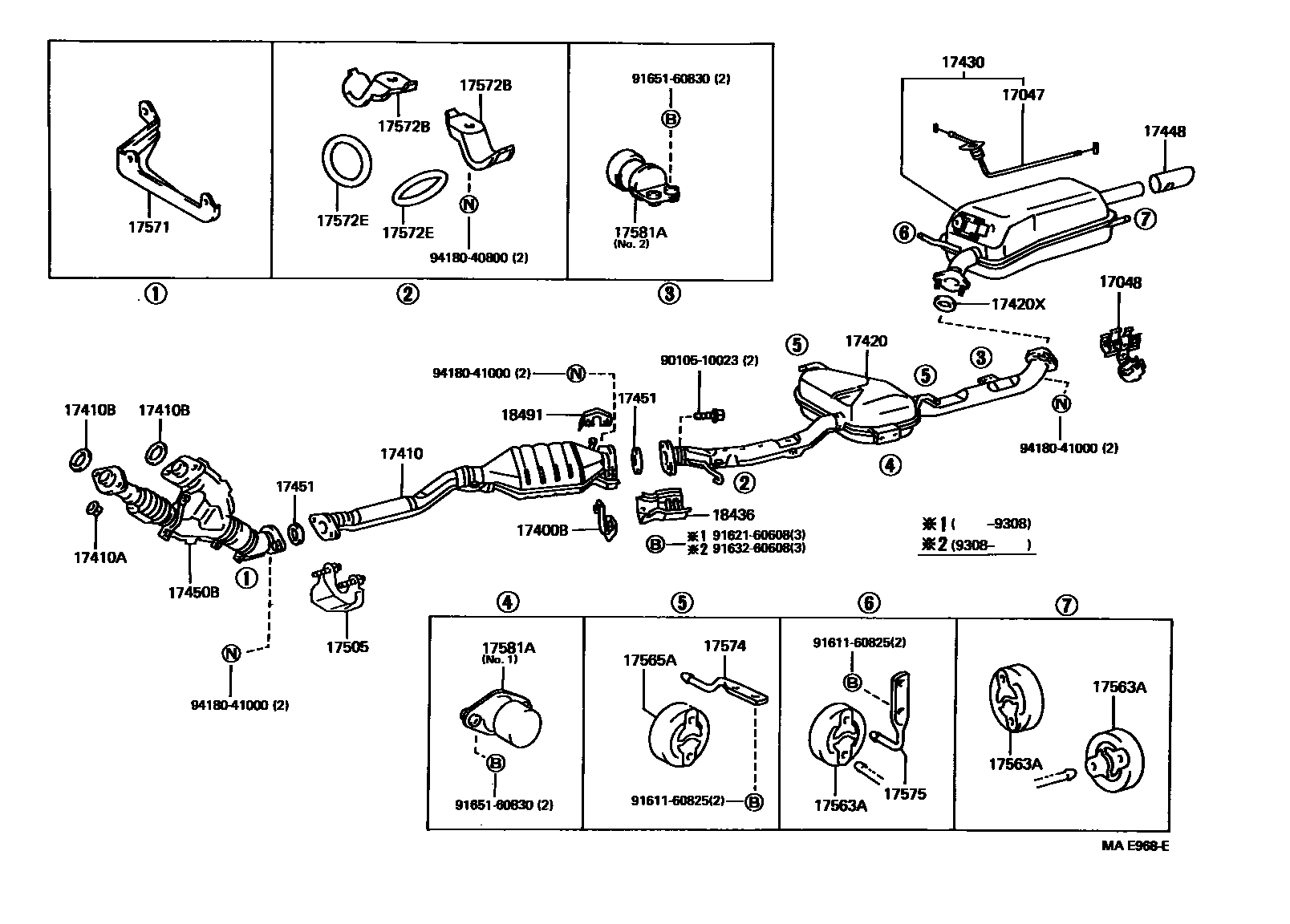

EXHAUST PIPE
17047CABLE SUB-ASSY, EXHAUST PIPE GAS CONTROL
17048CLAMP SUB-ASSY, EXHAUST PIPE GAS CONTROL CABLE
17400CONVERTER ASSY, W/CATALYST
17400BRETAINER, EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17448BAFFLE, TAILPIPE
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
17505INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17572ERING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17581ADAMPER, EXHAUST PIPE
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
18491FLANGE, THERMOSENSOR INLET
9010510023
main90105-10023
9161160825
main91611-60825
9162160608
main91621-60608
9163260608
main91632-60608
9165160830
main91651-60830
9418040800
main94180-40800
9418041000
main94180-41000
32 parts on this diagram · 9 diagrams in section
