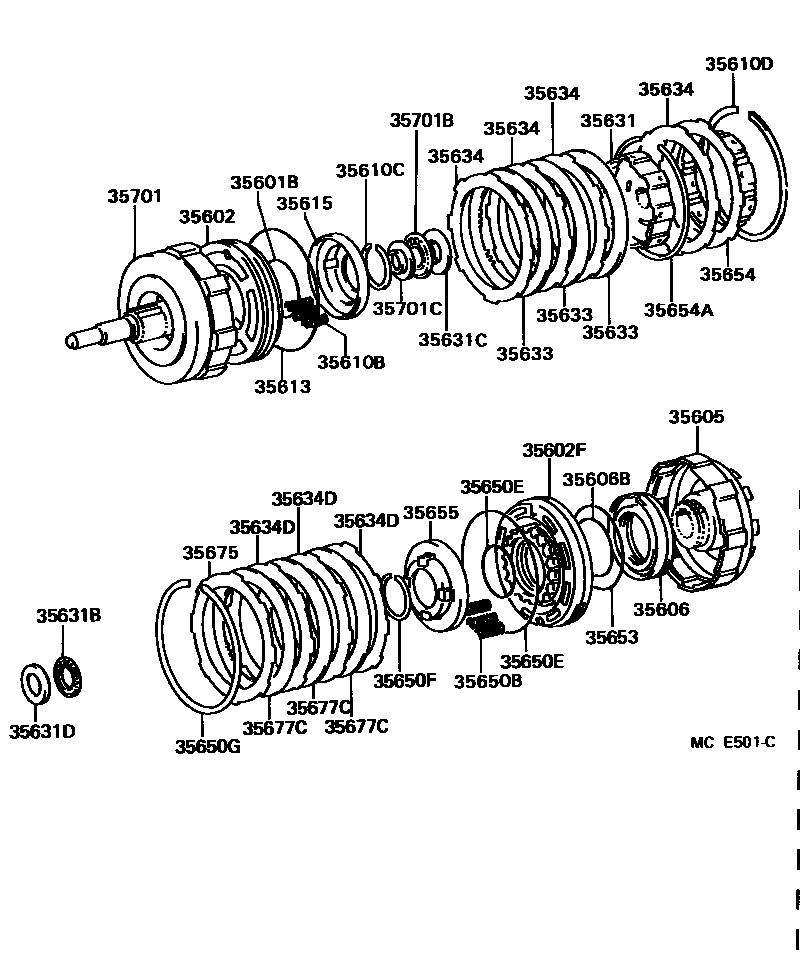

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-30042iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWC,TWLPG)199108-199110

main35602-30050iGS131..4FC..TWC198711-199108

main35602-30061iGS130,131..SPC;JZS13#,MS135,137198709-199110

main35602-50010iUZS131198908-198910

main35602-50011iUZS131198910-199110

35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2

main35602-30041iGS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TWC,TWLPG)198709-199110

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iGS131..4FC..TWC198709-199110

main35605-30021iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iGS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TWC,TWLPG)198709-199110

main35606-30021iLS130,131..TDE198709-199110

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-11023×20iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90520-99012iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWC,TWLPG)199109-199110

main90521-99139iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199109

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iGS130,131,LS130,MS130,YS130..ATM..(EFI,HTWC,LPG,TDE,TWC)198810-198908

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iGS130,131..ATM..(EFI,HTWC,TWC); LS13#,MS130,YS130..ATM198709-198908

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iGS130,131..ATM..(EFI,HTWC,TWC); LS13#,MS130,YS130..ATM198709-198908

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-24010×4iGS131..4FC..TWC198709-199110

main35677-30030×4iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)198709-199110

35634PLATE, FRONT CLUTCH

main35634-22040×3iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE); GS131..4FC..TWC198709-198711

main35634-30070iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWLPG); GS131..4FC..TWC199108-199110

main35634-30090iGS131..4FC..TWC198711-198908

main35634-30120iGS131..4FC..TWC198908-199108

35634DPLATE, REAR CLUTCH

main35634-22040×3iGS130,131,LS136..ATM..(DSL,EFI,HTWC)198709-199110

main35634-30070×3iGS131,LS130,MS130,YS130..ATM..(LPG,TDE,TWC)198709-198711

main35634-30090iGS131..4FC..TWC198908-199110

main35634-30120×2iGS131..4FC..TWC198908-199110

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671×18iGS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG)198709-198908

main90501-11023×18iGS131,LS130..4FC..(TDE,TWC)198709-198908

35650ERING, O (FOR REAR CLUTCH PISTON OUTER)

main90301-57188iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90301-99016iGS130,LS130..SED..ATM; GS130..WG..ATM..HTWC; GS131,YS130..ATM..(HTWC,LPEFI,TWC); LS130..SALEX; LS131,136..4FC198908-199110

35650FRING, SHAFT SNAP

main90520-39261iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90521-99139iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35654HUB, REAR CLUTCH

main35654-30010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99012iGS131..4FC..TWC198711-199108

main90521-99146iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC)198709-198711

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

35675FLANGE, REAR CLUTCH

main35675-22010iGS130,131,LS136..ATM..(DSL,EFI,HTWC,TWC)198709-198908

main35675-30020iGS131..4FC..TWC198709-199110

main35675-30030iGS130,LS130,YS130..SED..ATM..(LPEFI,TDE,TWLPG); GS131,LS131..4FC..(TDE,TWC); LS130..SALEX198908-199110

35677CDISC, REAR CLUTCH

main35677-30030×3iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709

35701SHAFT SUB-ASSY, INPUT

main35701-22050iGS130,131..SPC;JZS13#,MS135,137198810-199110

main35701-30042iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWC,TWLPG)199108-199109

main35701-30043iGS130,131,LS13#,YS130..ATM..(DSL,HTWC,LPEFI,TDE,TWC,TWLPG)199109-199110

main35701-30050iGS131..4FC..TWC198711-199108

main35701-30062iMS135,137;GS130,131..SPC198709-198810

main35701-50010iUZS131198908-199110

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iLS13#,MS130,YS130..ATM198709-198812

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35789-30110iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

31 parts on this diagram · 5 diagrams in section
