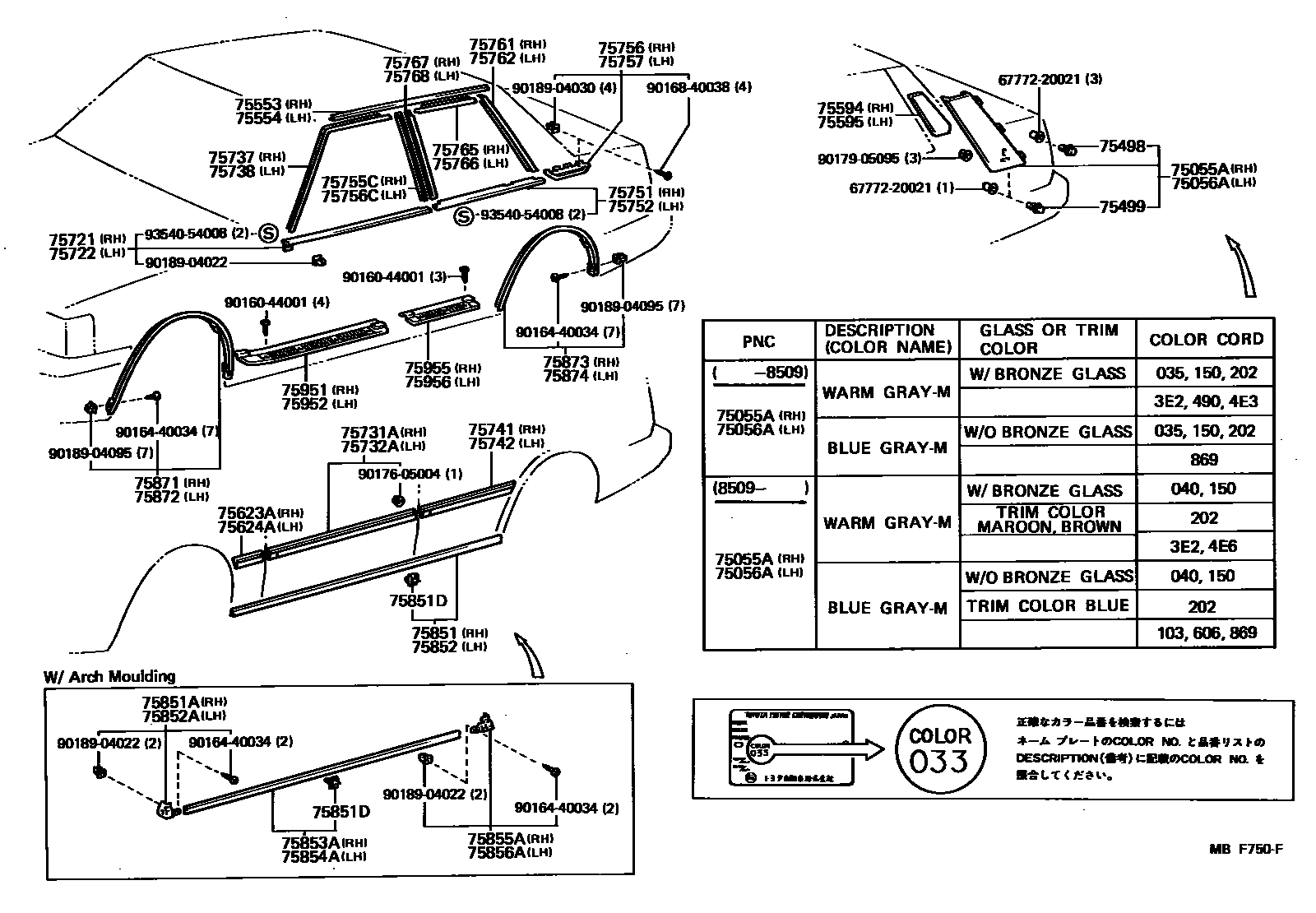

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1

75055AGARNISH SUB-ASSY, QUARTER, OUTER RH

main75055-30070iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main75055-30080-03iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198509

WARM GRAY-M,GRAY,035 ,150 ,202 ,3E2 ,490 ,4E3

main75055-30080-04iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198509

BLUE GRAY-M,BLUE,035 ,150 ,202 ,869

main75055-30081-23iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198509-198708

WARM GRAY-M,WARM GRAY METALLIC,040 ,150 ,202 ,3E2 ,4E6

main75055-30081-33iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC,040 ,150 ,202 ,103 ,606 ,869

main75055-30120-03iGS120,121,LS120,MS12#..HT198308-198509

WARM GRAY-M,GRAY,202 ,3E2 ,490

main75055-30120-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE GRAY-M,BLUE,202 ,869

main75055-30120-08iMS125..HT..4FC198501-198509

THE 30TH LIMITED,WHITE MICA,WHITE MICA

main75055-30120-13iGS120,121,LS120,MS12#..HT198308-198708

SILVER HI-M,GRAY,035 ,040 ,150 ,4E3 ,4E6 ,2R5 ,2U5

main75055-30120-23iGS120,121,LS120,MS125..HT198509-198708

WARM GRAY-M,WARM GRAY METALLIC,202 ,3E2 ,29D

main75055-30120-33iGS120,121,LS120,MS125..HT198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC,202 ,869

75056AGARNISH SUB-ASSY, QUARTER, OUTER LH

main75056-30060iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main75056-30070-03iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198509

WARM GRAY-M,GRAY,035 ,150 ,202 ,3E2 ,490 ,4E3

main75056-30070-04iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198509

BLUE GRAY-M,BLUE,035 ,150 ,202 ,869

main75056-30071-23iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198509-198708

WARM GRAY-M,WARM GRAY METALLIC,040 ,150 ,202 ,3E2 ,4E6

main75056-30071-33iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC,040 ,150 ,202 ,103 ,606 ,869

main75056-30080-03iGS120,121,LS120,MS12#..HT198308-198509

WARM GRAY-M,GRAY,202 ,3E2 ,490

main75056-30080-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE GRAY-M,BLUE,202 ,869

main75056-30080-08iMS125..HT..4FC198501-198509

THE 30TH LIMITED,WHITE MICA,WHITE MICA

main75056-30080-13iGS120,121,LS120,MS12#..HT198308-198708

SILVER HI-M,GRAY,035 ,040 ,150 ,4E3 ,4E6 ,2R5 ,2U5

main75056-30080-23iGS120,121,LS120,MS125..HT198509-198708

WARM GRAY-M,WARM GRAY METALLIC,202 ,3E2 ,29D

main75056-30080-33iGS120,121,LS120,MS125..HT198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC,202 ,869

75498CLIP, QUARTER GARNISH, NO.1

main75498-30010×6iGS120,121,LS120,MS12#,YS120..SED198308-198708

75499CLIP, QUARTER GARNISH, NO.2

main75499-30020×2iGS120,121,LS120,MS12#,YS120..SED198308-198708

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30180iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main75551-30190iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198708

main75551-30200iGS120,121,LS120,MS12#..HT198308-198708

main75551-91704iGS120,LS120..WG198308-198708

main75551-91705iGS126,LS126198308-198708

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30180iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main75552-30190iGS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)198308-198708

main75552-30200iGS120,121,LS120,MS12#..HT198308-198708

main75552-91704iGS126,LS126198308-198708

main75552-91705iGS120,LS120..WG198308-198708

75594PAD, QUARTER GARNISH, RH

main75594-30020iGS120,121,LS120,MS12#,YS120..HT,SED198308-198410

NO.1

main75594-30030iGS120,121,LS120,MS12#,YS120..HT,SED198410-198510

NO.1

main75594-30040iGS120,121,LS120,MS12#..HT198408-198708

NO.2

75595PAD, QUARTER GARNISH, LH

main75594-30020iGS120,121,LS120,MS12#,YS120..HT,SED198308-198410

NO.1

main75594-30030iGS120,121,LS120,MS12#,YS120..HT,SED198410-198510

NO.1

main75595-30030iGS120,121,LS120,MS12#..HT198408-198708

NO.2

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-30140iGS120,121,LS120,MS120..(SED,WG)..(ROY,SAL,SDX)198308-198509

main75623-30150iMS123,125..SED198308-198708

main75623-30160iMS123,125..HT198308-198708

main75623-30170iGS120,121,LS120,MS120..HT198308-198509

main75623-30180iGS120,121,LS120..HT198509-198708

main75623-30190iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75623-91701iGS120,LS120..WG198509-198708

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-30140iGS120,121,LS120,MS120..SED..(ROY,SAL,SDX)198509-198708

main75624-30150iMS123,125..SED198308-198708

main75624-30160iMS123,125..HT198308-198708

main75624-30170iGS120,121,LS120,MS120..HT198308-198509

main75624-30180iGS120,121,LS120..HT198509-198708

main75624-30190iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75624-91701iGS120,LS120..WG198509-198708

75721MOULDING, FRONT DOOR BELT, RH

main75710-30191iGS120,121,LS120,MS125..HT198509-198708

main75710-30200iGS120,121,LS120,MS12#..HT198408-198509

W/*DM

main75710-30201iGS120,121,LS120,MS125..HT198509-198708

W/*DM

main75710-39085iGS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)198308-198708

main75710-39095iGS120,LS120..WG198308-198708

W/*DM

main75710-39105iGS120,121,LS120,MS12#..HT198408-198509

75722MOULDING, FRONT DOOR BELT, LH

main75720-30191iGS120,121,LS120,MS125..HT198509-198708

main75720-30200iGS120,121,LS120,MS12#..HT198408-198509

W/*DM

main75720-30201iGS120,121,LS120,MS125..HT198509-198708

W/*DM

main75720-39085iGS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)198308-198708

main75720-39095iGS120,LS120..WG198308-198708

W/*DM

main75720-39105iGS120,121,LS120,MS12#..HT198308-198408

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-30270iGS120,121,LS120..HT198509-198708

main75731-30280iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75731-39015iGS120,121,LS120,MS120..SED..(ROY,SAL,SDX)198509-198708

main75731-39025iMS123,125..SED198308-198708

main75731-39035iMS123,125..HT198308-198708

main75731-39045iGS120,121,LS120,MS120..HT198308-198509

main75731-91701iGS120,LS120..WG198509-198708

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-30260iGS120,121,LS120..HT198509-198708

main75732-30270iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75732-39015iGS120,121,LS120,MS120..SED..(ROY,SAL,SDX)198509-198708

main75732-39025iMS123,125..SED198308-198708

main75732-39035iMS123,125..HT198308-198708

main75732-39045iGS120,121,LS120,MS120..HT198308-198509

main75732-91701iGS120,LS120..WG198509-198708

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-30130iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-30120iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-30260iGS120,121,LS120,MS120..(SED,WG)..(ROY,SAL,SDX)198308-198509

main75741-30270iMS123,125..SED198308-198708

main75741-30280iMS123,125..HT198308-198708

main75741-30290iGS120,121,LS120,MS120..HT198308-198509

main75741-30300iGS120,121,LS120..HT198509-198708

main75741-30310iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75741-91701iGS120,LS120..WG198509-198708

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-30220iGS120,121,LS120,MS120..(SED,WG)..(ROY,SAL,SDX)198308-198509

main75742-30230iMS123,125..SED198308-198708

main75742-30240iMS123,125..HT198308-198708

main75742-30250iGS120,121,LS120,MS120..HT198308-198509

main75742-30260iGS120,121,LS120..HT198509-198708

main75742-30270iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH

main75742-91701iGS120,LS120..WG198509-198708

75751MOULDING, REAR DOOR BELT, RH

main75730-30080iGS120,121,LS120,MS12#..HT198308-198509

main75730-30081iGS120,121,LS120,MS125..HT198509-198708

main75730-39045iGS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)198308-198708

75752MOULDING, REAR DOOR BELT, LH

main75740-30130iGS120,121,LS120,MS12#..HT198308-198509

main75740-30131iGS120,121,LS120,MS125..HT198509-198708

main75740-39045iGS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)198308-198708

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30080iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75756MOULDING, QUARTER BELT, RH

main75660-91701iGS120,LS120..WG198308-198708

main75671-39015iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30070iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75757MOULDING, QUARTER BELT, LH

main75670-91701iGS120,LS120..WG198308-198708

main75672-39015iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-30090iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

main75765-91701iGS120,LS120..WG..SAL198308-198708

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-30090iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

main75766-91701iGS120,LS120..WG..SAL198308-198708

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30050iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

main75763-91701iGS120,LS120..WG..SAL198308-198708

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30050iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

main75764-91701iGS120,LS120..WG..SAL198308-198708

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30070iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30070iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198708

75851MOULDING, ROCKER PANEL, RH

main75850-30080iGS120,LS120,MS120,YS120..DLX; GS126..SDX198308-198708

75851AMOULDING, ROCKER PANEL, FRONT RH

main75856-39035iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-30030×14iGS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL; GS126..SDX198308-198708

75852MOULDING, ROCKER PANEL, LH

main75850-30080iGS120,LS120,MS120,YS120..DLX; GS126..SDX198401-198708

main75860-30070iGS120,LS120,MS120,YS120..DLX; GS126..SDX198308-198401

75852AMOULDING, ROCKER PANEL, FRONT LH

main75855-39035iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75853AMOULDING, ROCKER PANEL, CENTER RH

main75853-30080iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75854AMOULDING, ROCKER PANEL, CENTER LH

main75854-30040iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-39035iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-39035iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-39055iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-39055iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198308-198708

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-39055iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198308-198708

main75873-39065iGS120,LS120..WG198308-198708

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-39055iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198308-198708

main75874-39065iGS120,LS120..WG198308-198708

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-30150-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67913-30150-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

main67913-30150-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

main67913-30150-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL); GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main67913-30150-12iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-30160-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67914-30160-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

main67914-30160-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

main67914-30160-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL); GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main67914-30160-12iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-30100-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67917-30100-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

main67917-30100-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

main67917-30100-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL); GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main67917-30100-12iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67917-30100-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main67917-30100-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

main67917-30100-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

main67917-30100-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL); GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main67917-30100-12iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016044001

main90160-44001

9016440034

main90164-40034

9016840038

main90168-40038

9017605004

main90176-05004

9017905095

main90179-05095

9018904022

main90189-04022

9018904030

main90189-04030

9018904095

main90189-04095

9354054008

main93540-54008

57 parts on this diagram · 4 diagrams in section
